Chapter 4 — Battery Information 4-2 Battery Pack Removal and Replacement
MS2720T MM PN: 10580-00342 Rev. D 4-3
3. Remove the battery access door as shown Figure 4-3.
4. With the battery access door completely removed, grasp the battery lanyard and pull the battery straight
out of the unit, as illustrated in Figure 4-4.

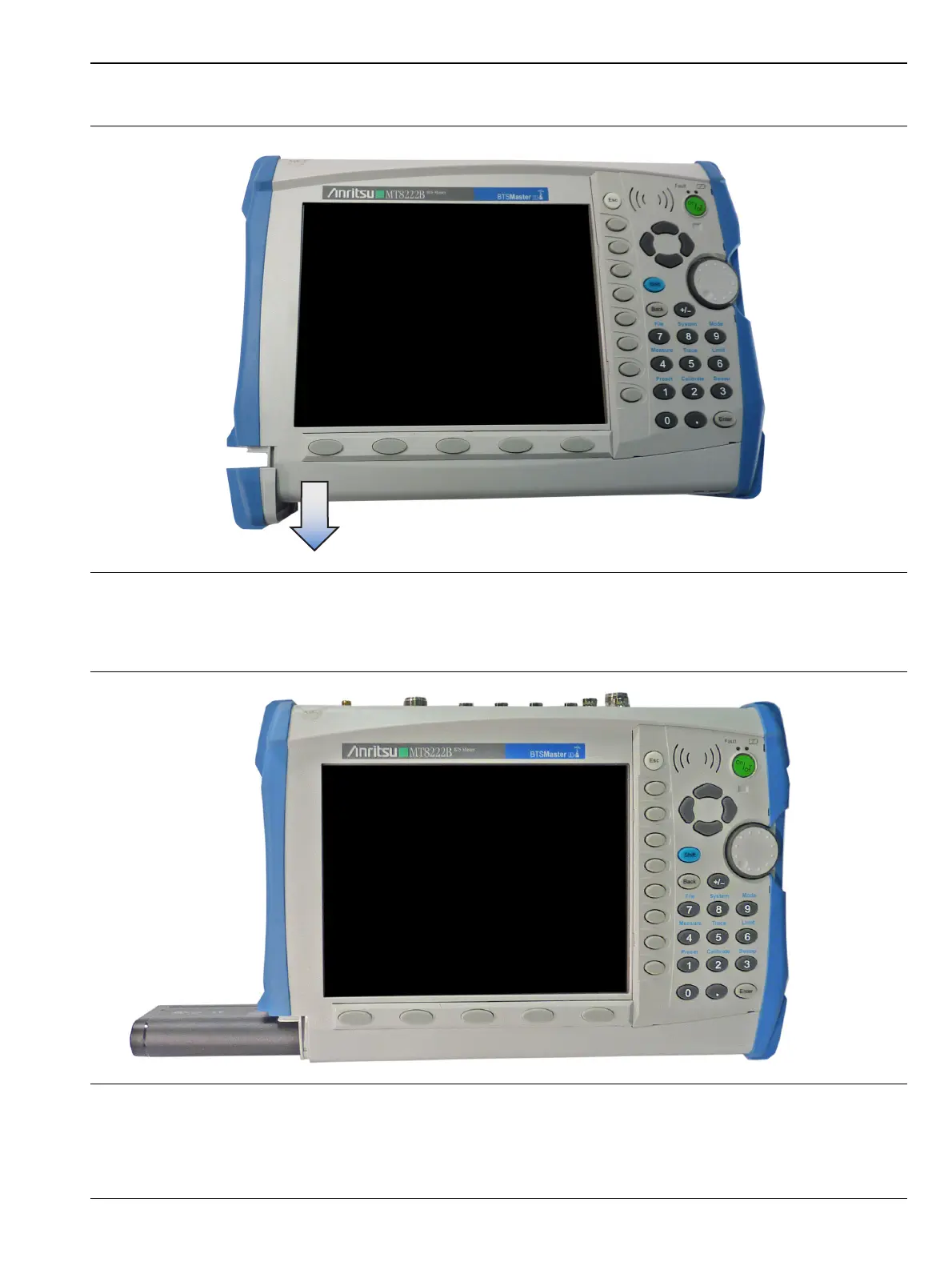

Figure 4-3. Removing the Battery Access Door
Figure 4-4. Removing the Battery
Slide Battery Access Door
Down and Remove.
