Anritsu Spectrum Master MS2720T Maintenance Manual

2-8 Absolute Amplitude Accuracy Verification Chapter 2 — Spectrum Analyzer Verification
2-14 PN: 10580-00342 Rev. D MS2720T MM
2-8 Absolute Amplitude Accuracy Verification
The tests in the following two sections verify the absolute amplitude accuracy of the Spectrum Analyzer in the
MS2720T Spectrum Master. The two parts of this test are “50 MHz Amplitude Accuracy Verification”
immediately below and “Amplitude Accuracy Across Frequency Verification” on page 2-17.
50 MHz Amplitude Accuracy Verification
Equipment Required for MS2720T with option 709, 713 or 720
• Anritsu MG3692x Synthesized Signal Generator (see equipment list for required options)
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• (2) Power Sensor, Anritsu Model SC7400
• Power Splitter, Aeroflex/Weinschel Model 1870A
• Fixed Attenuator, Aeroflex/Weinschel Model 4410
• (2) Adapter, Anritsu Model 34NN50A
• Coaxial Cable, BNC(m) to BNC(m), 50 ohm
• RF Coaxial Cable, N(m) to N(f), Anritsu Model 15NNF50-1.5C
Setup

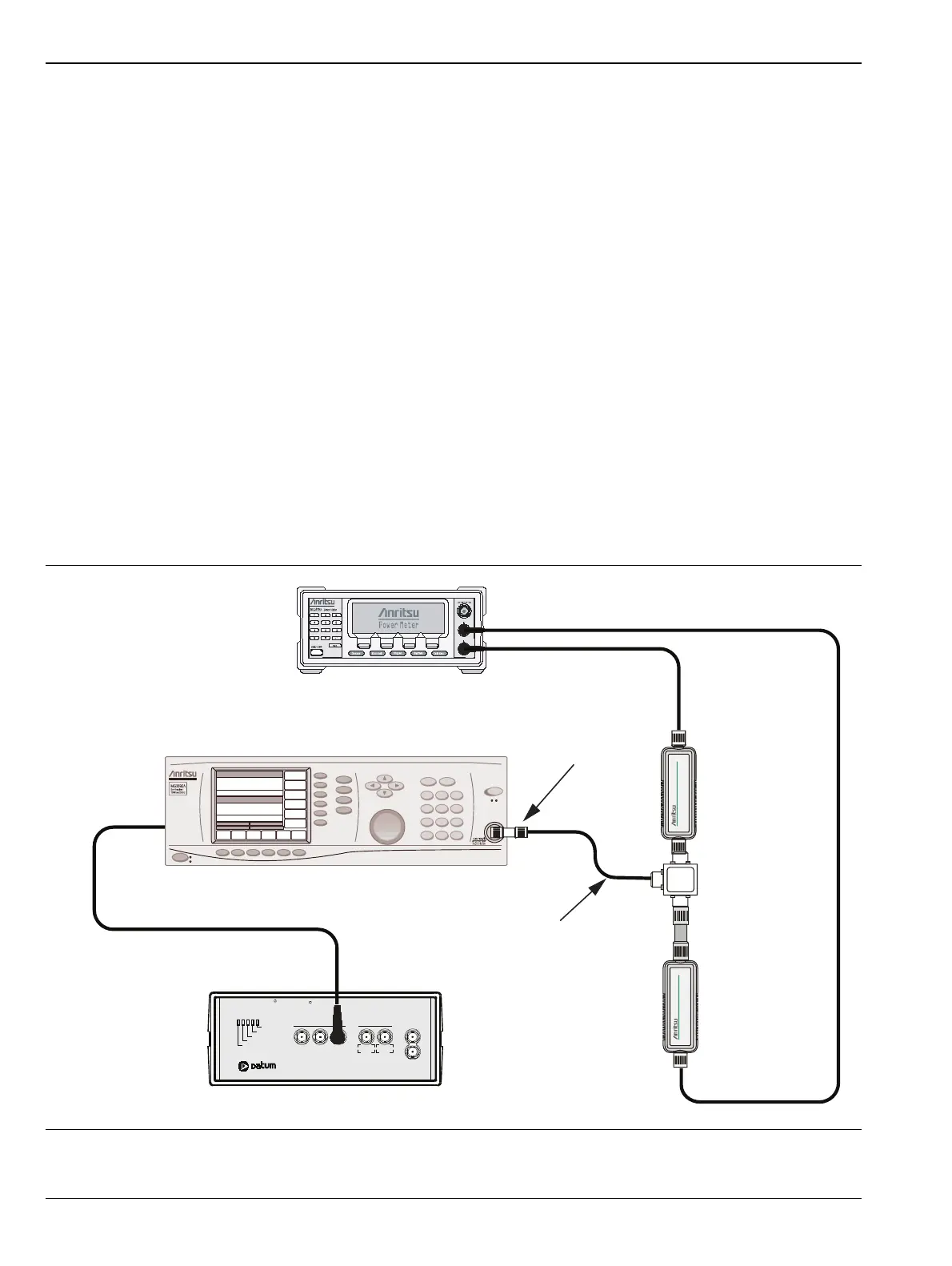

Figure 2-2. 50 MHz Amplitude Accuracy Verification for Models with N Connectors
MG3692x Signal General
ML2438A Power Meter
Sensor A
Sensor B
1870A
Power Splitter
10 dB
Attenuator
Adapter
15NNF50-1.5B
10 MHz Reference
Oscillator Warmup
Oscillator Ready
Failure
1 PPS Sync
1 PPS OUT
1 MH z 5 MH z 10 M H
5 MHz 10 MHz
Sine wave Out AUX
1 PPS IN
Power
TESTIME
PLUS
R
RubiSource T&M
R
Ext Ref In
(back panel)
10 MHz
Sine Out
