Chapter 2 —Fixed WiMAX Signal Analyzer 2-5 Fixed WiMAX Demodulator
WiMAX MG PN: 10580-00236 Rev. D 2-13
Modulation Summary
The Modulation Summary displays the critical Modulation transmitter performance
measurements in a table format by demodulating the WiMAX signal. The numerical results
that are displayed in the Modulation summary table are: RCE (rms) in dB, RCE (pk) in dB,
EVM (rms) in %, EVM (pk) in %, Freq Error in Hz, Freq Error in ppm, Carrier Frequency
in Hz, Base Station ID.
Procedure:
1. Setup the measurement as described in “Setup for Fixed WiMAX Demodulator
Measurements” on page 2-8.
2. Press the Measurements main menu key.
3. Press the Demodulator submenu key.
4. Press the Modulation Summary submenu key to activate the measurement. The sample
image in Figure 2-9 may differ from any image on your instrument.

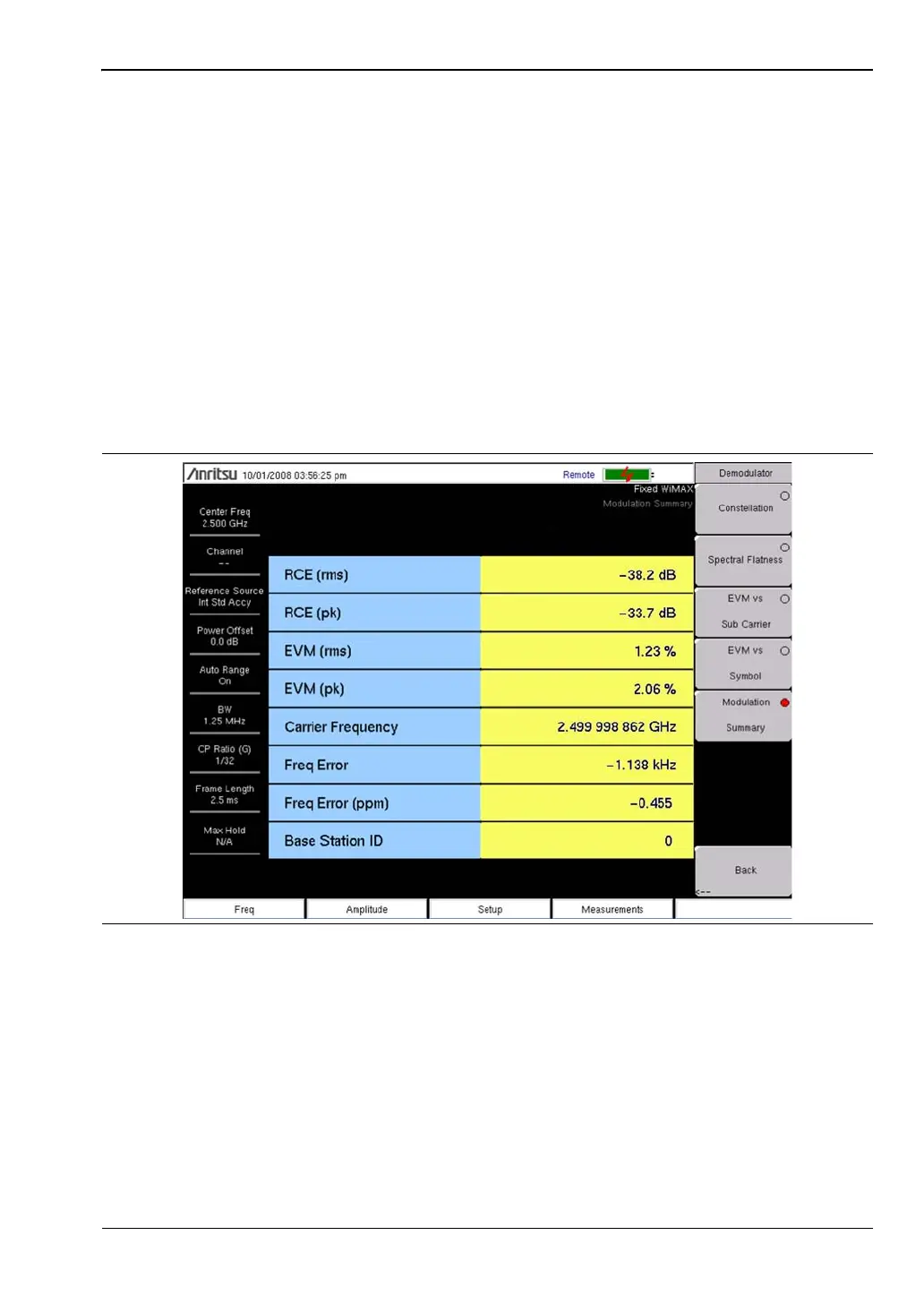

Figure 2-9. Fixed WiMAX Modulation Summary
