2-5 Fixed WiMAX Demodulator Chapter 2 —Fixed WiMAX Signal Analyzer
2-14 PN: 10580-00236 Rev. D WiMAX MG
Pass/Fail Mode
The Pass/Fail mode allows selection of a user-defined file that specifies a list of
measurements with Pass/Fail criteria. This mode sequences through the appropriate
measurements and indicates a pass or fail state based on the criteria. By using Master
Software Tools, a custom test list can be created and uploaded into the instrument. All critical
measurements can be selected for pass fail testing. The results are displayed in a table format
with clear identification of Pass/Fail results, including minimum and maximum thresholds
and measured results.
Procedure:
1. Setup the measurement as described in “Setup for Fixed WiMAX Demodulator
Measurements” on page 2-8.
2. Press the Measurements main menu key.
3. Press the Pass/Fail Mode submenu key.
4. Press the Pass/Fail Mode submenu key again to activate the submenu.
5. Press the Select Pass/Fail Test submenu key to view a list of Pass/Fail test definition
files.
6. Use the Up/Down arrow keys or the rotary knob to highlight the applicable Pass/Fail
test on the list, and press the Enter key to select.
The sample image in Figure 2-10 may differ from any image on your instrument.

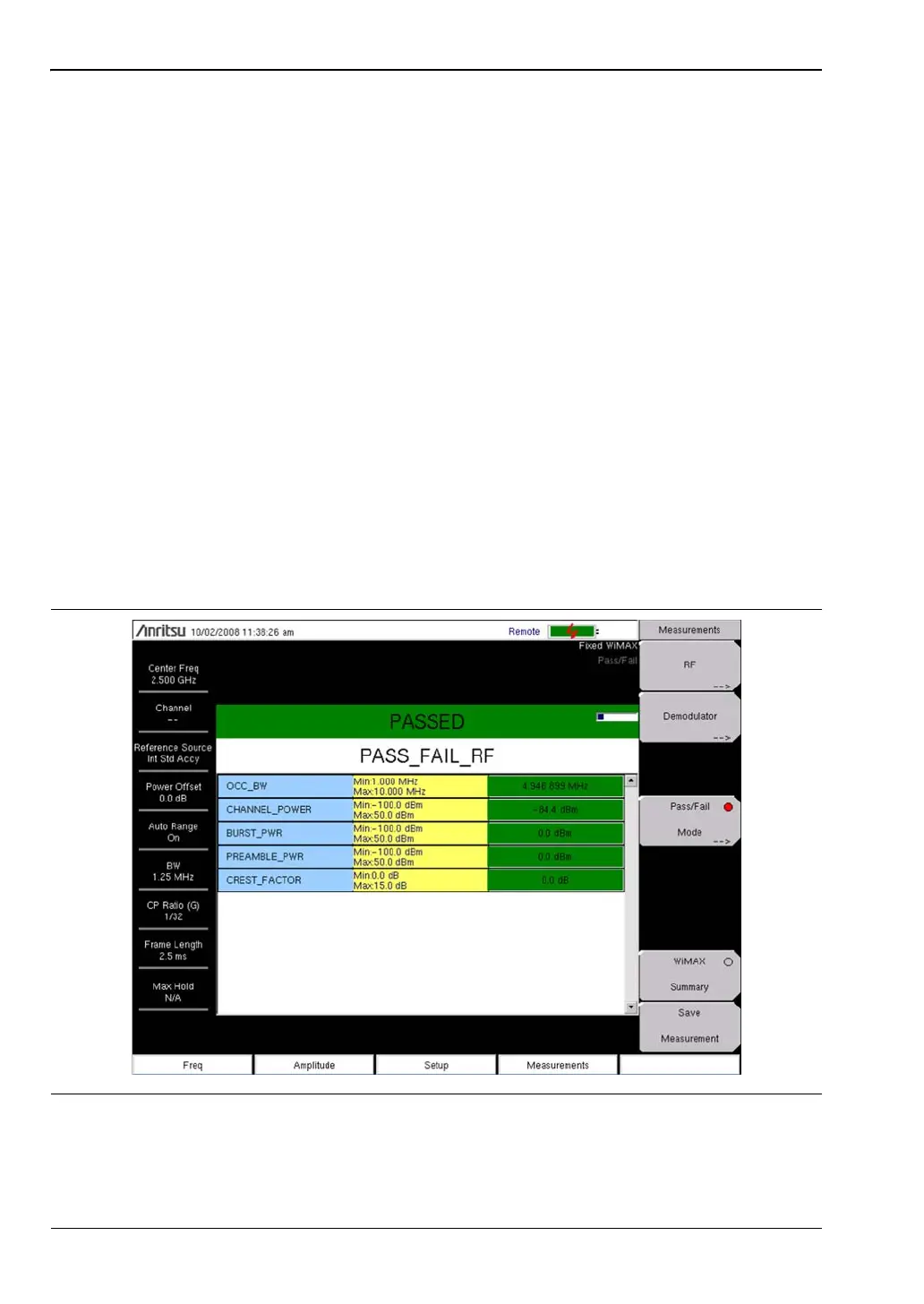

Figure 2-10. Pass Fail Mode
