Chapter 2 —Fixed WiMAX Signal Analyzer 2-5 Fixed WiMAX Demodulator
WiMAX MG PN: 10580-00236 Rev. D 2-15
WiMAX Summary
The WiMAX Summary is a summary list of critical Fixed WiMAX measurements from the
RF and Demodulation measurements.
Procedure:
1. Setup the measurement as described in “Setup for Fixed WiMAX Demodulator
Measurements” on page 2-8.
2. Press the Measurements main menu key.
3. Press the WiMAX Summary submenu key. The sample image in Figure 2-11 may differ
from any image on your instrument.

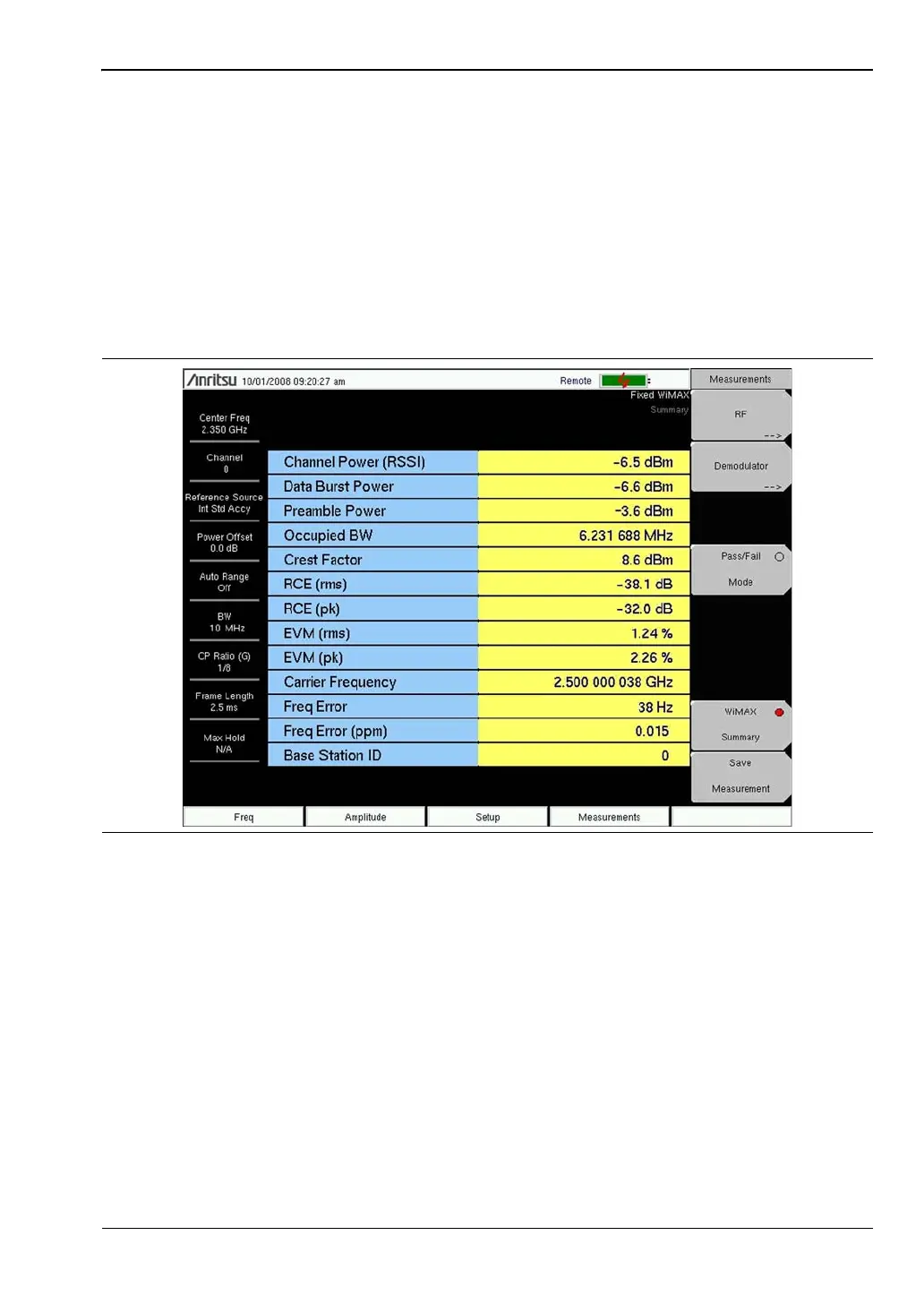

Figure 2-11. WiMAX Summary
