16

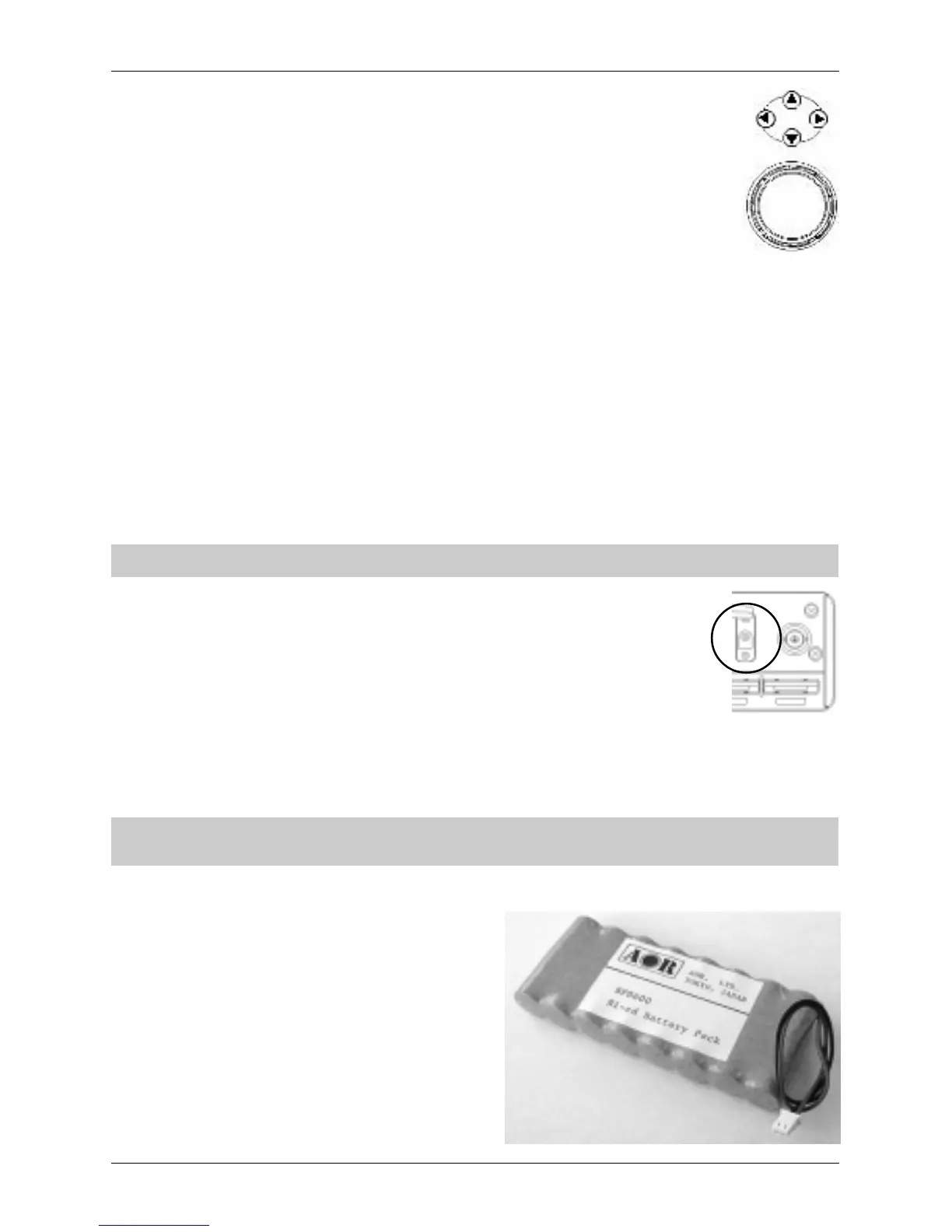

ARROW KEYS
The arrow keys ïðñò are laid out as a group of four keys (up, down, left and right).
This format is particularly convenient being placed directly above the main dial.
ð
The right arrow key is used as a backspace when entering frequency via the keypad.
Also selects bank in memory read mode, moves the cursor position (especially during
text input), tunes the receiver and changes values in menus.
ï
The left arrow key selects bank in memory read mode, moves the cursor position (especially during text
input), tunes the receiver and changes values in menus.
ñ
The up arrow key increments to next memory channel in memory read mode, tunes the receiver in VFO
mode, selects menu items, changes values in on-screen menus and forces scan & search to resume
when stopped on a busy channel.
ò
The down arrow key increments memory channel in memory read mode, tunes the receiver in VFO
mode, selects menu items, changes values in on-screen menus and forces scan & search to resume
when stopped on a busy channel.
&Note: Ensure that the arrow keys are operated cleanly and one at a time.
1-6 Power supply
The AR8600 is designed for operation using a good quality regulated d.c. supply of 12
to 14V, which should be capable of supplying 1A. Never connect the AR8600 directly
to the a.c. supply.
The d.c. input socket uses a mini 2.1mm power connector. This connector is configured CENTRE
POSITIVE, the chassis of the receiver is at negative ground. If a power supply has been provided with
the AR8600 (depending upon world market area), it is pre-wired and provides a nominal 12V d.c. output
with suitable connectors being fitted as standard for the a.c. power input and connection to the AR8600.
&SAFETY NOTICE - Always disconnect the power supply from the a.c. socket when
not in use.
1-6-1 Optional internal battery
(BP8600)
The AR8600 has the provision for fitting a dedicated
internal NiCad rechargeable battery pack BP8600.
This pack comprises of 8 x AA NiCad high capacity
700mAhr sealed in a shroud with suitable connecting
cable and plug. The BP8600 is primarily intended for
emergency use or for applications away from an
alternative power supply. Fitting and removal of the
optional BP8600 is recommended to be carried out in
a workshop... once fitted, the batteries must be used
Section 1-5-3, 1-6, 1-6-1
