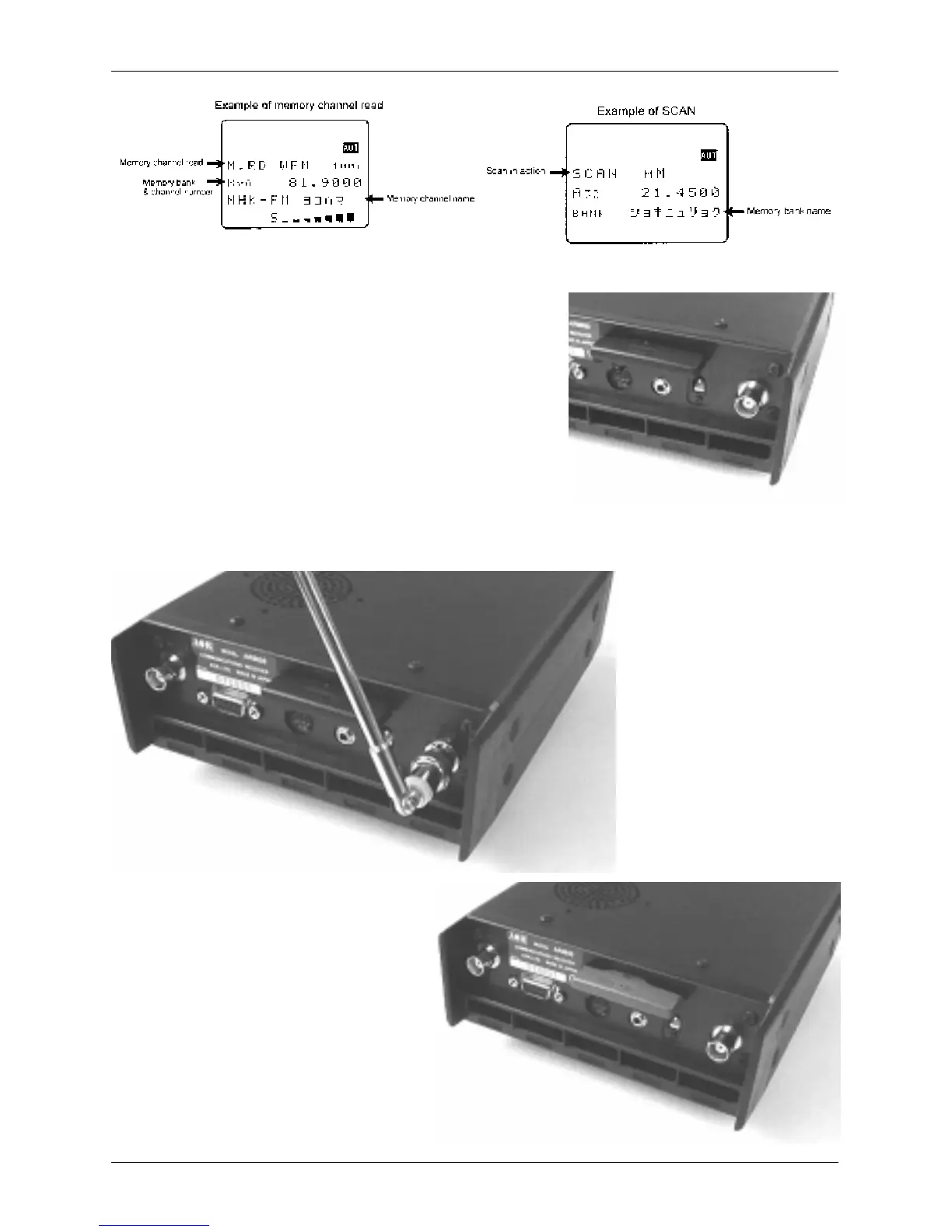

2-2 Connect the aerial (antenna)
Two aerials are supplied with the AR8600:
l BNC mounted whip aerial with swivel
l BC ANT - MW bar aerial
For general reception on the VHF/UHF bands, connect the
supplied whip aerial to the BNC socket on the rear panel of
AR8600. This is a bayonet connector, line up the slots, press
down firmly and twist clockwise, the guides will position, then let go.
Position the right-angle and swivel for the most convenient position with the whip
generally pointing upward. A different (external) aerial can easily be fitted once you have
established that the AR8600 is operating correctly and you are familiar with operation.
If you wish to monitor MW (Medium Wave bands), plug in the BC ANT - MW bar aerial. The BC ANT
slot is located centrally on the
rear panel. With the ‘AOR’
logo of the BC ANT facing
upward, insert the aerial into
the slot, no force
is required... if you feel
resistance, you are probably
trying to insert it upside-down!
The BC ANT is asymmetrical.
With the longer arm of the bar facing
to the right (grooves to the bottom).
If you really press very hard, it is
possible to force the connector in
backwards... the BC ANT will not operate
if connected backwards!
2-3 Connect power
Connect the power to the AR8600 d.c.
socket as detailed in
section 1-6
of this
manual. Either a regulated d.c. power
supply 12 - 14V with capacity of 1A may be
used or a suitable connection to a vehicle
cigar lighter plug, do not connect to a 24V
system such as a HGV. If the optional
BP8600 battery is fitted, refer to
section
1-6-1
of this manual.
Section 2-1, 2-2, 2-3
