Octave Configuration Guide 11
• Flow Rate: BPM - Volume: Barrel
• Flow Rate: Lt / m - Volume: m
3
Refer to the Glossary for unfamiliar abbreviations.
Update Modules Units - select this check box to synchronize the units of the
meter’s connected module output to the units set for the meter’s display.
Volume resolution (Digits) - set the display resolution, which is the number of
digits after the decimal point. The maximum value is “5”.

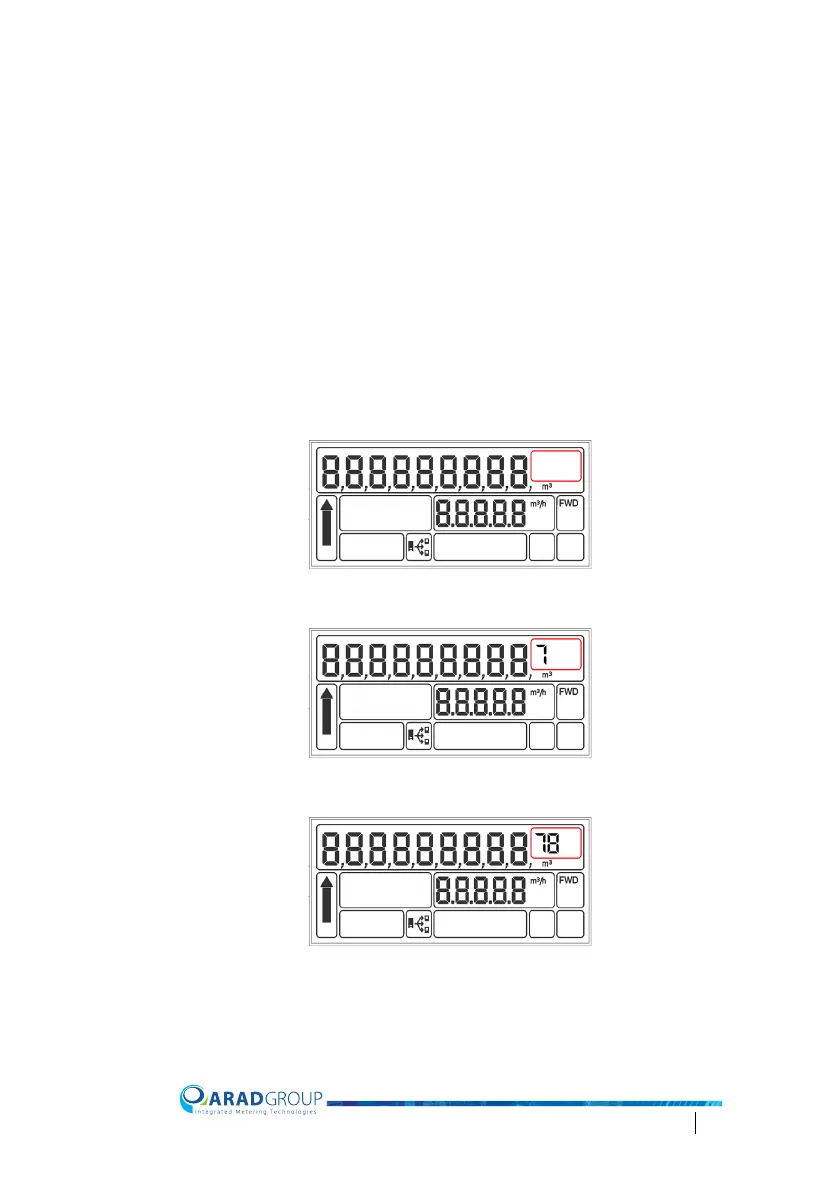

In the following examples we show you how 789 liters (cubic meters) are
presented per the value you enter in this field.
Entering “0” uses a 1000 liter resolution, therefore as 789 is less than 1000
liters nothing will be shown in the display:
Entering “1” uses a 100 liter resolution, and as there are 7 hundreds in 789
liters, “7” will be shown in the display:
Entering “2” uses a 10 liter resolution, and as there are 78 tens in 789 liters,
“78” will be shown in the display:
