Octave Configuration Guide 38
Width (ms) – set the width of the pulse in milliseconds. This will communicate a
pulse for each passed width count.
For example, if you have set the resolution to 1 liter per pulse and the pumping
flow rate is 3.6 cubes per hour, the result will be one pulse per second. The
calculation is the total liters divided to the number of minutes, divided to the
number of seconds in a minute:

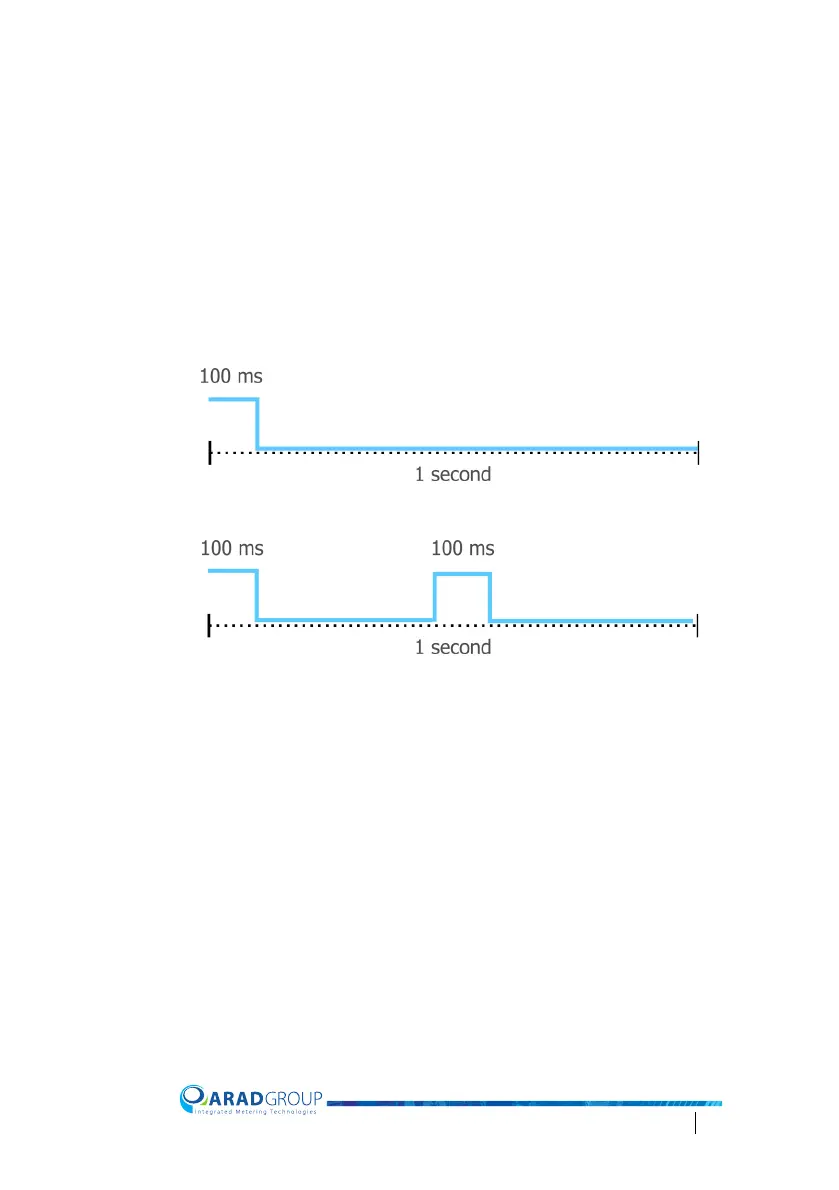

This is how a pulse with a 100 ms width would look like in that context:
If the velocity was twice a
s much (7.2 m
3
/h), two pulses would fit in one second:
3600 60
60
--------------------------
