EN – 71

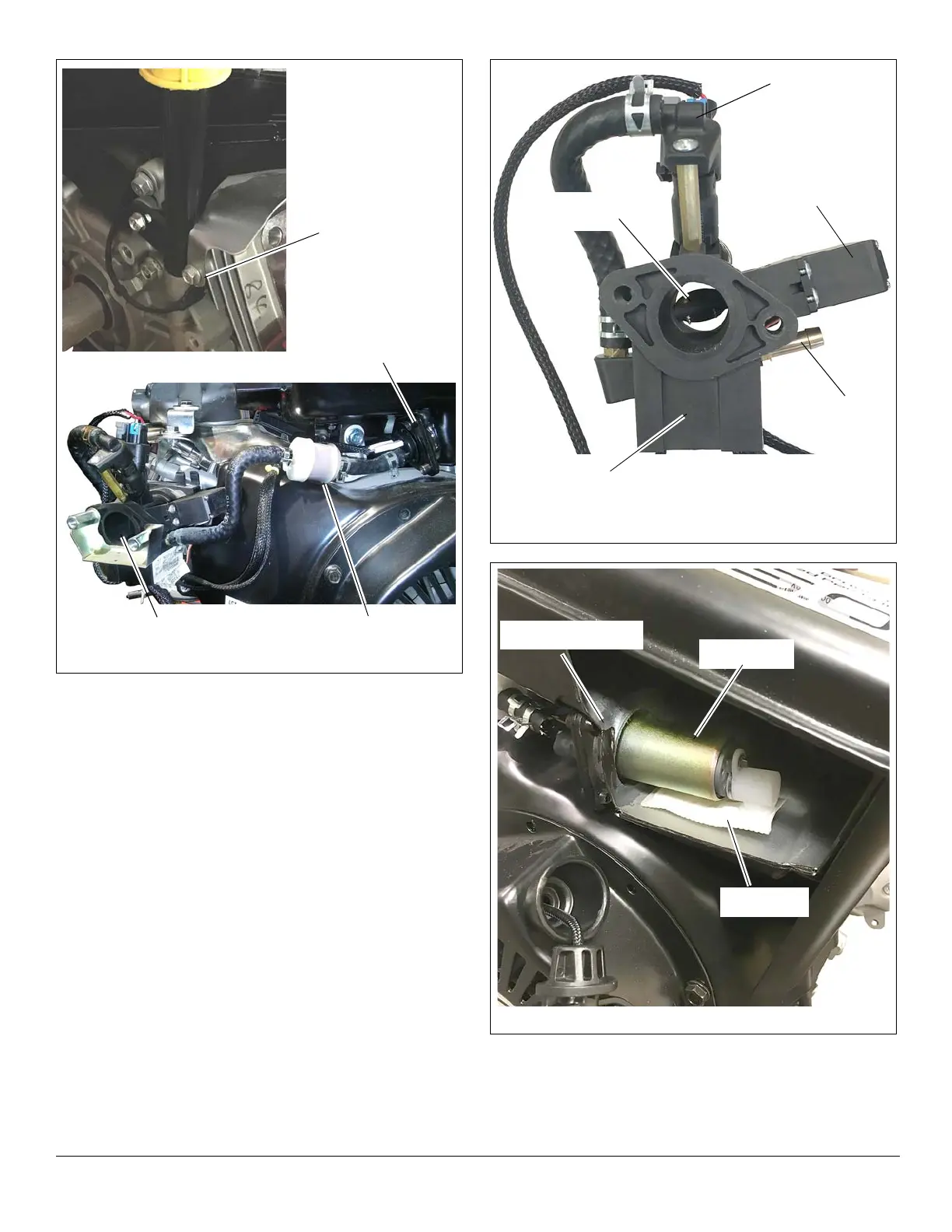

*Throttle body assembly consists of fuel injector, fuel
pressure sensor and servo-operated throttle plate. See
Figure 4.
Figure 180
Throttle Body Assembly*
Fuel Pump With
Internal Filter
Engine
Temperature
Sensor
Inline Fuel Filter
Figure 181
Fuel Inlet
Fuel Pressure
Sensor (Internal)
Servo Motor
Servo-Operated
Throttle Plate
Fuel Injector
Figure 182
Fuel Pump
Sealing O-Ring
Pre-Filter
