2.8. Fill up of a cable gland of MAGX2 IP68 housing
Fit MAGX2 IP68 housing with standard round cross-cut cable. Example: Power Supply (see pic. 1).
Apply sufficient amount of silicon gel to cable gland of opened round cross cut cable end inside
housing of MAGX2 (see pic. 2).
Slightly pull out the cable while turning the cable to achieve sufficient spread of silicon around the
cable in the cable gland (see pic. 3 and pic. 4).
Do an optical control – focus on full spread of silicone gel around the cable.

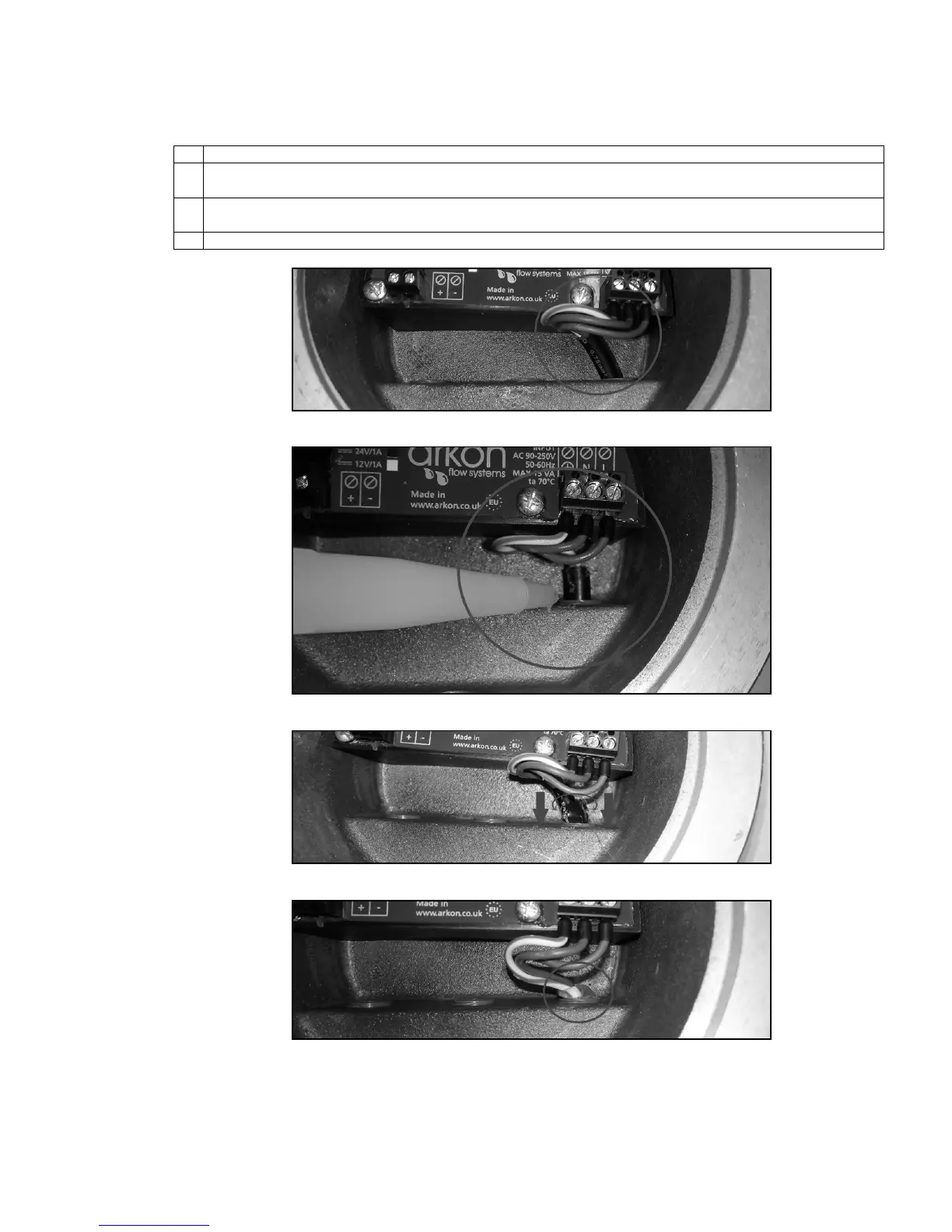

Pic. 1 round cross cut cable properly connected inside of MAGX2 IP68 housing
Pic. 2 Application of silicon binder on cable sheat of opened round cross cut cable end
Pic. 3 Manipulation with the cable to achieve sufficient fill up of a cable gland
Pic. 4 Do an optical control to verify sufficient fill up of the cable gland which satisfy IP68 standart
2.9. Ambient conditions
Ambient temperature: -20 – 60 ºC
Relative humidity: up to 100%, non-condensing
