V2.14 1-2-2017

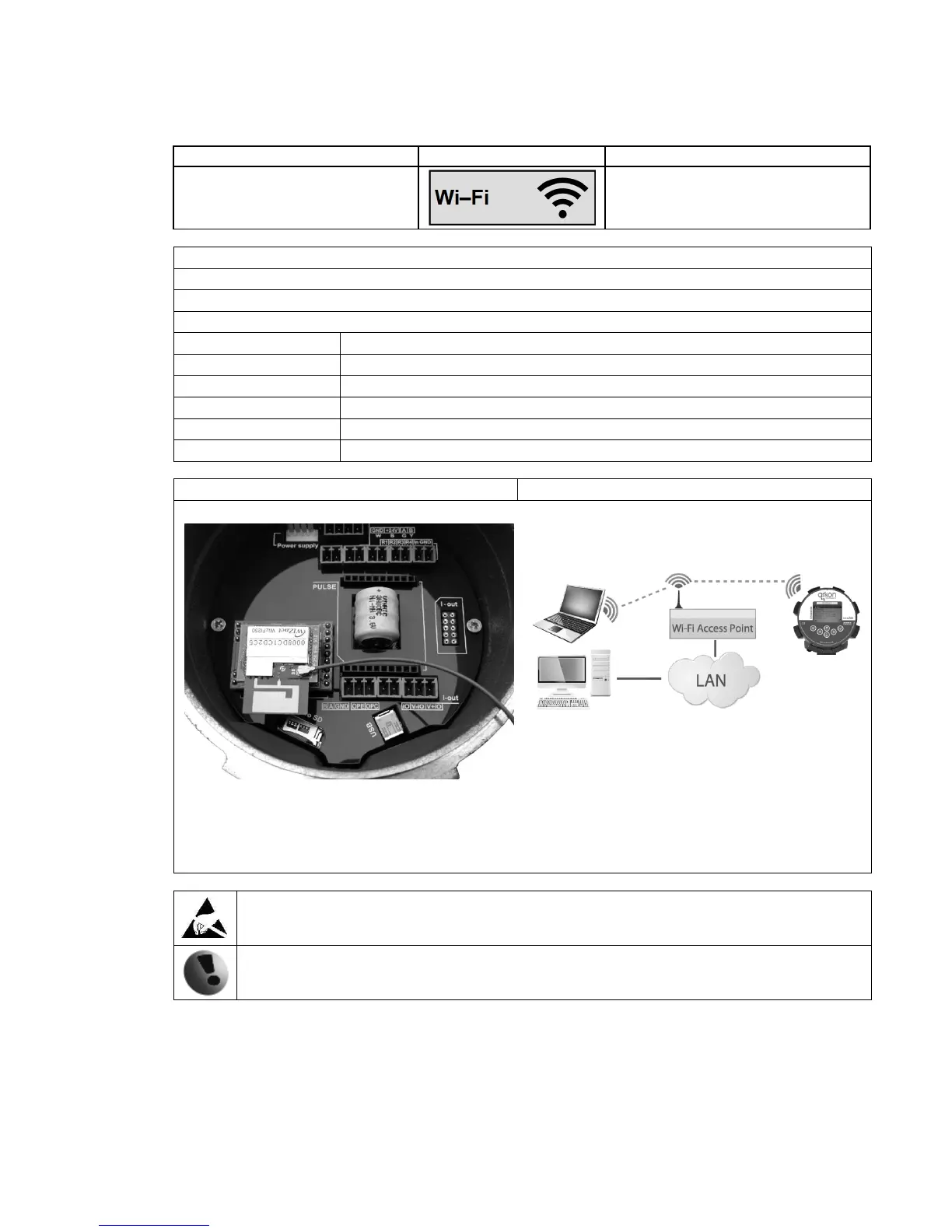

4.11. Wi-Fi Module
Module Name:
Symbol:
Ordering Code:
MAGX2 WiFi Module
******WIFI
APPLICATIONS:
Wireless communication for short and medium distances.
Electrical Specifications
VCC to Ground
3.3 VDC
Power Supply Current
up to 430 mA
Baud Rate
4800 - 38400 baud/s
Carrier Frequency
2,400 – 2,484 GHz
Range
up to 200 m
Temp. Range
-20 – 70 °C
BASIC CIRCUIT CONNECTIONS:
Using the Wi-Fi Module
See Wi-Fi module installation procedure (P31).
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
