2.7. Potting the remote sensor terminal box for sensor communication module
For sensor communication module, to guarantee IP68 protection of the sensor, it is necessary to pot the
sensor terminal box properly. The proper way to do this is described below:


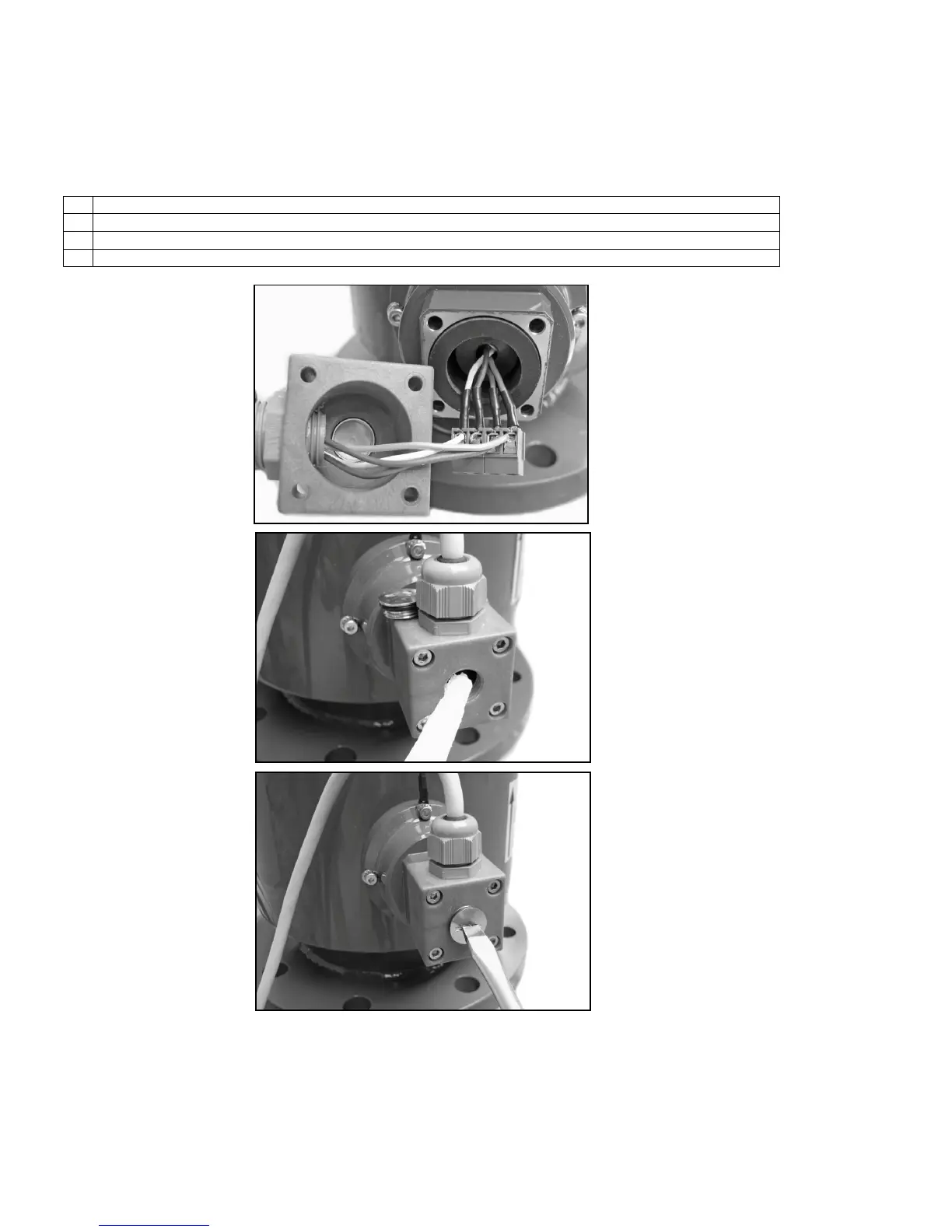

Plug the connectors into the sensor (white and green wire adjacent).

Screw the small terminal box to the sensor neck (4 screws).

Fill the terminal box completely with silicone, by squeezing it through the opening on top of the box.

Close the small terminal box with the sealing screw.
