Arkon MAGX2 - GSM-SMS Module

MAGX2 User Guide
42
V2.14 1-2-2017

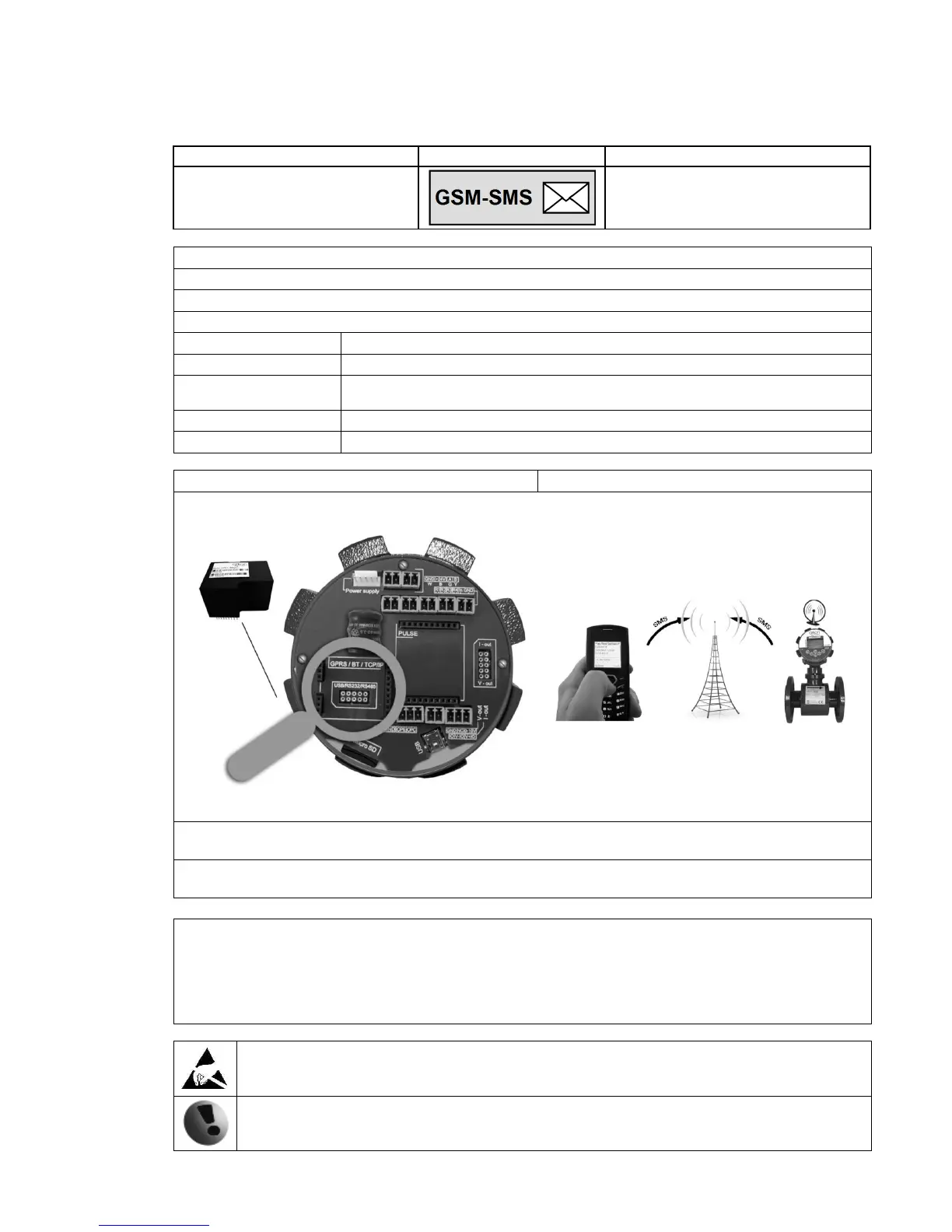

4.9. GSM-SMS Module
Module Name:
Symbol:
Ordering Code:
MAGX2 GSM-SMS Module
******SMS
APPLICATIONS:
Wireless monitoring of the flowmeter (Flow, Datalogger, Event, Error)
Electrical Specifications
VCC to Ground
3.3 VDC
Power Supply Current
RMS 400mA, MAX 1500mA
Operating Systems
GSM 850 / GSM 900
DCS 1800 / PCS 1900
SIM Card
3.0 / 1.8 V
Temp. Range
–20 – 70 °C
BASIC CIRCUIT CONNECTIONS:
Using the GSM-SMS Module
For more information about installation and specification see document:
P_29_MAGX2_GSM_SMS_Module in the CD.
Note: To avoid unauthorized access to the data, the customer is responsible for keeping flowmeter serial
number and SIM card number secret.
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
Warning!: There is a condition that must be fulfilled for the GSM-SMS module to be able to operate
correctly: line speed of the communication protocol Modbus must be set up on 19200Bd,
Parity none, 1 stop bit. If there is a different setting the communication will not work. You can
find the setting in the following MAGX2 flow meter menu: "Menu / User settings / Modbus /
Baud rate" and "Menu / User settings / Modbus / Parity".
For more information about GSM-SMS Module see MAGX2 GSM-SMS Module Specification.
