Arkon MAGX2 - RS485 Module

MAGX2 User Guide
38
V2.14 1-2-2017
4.5. RS485 Module
Module Name:
Symbol:
Ordering Code:
MAGX2 RS485 Module
******485
APPLICATIONS:
Industrial Automation, Industrial Process Control, Peripheral - PC and Terminal.
Electrical Specifications
VCC to Ground
3.3 VDC
Baud rate
Max. 115200 baud/s

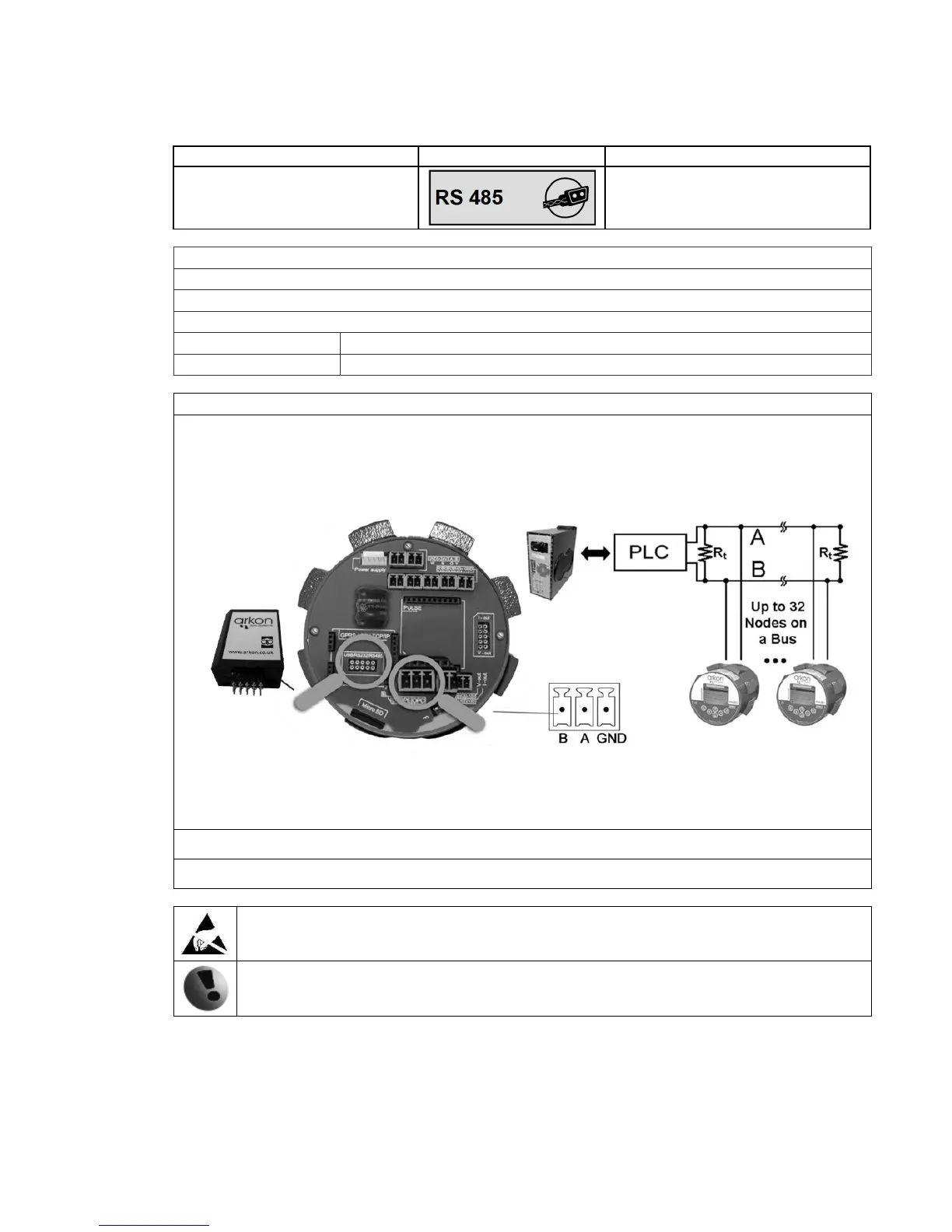

BASIC CIRCUIT CONNECTIONS:
Multi-Node Network with End Termination Using module RS485
Terminator R
t
with resistance 100 should be connect to the end of line RS-485.
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
