Arkon MAGX2 - 4 Modules; Power Supply Module

MAGX2 User Guide
35
V2.14 1-2-2017
4. Modules

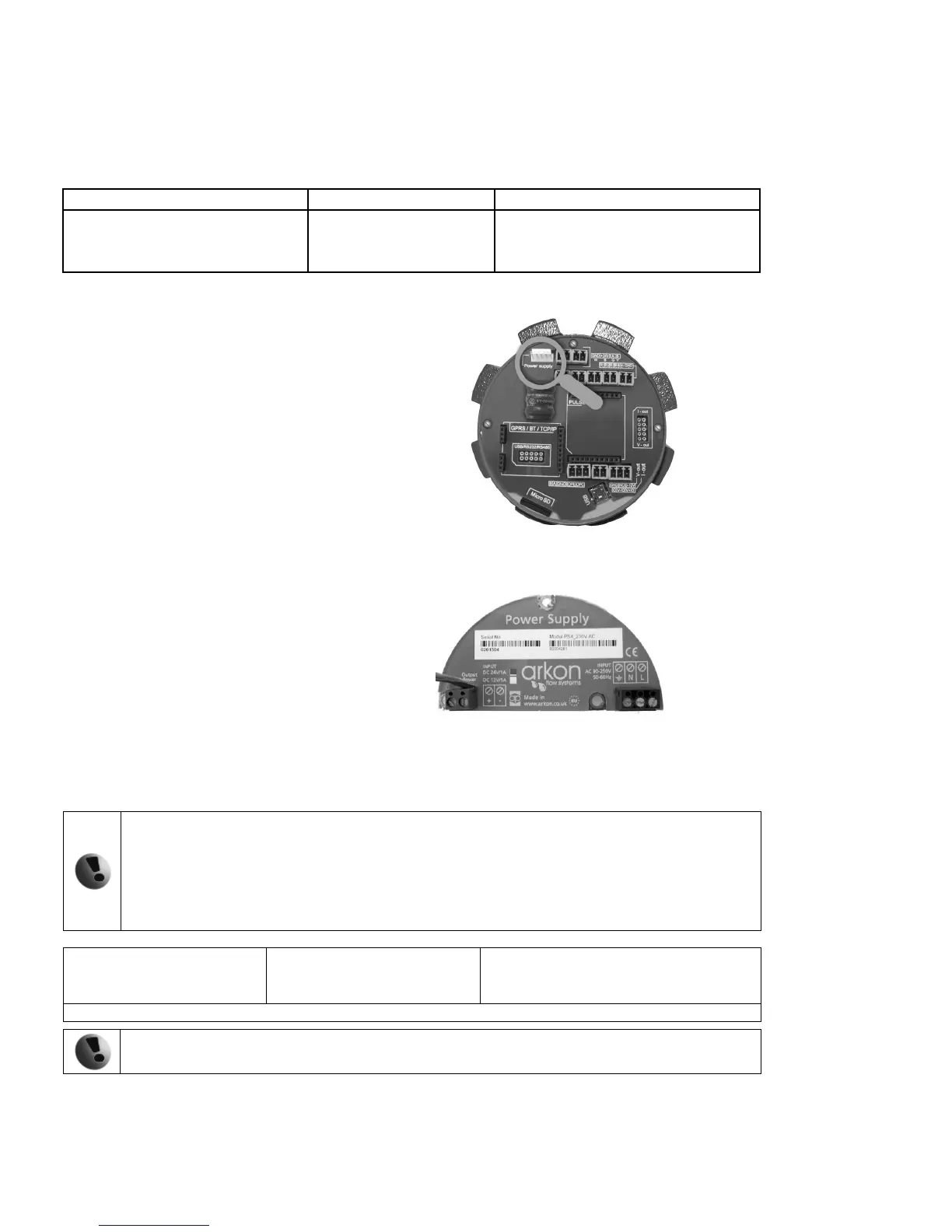

4.1. Power Supply Module
Module Name:
Symbol:
Ordering Code:
Power Supply Module
*230*****
*24*****
*12*****
APPLICATIONS:
PIN LOCATION
Industrial Power Supplies 90-250 V AC, 24 V
DC or 12 V DC Distributed Power Systems.
This module is necessary for the complete
flowmeter.
Electrical Specifications
Input Voltages ±5% /
possible current
consumption
AC 90 - 250V / max. 15 VA
DC 24 V / max. 600mA
DC 12 V / max. 1050mA
Output Voltages
3.3V / 2A
23.6V/300mA
Frequency Outputs
50-60Hz
Temp. Range
-20 – 70 °C
Dimensions:
R = 50mm
H(230V) = 58mm
H(12,24V) = 58mm
Weight
300g
The device does not have a network power switch. For any electrical work or housing open it is
necessary to disconnect the device from the network power, and this has to be done via a switch.
The mains protective earth wire has to be connected to the PE terminal (power supply class 1). A
switch or circuit breaker (B6) has to be in the building installation if mains supply 90 – 250 V AC
from building installation is connected to the power supply module. It must be in close proximity
to the equipment and within easy reach of the operator, and it shall be marked as the
disconnecting device for the flowmeter.
90-250 V AC / 15VA
Recommended power supply
cable minimum 3xØ1mm
2
24 V DC / 600mA
Recommended power supply
cable minimum 2xØ0.5mm
2
12 V DC / 1050mA
Recommended power supply cable
minimum 2xØ0.5mm
2
All used wires have to be round crosscut cables.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off. The flowmeter is CAT II – CAT III device.
