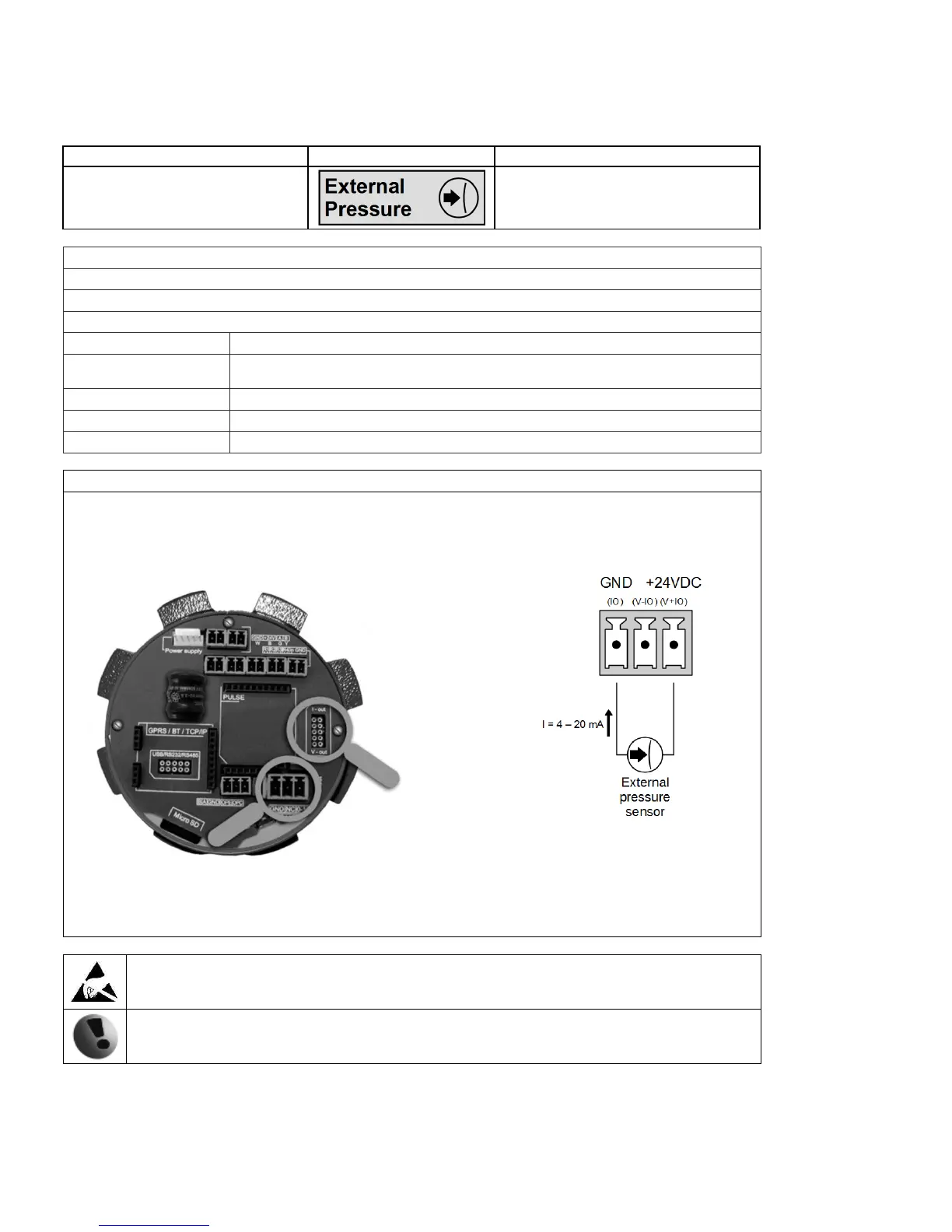

4.16. External Pressure Module
Module Name:
Symbol:
Ordering Code:
MAGX2 External Pressure Module
****EP**
APPLICATIONS:
Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter
Electrical Specifications:
VCC to Ground
3.3 VDC
Output type Pressure
Sensor
passive 4 – 20 mA (ext. power supply from Pressure Module)
Measurement Range
according to the manufacturer's specifications the sensor
Measurement Unit
bar, psi
Temp. Range
-20 – 70 °C
BASIC CIRCUIT CONNECTIONS:
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
