Arkon MAGX2 - Pulse 230 Module

MAGX2 User Guide
46
V2.14 1-2-2017
4.13. Pulse 230 Module
Module Name:
Symbol:
Ordering Code:
MAGX2 Pulse 230 Module
*****P2*
APPLICATIONS:
Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter
Electrical Specifications
VCC to Ground
3.3 VDC
Output mode
Frequency, Pulse - relay and open collector
Max Relay Voltage
(RE2,RE3)
250VAC/220VDC at 120VA/60W
Output Frequency
2-1000Hz
Batching Voltage Input
Range
+5-14V DC
Temp. Range
-20 to +70C

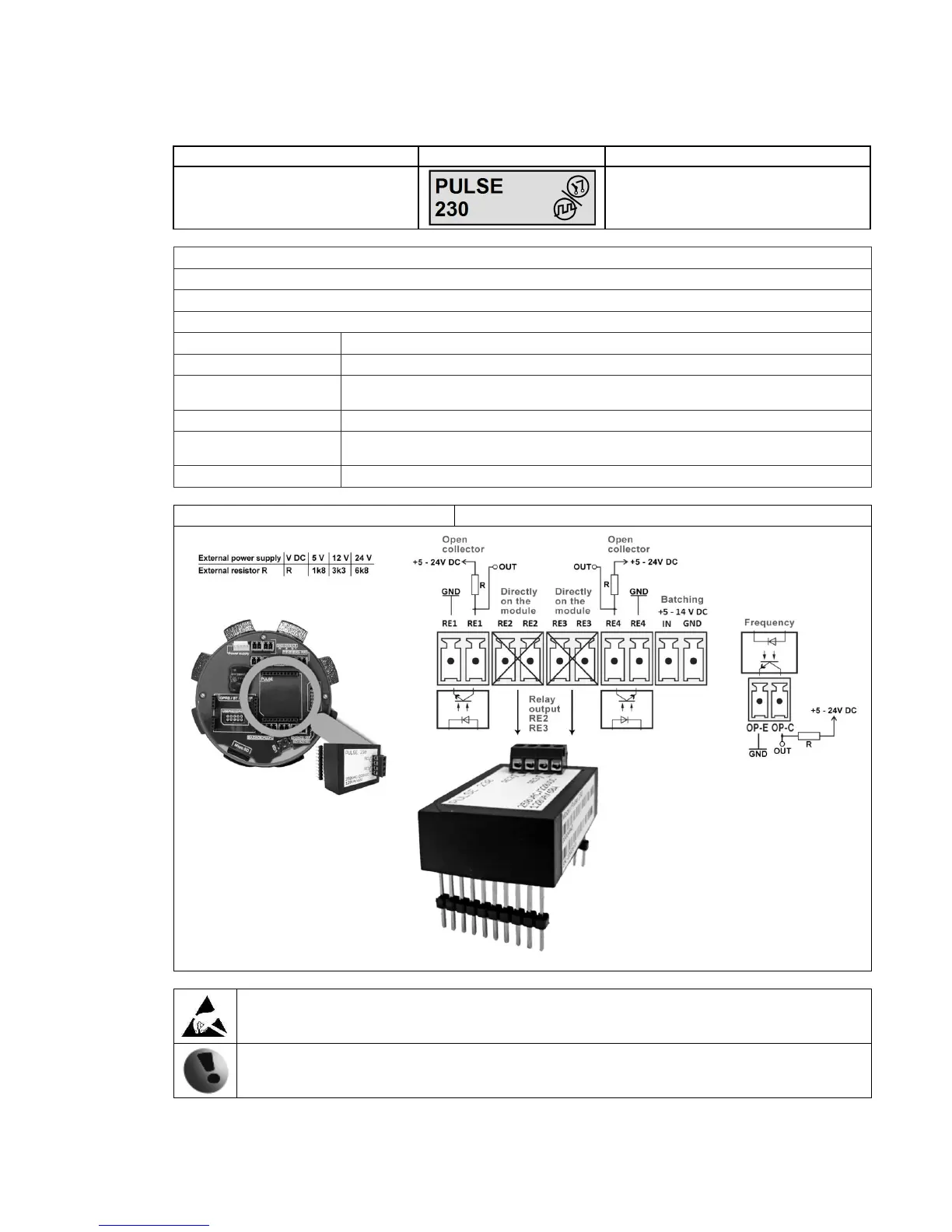

BASIC CIRCUIT CONNECTIONS:
Using the Pulse 230 Output Module
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
