Arkon MAGX2 - 2.3. Cable Connections and IP68 Sealing

MAGX2 User Guide
9
V2.14 1-2-2017

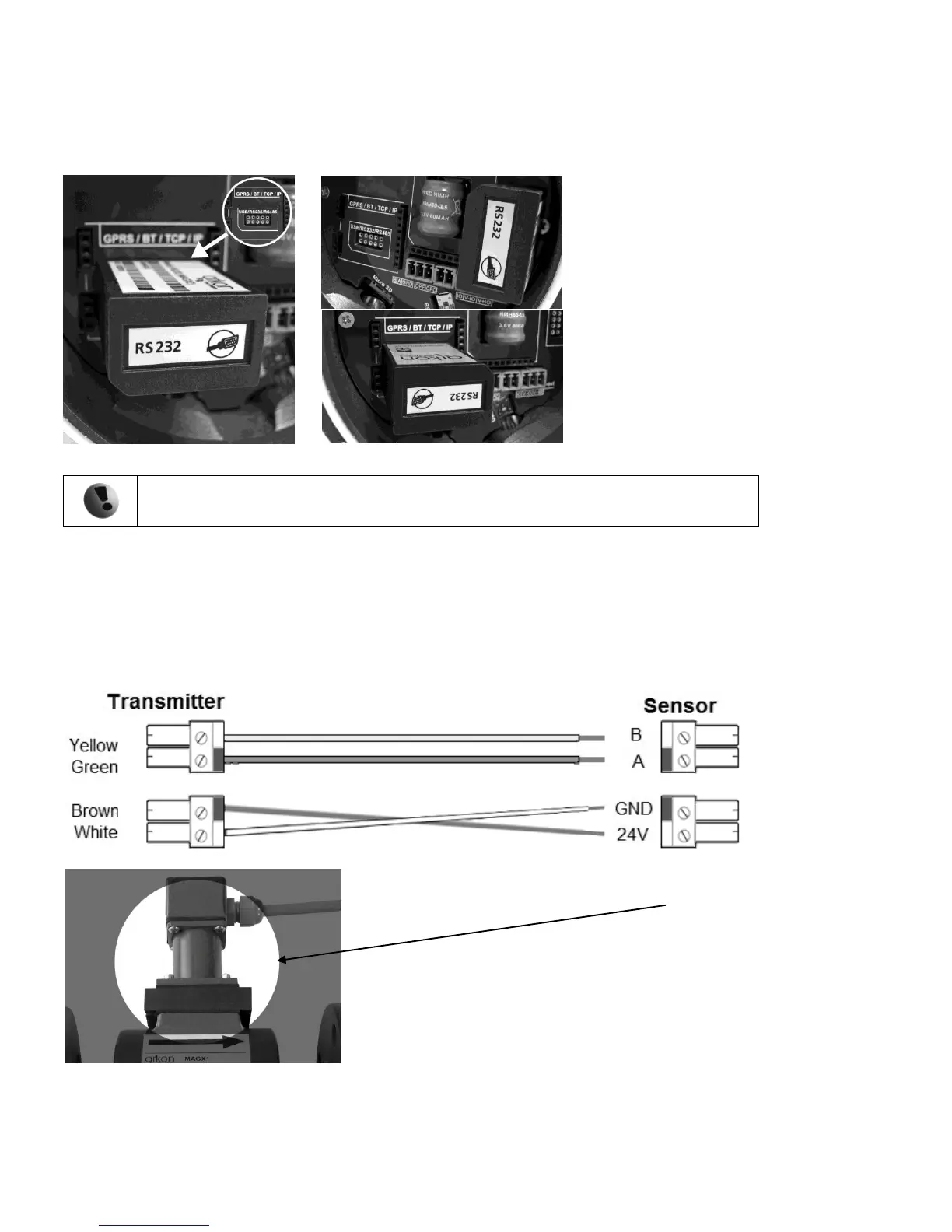

 - Now you can place the module in its slot:
Correct installation Incorrect installations
Any connection or disconnection of any module has to be done with network power to the
meter switched off.
2.6. Cables connections
The following diagrams show the connections of the cables between sensor and transmitter.
Sensor communication module version 7.1
Use this cable connection only for “sensor to
transmitter communication module - version 7.1”.
The RS232 Module is
placed in a different slot.
The RS232 Module is
placed in the correct
slot, but with the
bevelled corner in the
wrong direction.
