Arkon MAGX2 - GPRS Module

MAGX2 User Guide
43
V2.14 1-2-2017

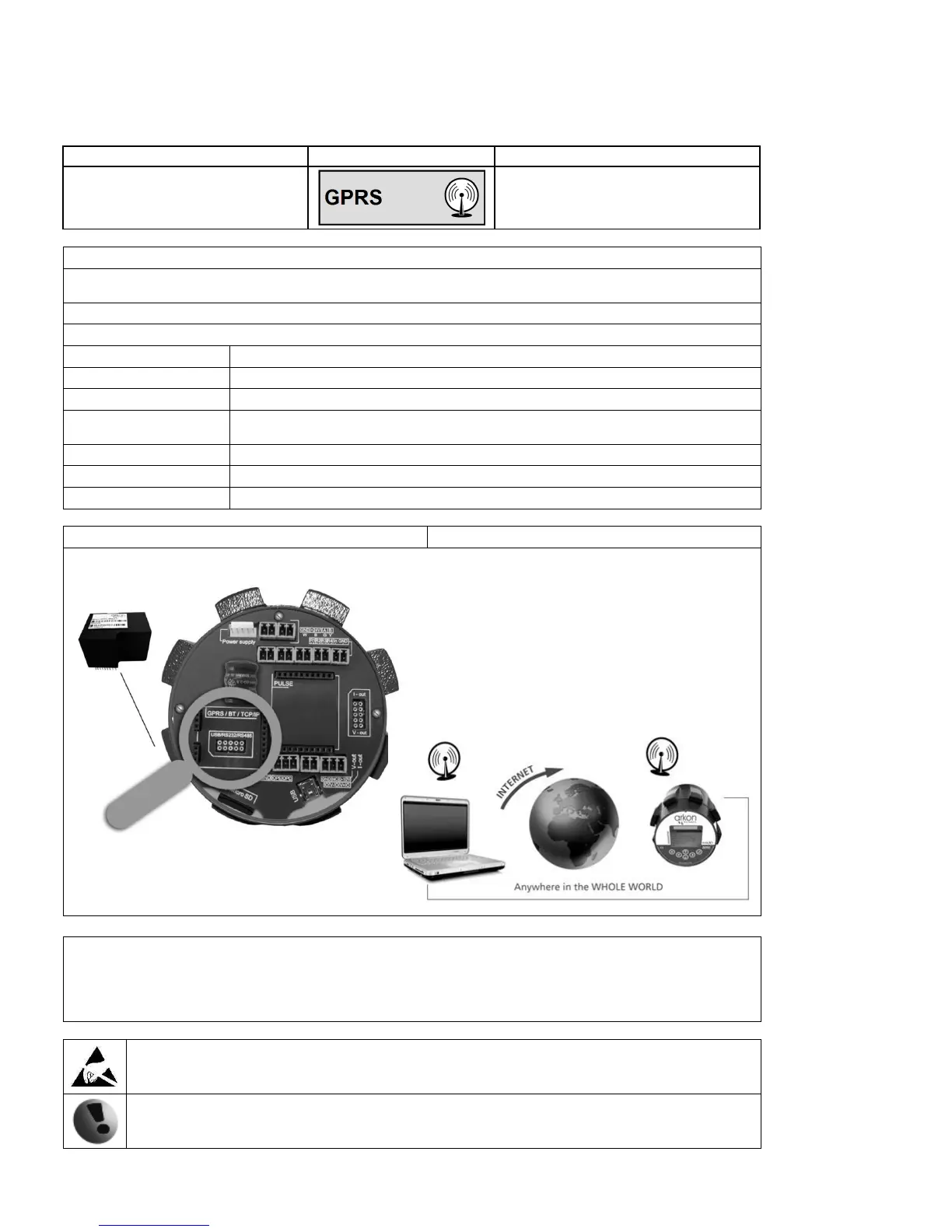

4.10. GPRS Module
Module Name:
Symbol:
Ordering Code:
MAGX2 GPRS Module
******GPR
APPLICATIONS:
Wireless control of and communication between transmitter and PC or PLC systems
Any System Requiring GPRS Communications
Electrical Specifications
VCC to Ground
3.3 VDC
Power Supply Current
RMS 400mA, MAX 1500mA
Baud Rate
19200 baud/s
Operating Systems
GSM 850 / GSM 900
DCS 1800 / PCS 1900
Multi-slot class
10 (4 Rx / 2 Tx / 5 Sum)
SIM Card
3.0 / 1.8 V
Temp. Range
–20 – 75 °C
BASIC CIRCUIT CONNECTIONS:
Using the GPRS Module
See GPRS Module Installation manual.
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
Warning!: There is a condition that must be fulfilled for the GPRS module to be able to operate correctly:
line speed of the communication protocol Modbus must be set up on 19200Bd, Parity none,
1 stop bit. If there is a different setting the communication will not work. You can find the
setting in the following MAGX2 flow meter menu: "Menu / User settings / Modbus / Baud rate"
and "Menu / User settings / Modbus / Parity".
