Arkon MAGX2 - Pulse Output Module

MAGX2 User Guide
45
V2.14 1-2-2017

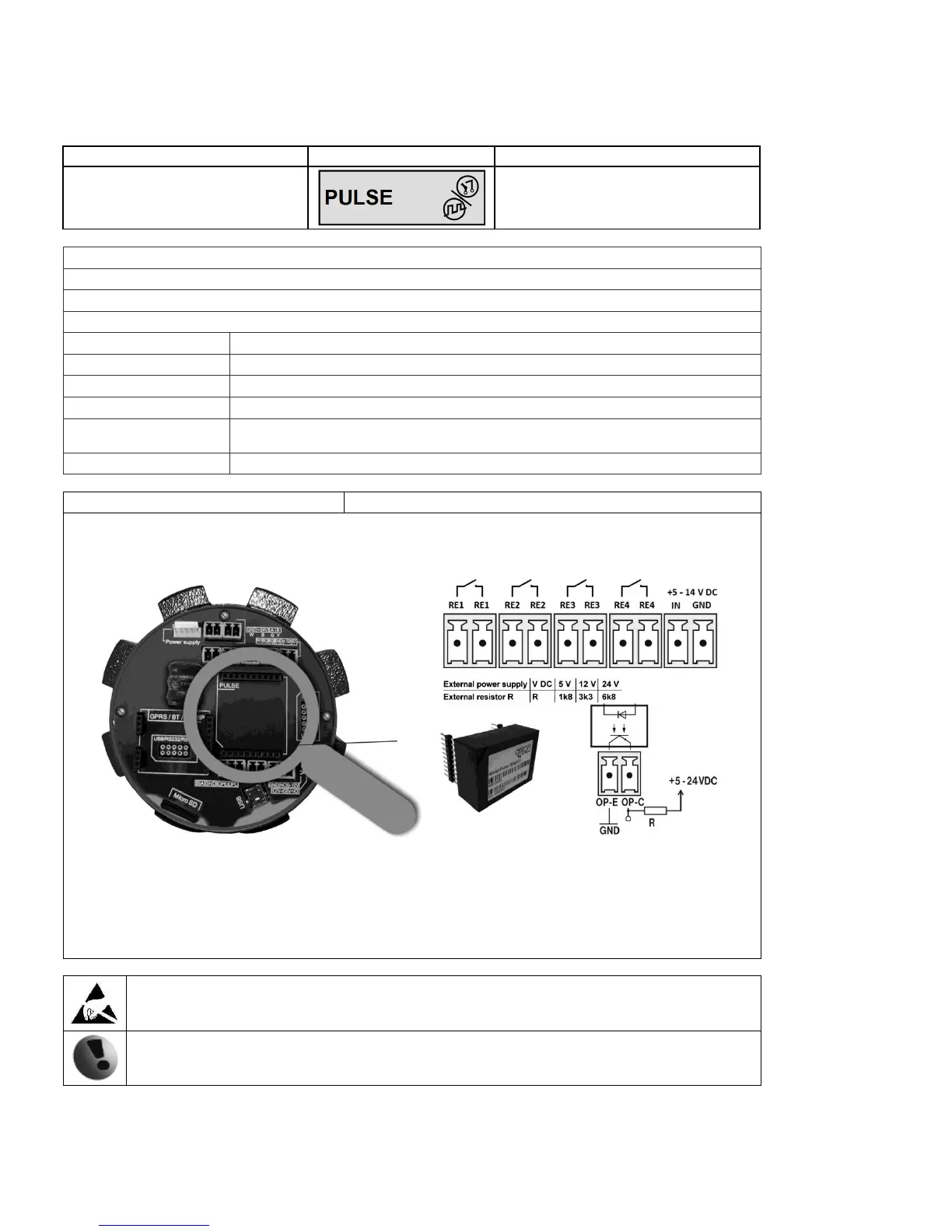

4.12. Pulse Output Module
Module Name:
Symbol:
Ordering Code:
MAGX2 Pulse Output Module
*****P*
APPLICATIONS:
Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter
Electrical Specifications
VCC to Ground
3.3 VDC
Output mode
Frequency, Pulse
Max Relay Voltage
110VDC/0.5A
Output Frequency
2-1000 Hz
Batching Voltage Input
Rate
+5 - 14VDC
Temp. Range
-20 – 70 °C
BASIC CIRCUIT CONNECTIONS:
Using the Pulse Output Module
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
