Arkon MAGX2 - External Temperature Module

MAGX2 User Guide
47
V2.14 1-2-2017
4.14. External Temperature Module
Module Name:
Symbol:
Ordering Code:
MAGX2 External Temperature
Module
*****ET*
APPLICATIONS:
Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter
Electrical Specifications
VCC to Ground
3.3 VDC
RTD Sensor Type
Pt100, Pt200, Pt500, Pt1000
Tolerance RTD
Sensors
Class A, Class B
RTD Sensor connection
2-wire, 3-wire, 4-wire
Measurement Range
-30 – 180 °C (or according to the manufacturer's specifications of the sensor)
Temp. Range
-20 – 70 °C

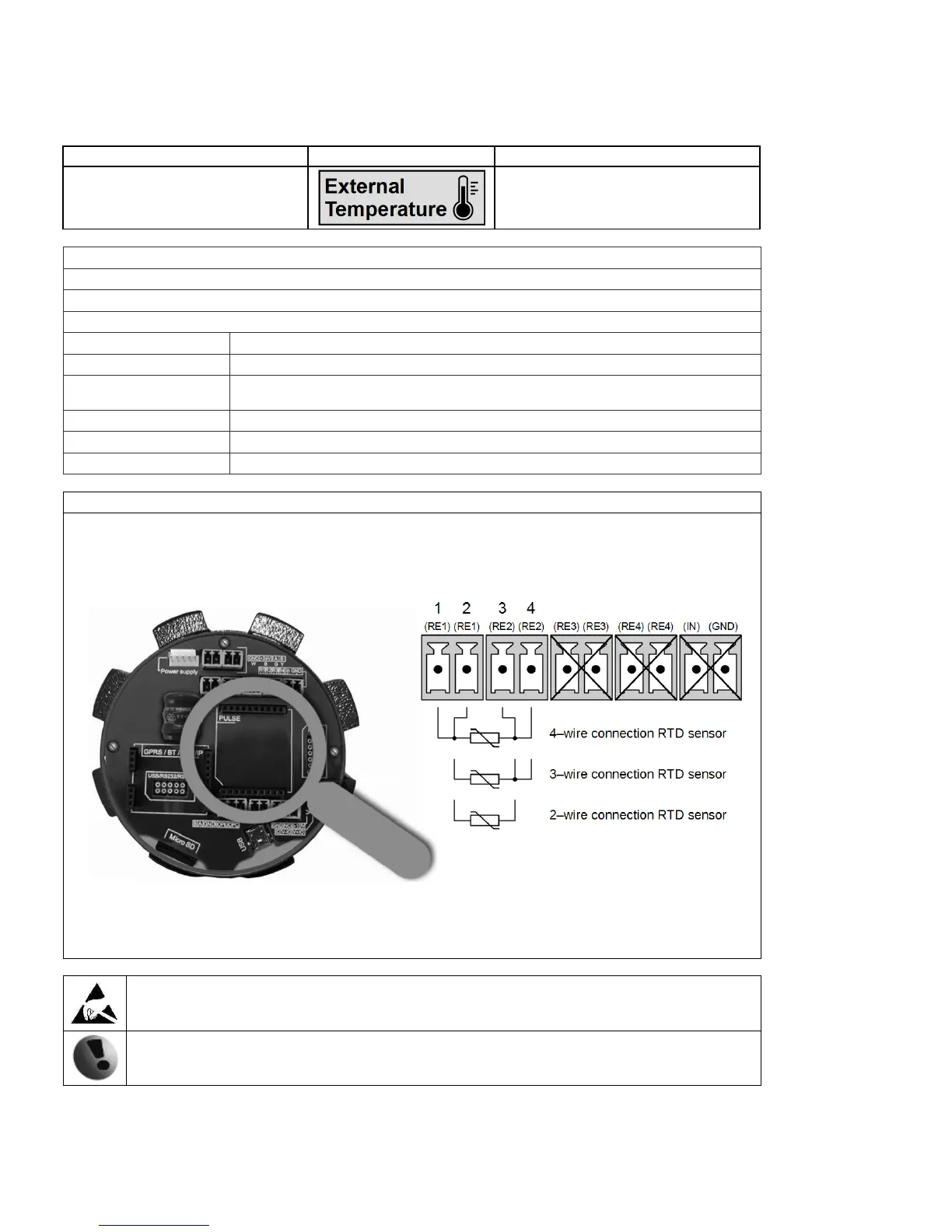

BASIC CIRCUIT CONNECTIONS:
The actual physical connection have to be selected in menu: External measurements – Temperature –
Sensor Type
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
