Arkon MAGX2 - BLUETOOTH Module

MAGX2 User Guide
41
V2.14 1-2-2017
4.8. BLUETOOTH Module
Module Name:
Symbol:
Ordering Code:
MAGX2 BLUETOOTH Module
******BTO
APPLICATIONS:
Wireless control of and communication between transmitter and PC or PLC systems
Any System Requiring BlueTooth Communications
Electrical Specifications
VCC to Ground
3.3 VDC
Power Supply Current
120 mA
Baud Rate
Max. 460.8 Kbaud/s
Carrier Frequency
2.402 – 2.480 GHz
Range
100m (class 1)
Temp. Range
–20 – 70 °C

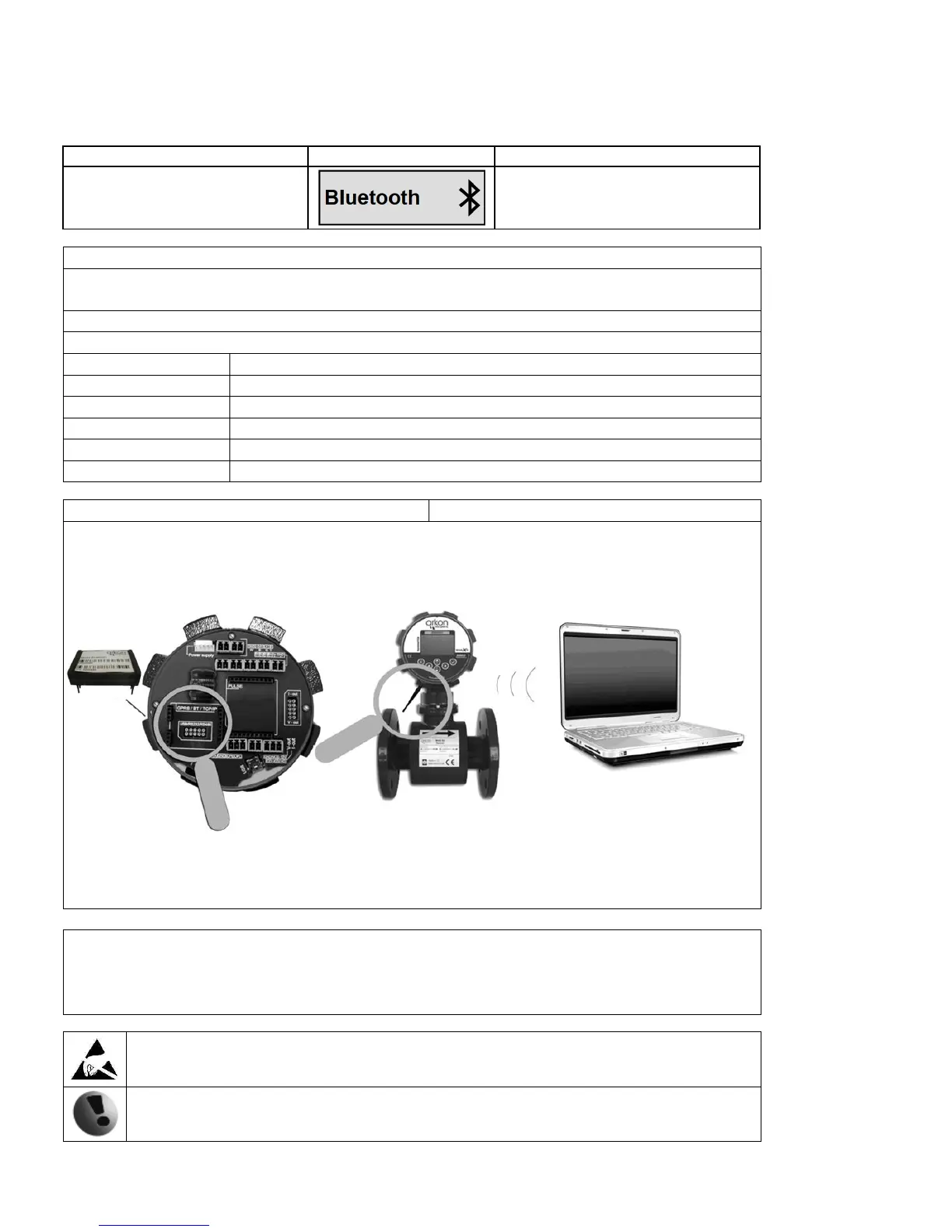

BASIC CIRCUIT CONNECTIONS:
Using the TCP/IP Module
See Bluetooth installation manual.
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
Warning!: There is a condition that must be fulfilled for the Bluetooth module to be able to operate
correctly: line speed of the communication protocol Modbus must be set up on 19200Bd,
Parity none, 1 stop bit. If there is a different setting the communication will not work. You can
find the setting in the following MAGX2 flow meter menu: "Menu / User settings / Modbus /
Baud rate" and "Menu / User settings / Modbus / Parity".
