Arkon MAGX2 - Current Loop Output Module

MAGX2 User Guide
48
V2.14 1-2-2017

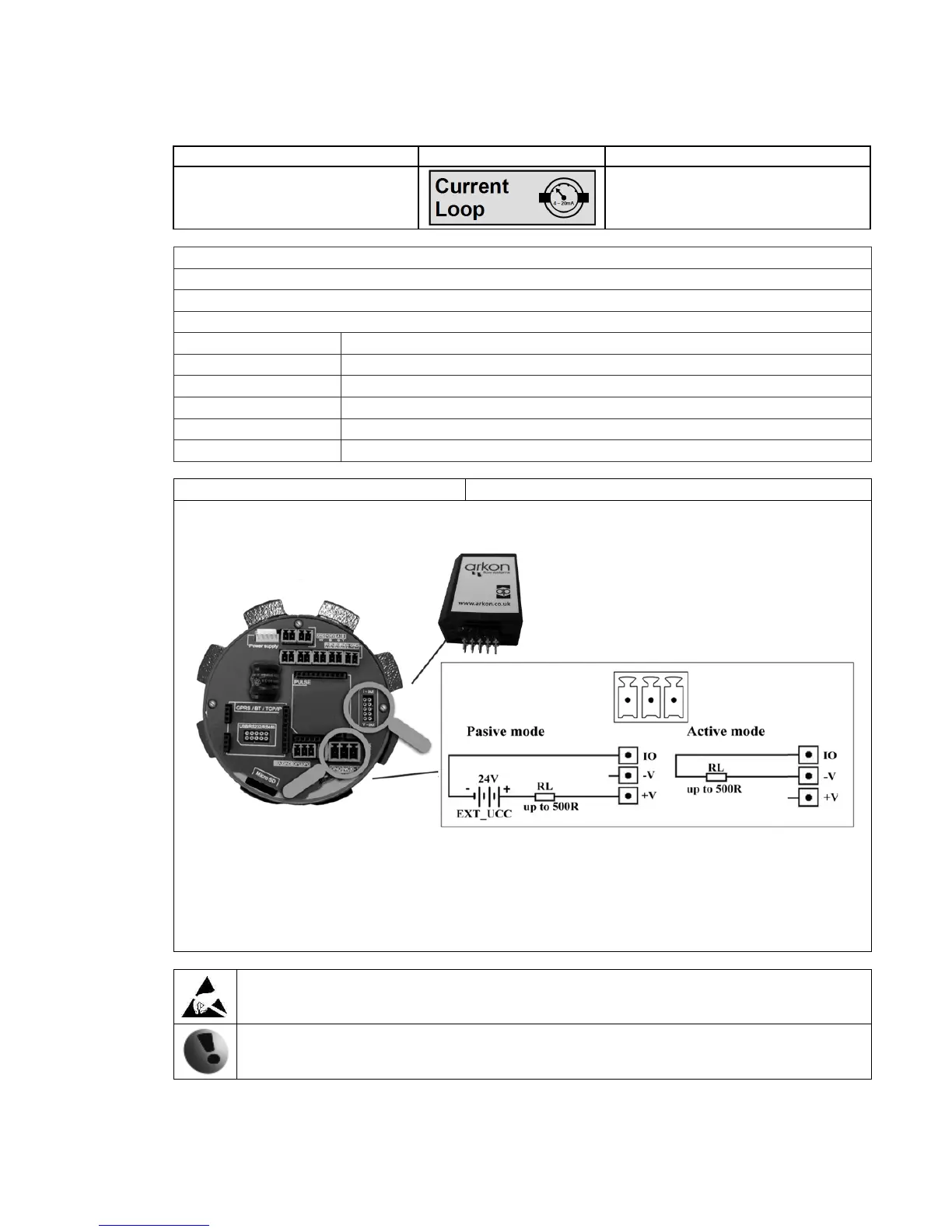

4.15. Current Loop Output Module
Module Name:
Symbol:
Ordering Code:
MAGX2 4-20mA Current Loop
Output Module
****C**
APPLICATIONS:
Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter
Electrical Specifications:
VCC to Ground
3.3 VDC
Type
12-bit DAC
Maximum resolution
3.9 µA
Current out
4 – 20 mA
Output mode
Active or Passive
Temp. Range
-20 – 70 °C
BASIC CIRCUIT CONNECTIONS:
Using the Current Loop Module
Warning electrostatic sensitive device.
Any connection or disconnection of any module has to be done with the network power to the
meter switched off.
