F40 5

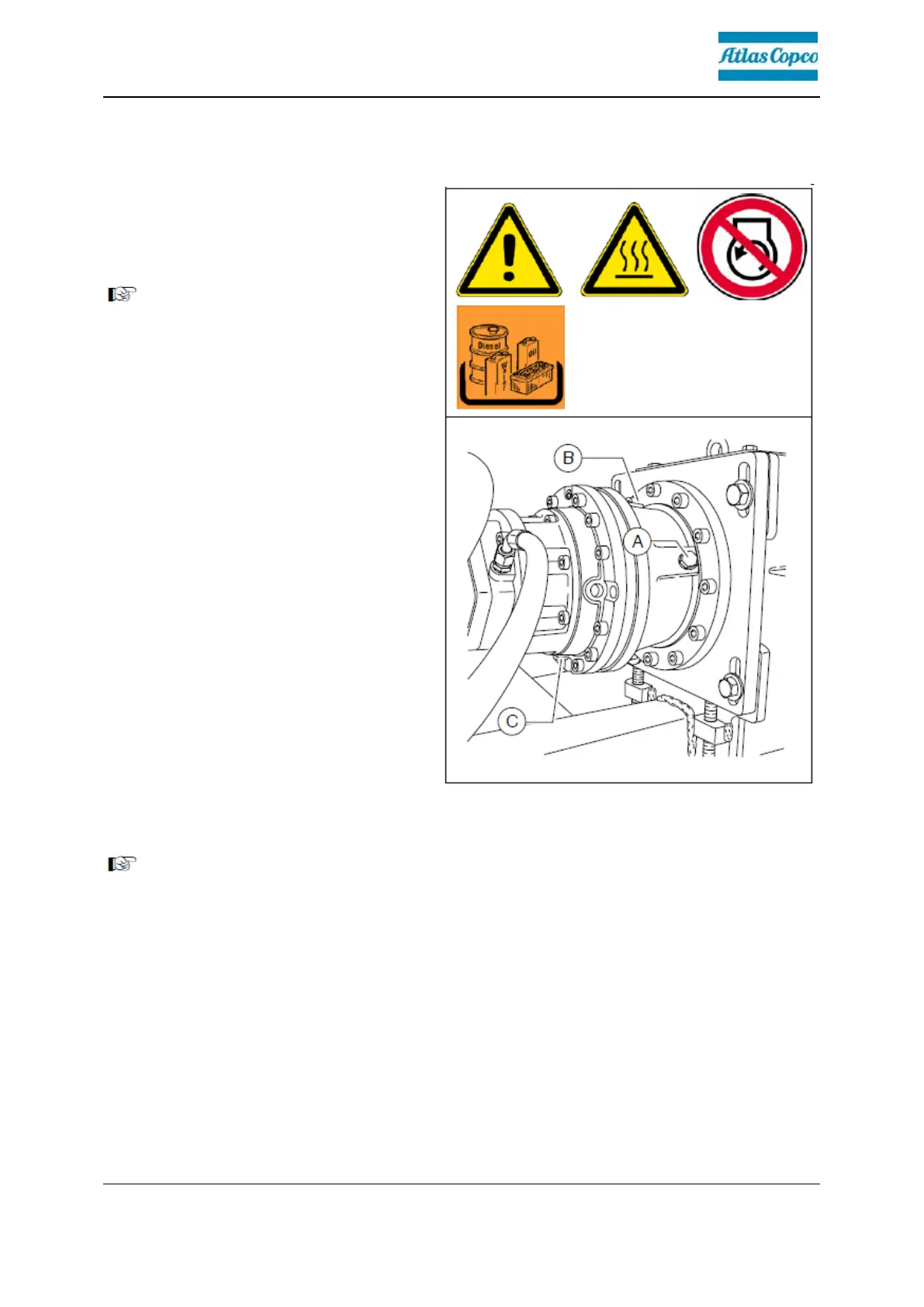

Auger planery gear (2)
- For oil level check unscrew
and remove the inspection
bolt (A).
When oil level is correct, the
oil comes up to the lower edge
of the inspection bore or a
small amount of oil escapes
through the aperture.
For filling in the oil:
- Unscrew inspection screw (A)
and filler screw (B).
- Fill in the specified oil into the
filler bore at (B) until the oil
level has reaches the lower
edge of the inspection screws
(A).
- Screw the filler (B) and
inspection screws (A) back
in.
To change oil:
The oil should be changed when at operating temperature.
- Unscrew the filler screw (B) and drain plug (C).
- Drain the oil.
- Screw the drain plug (C) back in.
- Unscrew the inspection screw (A).
- Fill the specified oil into the filler bore at (B) until the oil level has reached the
lower edge of the inspection bore (A).
- Screw the filler (B) and inspection screws (A) back in.
