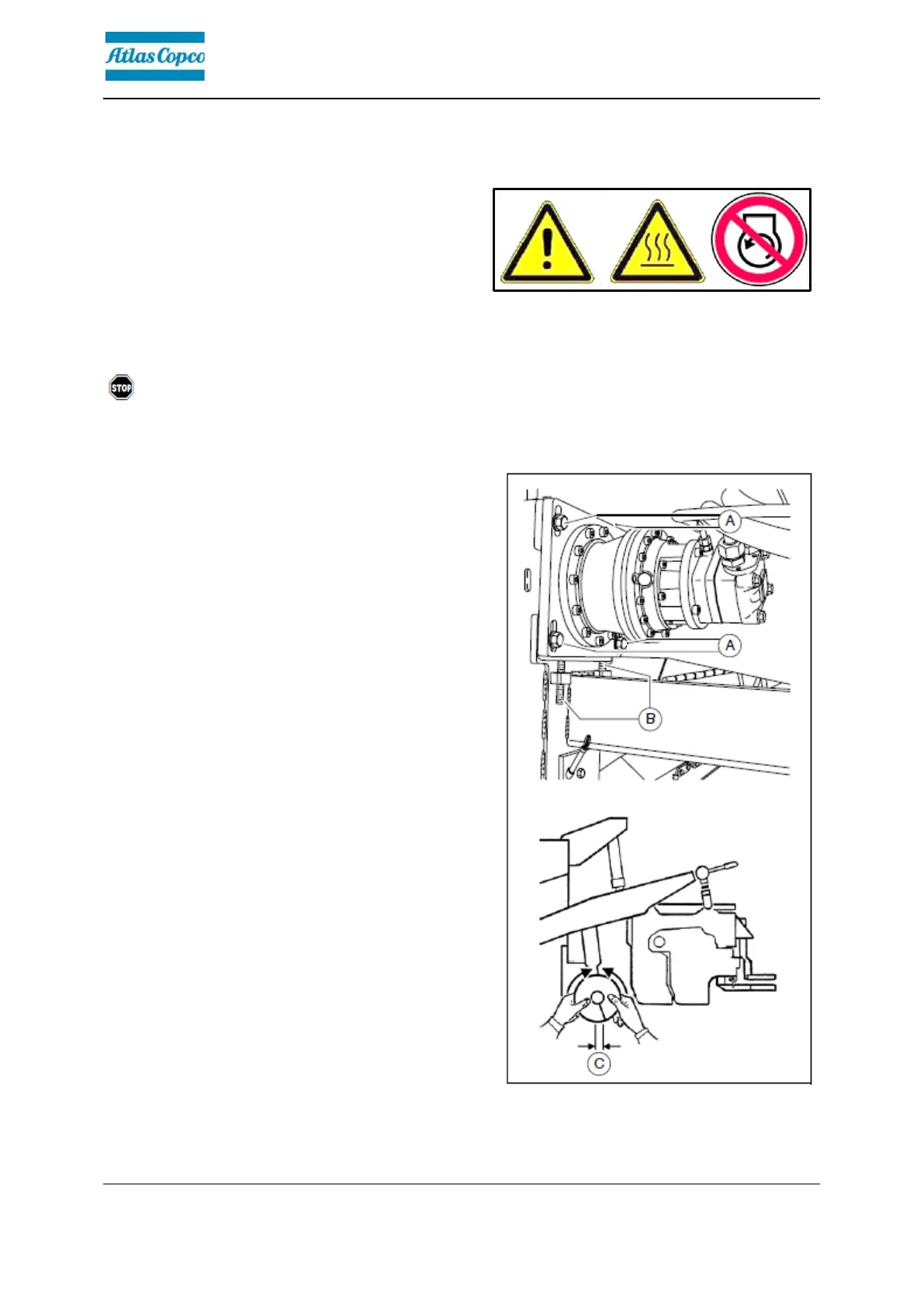

Drive chains of the augers (3)
To check the chain tension:
- Manually turn both augers to the right
and left. In this case, movement
clearance (C) at the augers’ outer
circumference should be 13–15 mm.
Risk of injury due to sharp-edged parts!
!
To re-tension the chains:
- Release the mounting screws (A).
- Set the chain tension correctly using
the threaded pins (B):
- Tighten the threaded pins to 20Nm
using a torque wrench.
- Subsequently loosen the threaded
pins again by one full revolution.
- Retighten the bolts (A).
