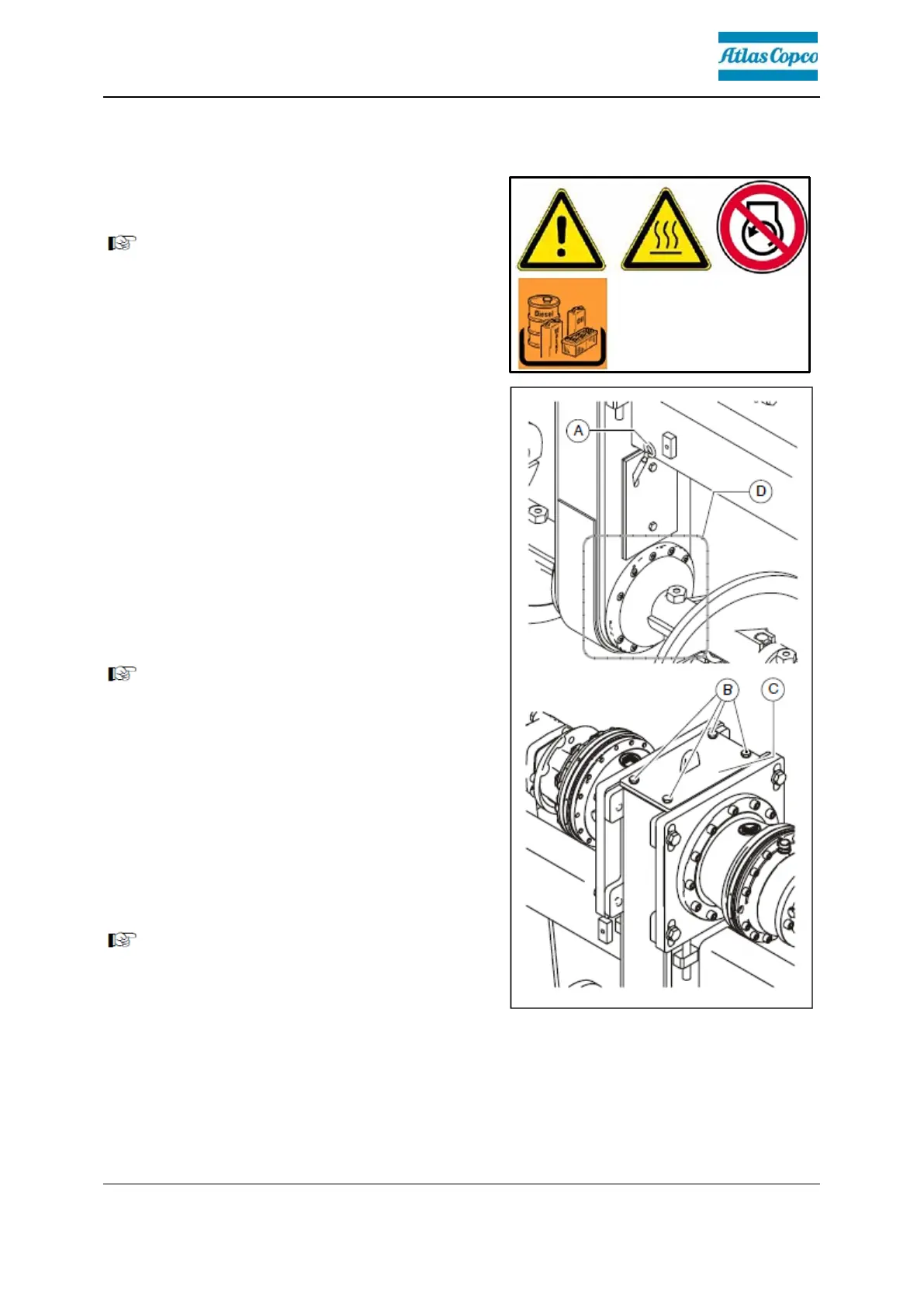

Aguer box (4)
Check oil level
In case of correct oil level, the oil is
between the two notches of the dipstick
(A).
For filling in the oil:
- Unscrew screws (B) from the top cover
of the auger box.
- Take off the cover (C).
- Fill up oil to correct level.
- Reinstall the cover.
- Use dipstick to check level again.
Change oil
The oil should be changed when at
operating temperature.
- Place a suitable collecting container
under the auger box.
- Loosen bolts (D) from the
circumference of the worm shaft
flange.
The oil runs out between the flange and
auger box.
- Drain out all oil.
- Correct retighten flange bolts (D) diagonally.
- Pour the specified oil in through the open top cover (C) of the auger box until
the oil level has reached the correct level on the dipstick (A).
- Correctly reinstall the cover (C) and screws (B).
