16.2 Checking Tightening Torques on Track Frames
n

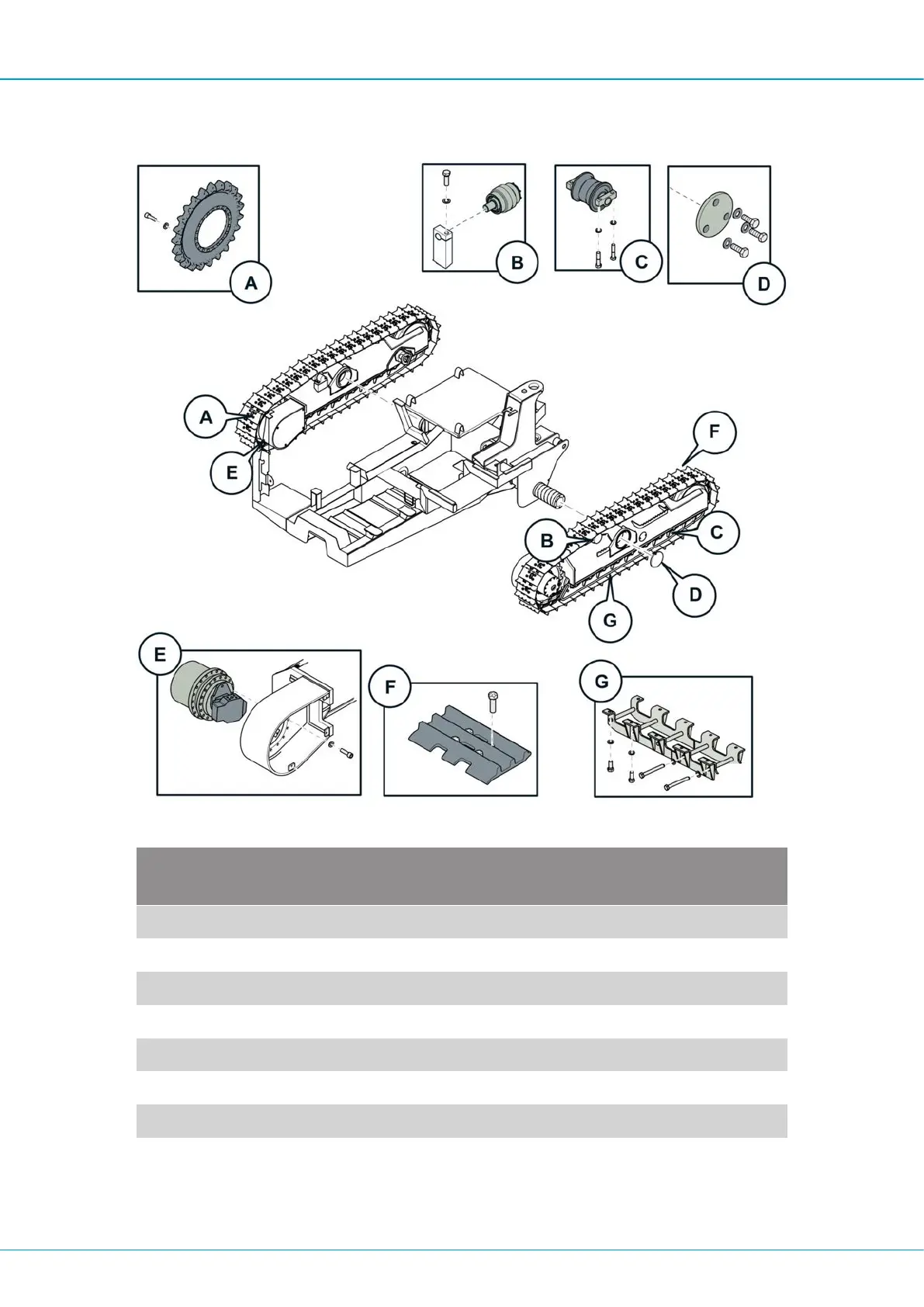

Check tightening torques on track frames.
Size Torque in Nm
(lb-ft)
Quantity/Track
Frames
Comments
A M16 347 (256) 20
B M16 289 (213) 1
C M14 187 (138) 32
D M16 188 (139) 3
E M16 347 (256) 18
F M14 260 ± 10 (192 ± 7) 176
G M14 187 (138) 28
G M14 187 (138) 10
Table3: Tightening Torques for Track Frames
