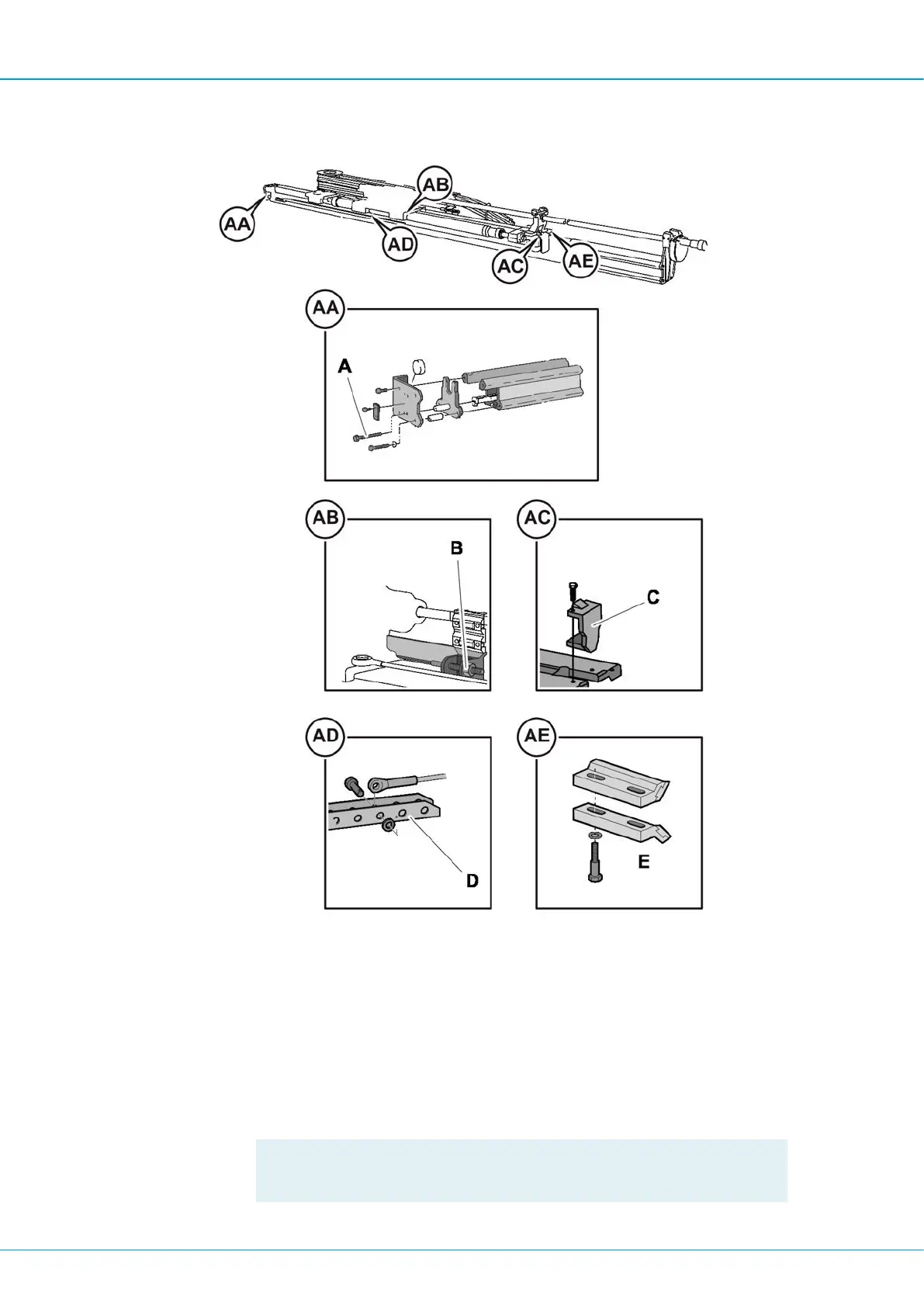

7.5 Replacing Haul Rope
1.
Operate the drill to about half its length of travel.
2.
Slacken the tension on the ropes, bolt (A) and nut (B).
3.
Remove the haul rope from its front attachment on the rock drill cradle.
4.
Remove the scraper plate (C) from the intermediate drill steel support.
5.
Loosen the intermediate drill steel support holder (E) so that the intermediate drill
steel support can be lifted.
6.
Remove the rope from the rope tensioner (D) in the rear part of the beam.
!
NOTE: Make sure the new rope is fitted in the same hole as the old
one.
