Atlas Copco FlexiROC T30 R Maintenance

FlexiROC T30 R 7 Feed Unit
29 No: 3629357835.1.3629419915 en-US
1.
Prise off the slide pieces (C) from the holder using a screwdriver and remove the keys
(D).
2.
Slide a new slide piece into the holder track and install the new keys.
3.
Make sure that the holders are installed in the cradle correctly. The holders must be
adjusted so that the total lateral play is 23 mm.

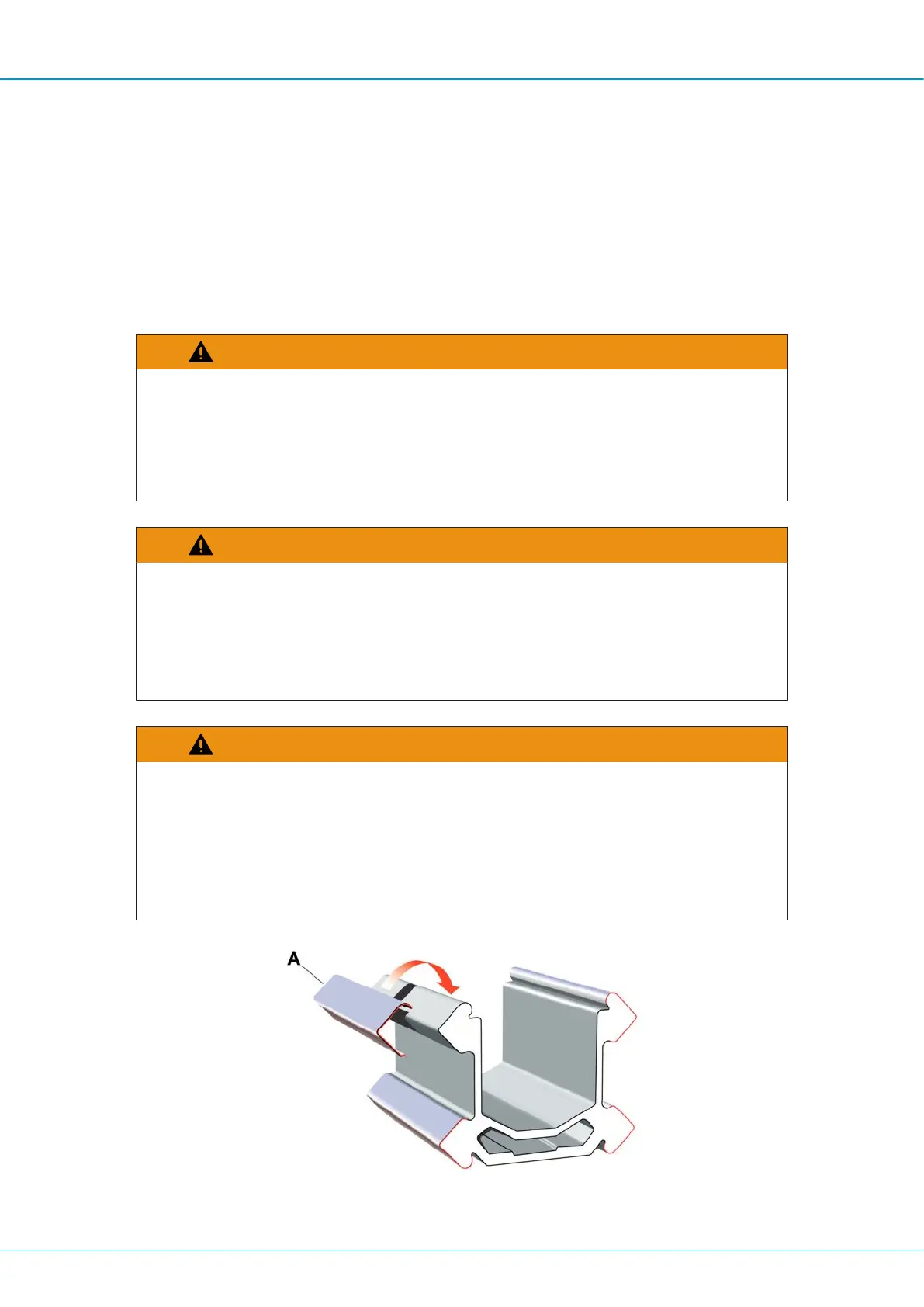

7.8 Replacing Slide Rails
WARNING
Dismantling and Assembling Components
Can cause personal injury.
u Components that could move or fall down must be securely supported or strapped in
place during service and maintenance work.
WARNING
Heavy Objects
Can cause crushing injury or death.
u Do not stand under the heavy object being lifted.
u Use adequate lifting equipment.
WARNING
Moving Parts
Can cause personal injury!
u Shut off the machine and lock the electric main power switch before starting any work.
u Ensure that the hydraulic pump is off and that the system is depressurized before start-
ing work.
Replace side rails if they are worn or severely scratched.
