Atlas Copco FlexiROC T30 R

FlexiROC T30 R 10 Hydraulic System
70 No: 3629357835.1.3629419915 en-US
1.

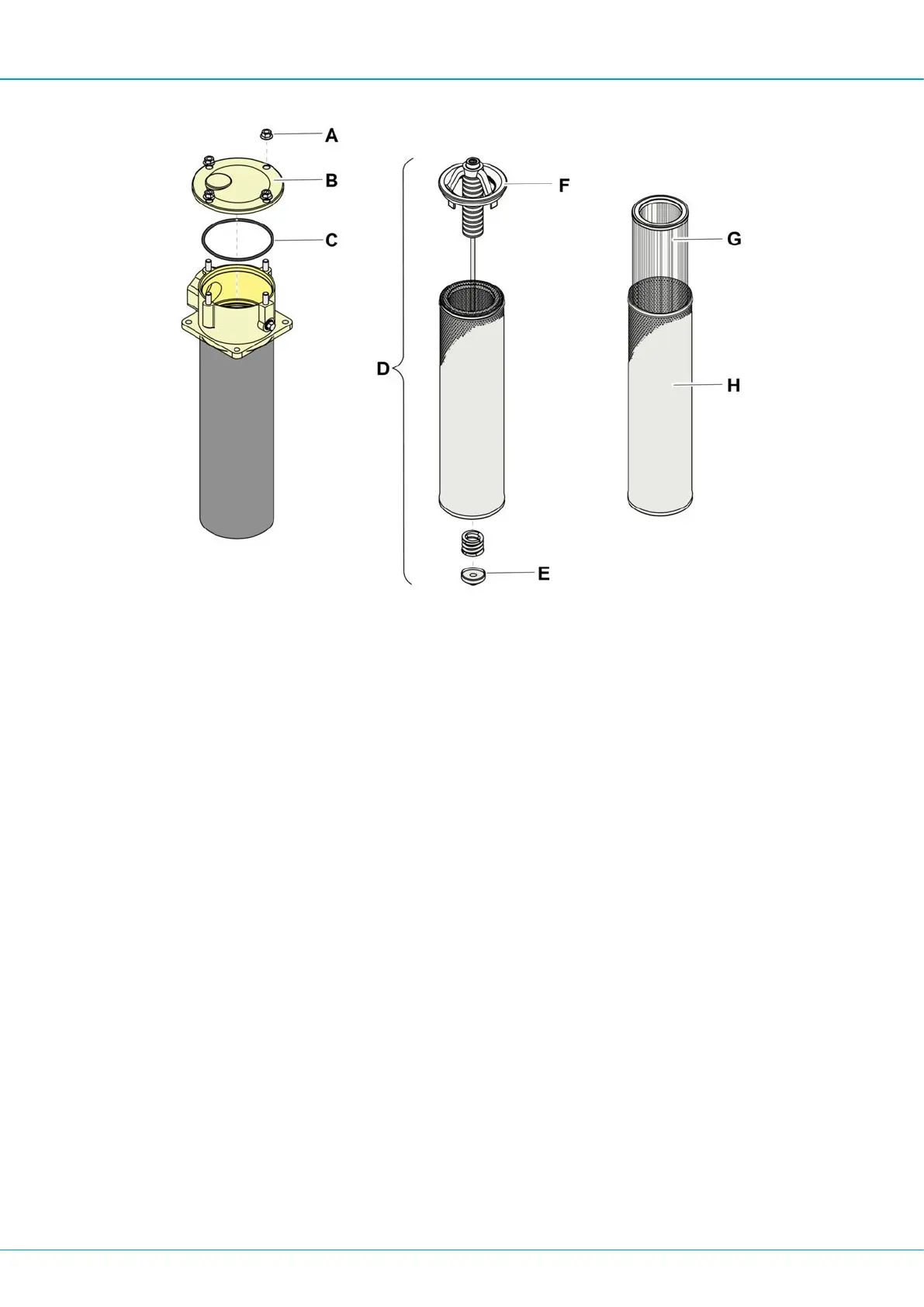

Clean on and around the filter cap. Loosen and remove the nuts (A).
2.
Lift off the cap (B) and replace the O-ring (C) if damaged.
3.
Lift out the filter cannister (D).
4.
Remove the nut (E). Lift out and clean the magnetic rod (F).
5.
Remove filter cartridge (G) from the cover (H) and replace with a new filter cartridge.
Only the filter cartridge is replaced. The filter cover is reused.
6.
Refit all parts.
10.8.4 Replace Breather Filter
Replace the filter as per the maintenance schedule or if the tank is overfilled and the filter
gets covered in oil.
