Atlas Copco FlexiROC T30 R

FlexiROC T30 R 10 Hydraulic System
67 No: 3629357835.1.3629419915 en-US
1.

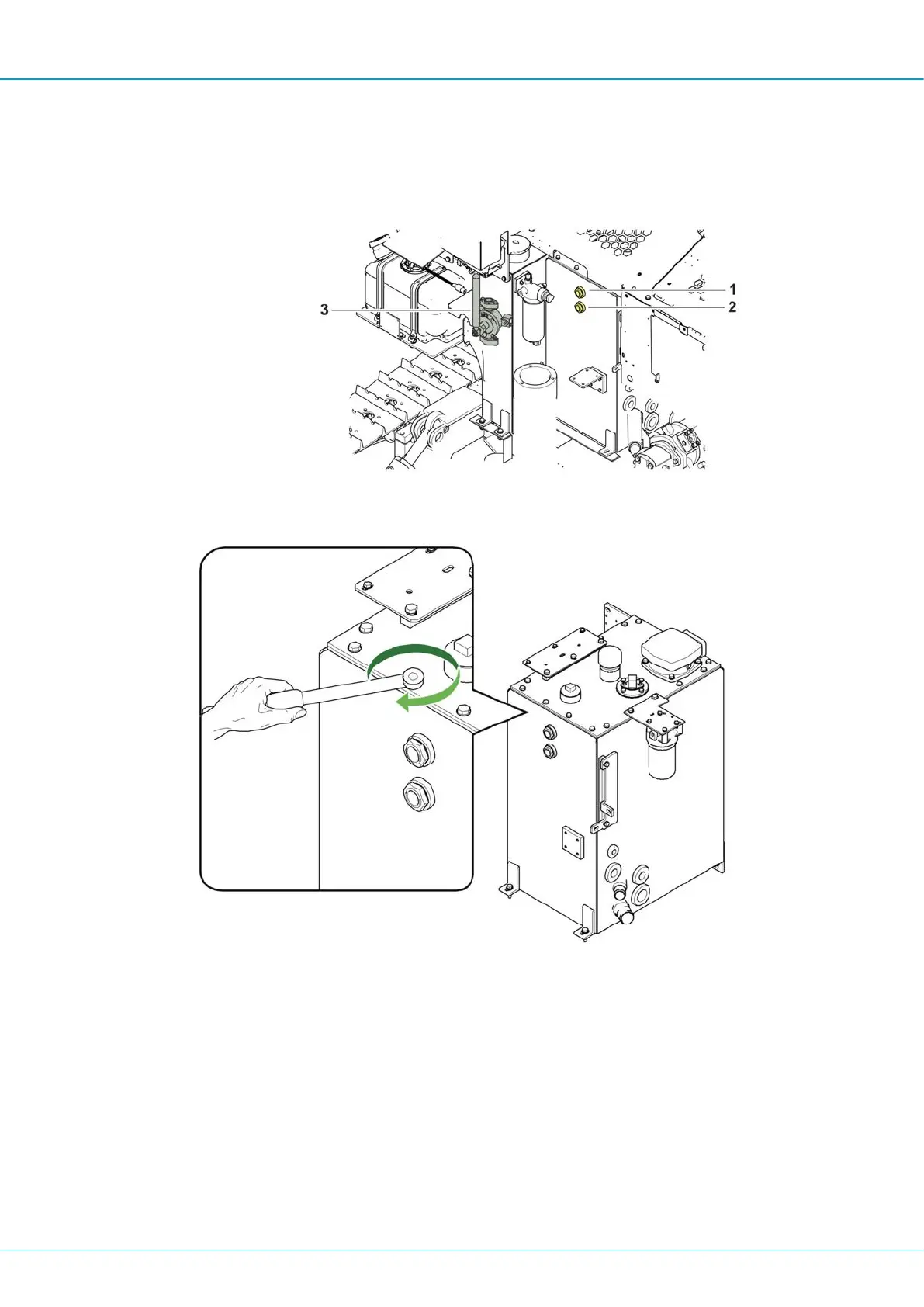

Check the hydraulic oil level (1 and 2). The hydraulic oil level can be read in the sight
glass on the front of the hydraulic oil tank. The lower sight glass (2) must be full and
the upper sight glass (1) must be half full.
2.
Fill with the hand pump (3) if necessary.
10.7.6 Check Hydraulic Tank Cover Plate
n
Check the torque on the cover plate on the hydraulic tank. Tightening torque 11 Nm
(8 lbf.ft) on all bolts of the cover plate.
