Atlas Copco FlexiROC T30 R Maintenance

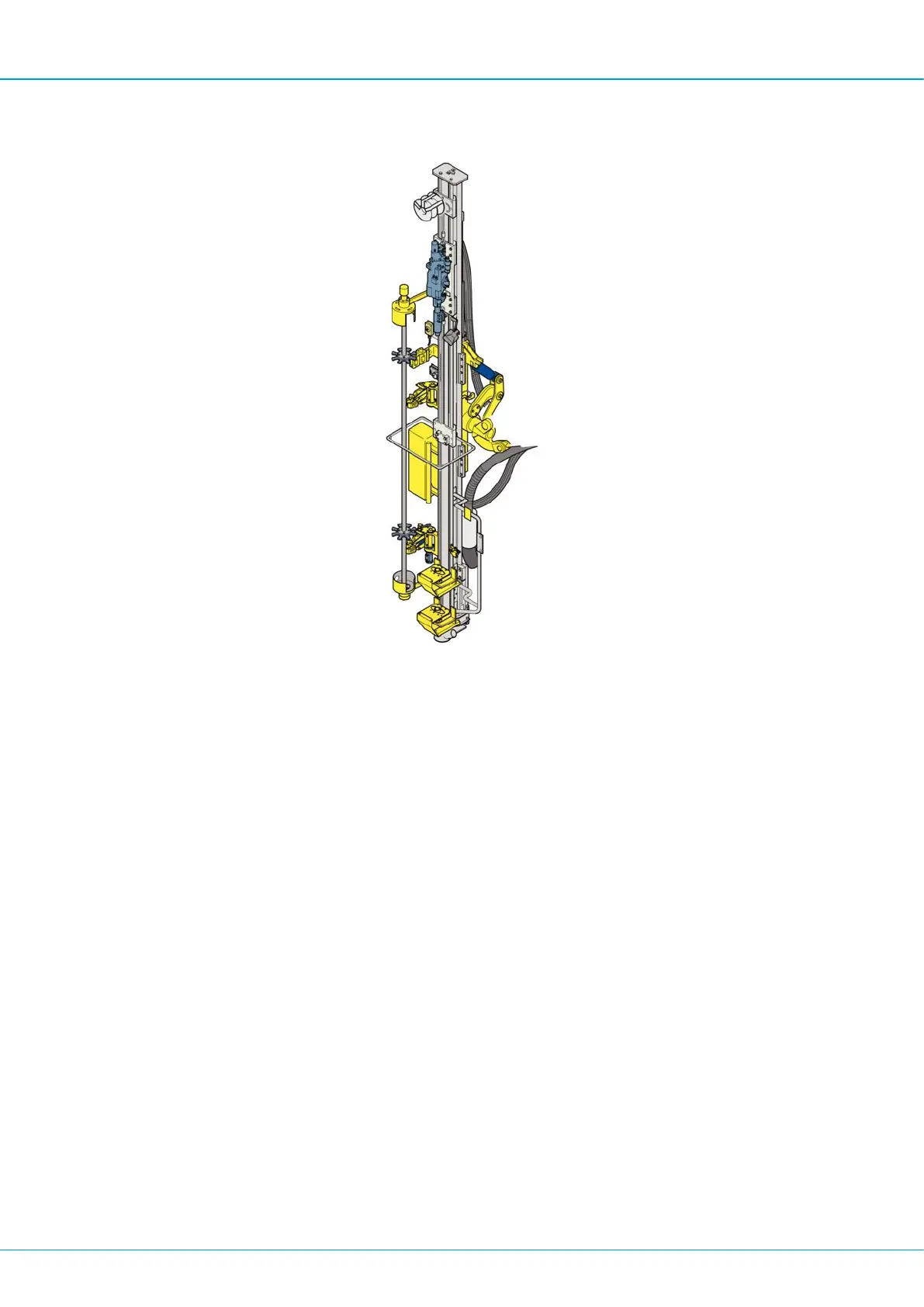

FlexiROC T30 R 7 Feed Unit
24 No: 3629357835.1.3629419915 en-US
7.2 2000 and 6000 Series
7.3 Assembling Rock Drill
Precondition
p
The feeder must be clean from corrosion inhibitor.
1.
Remove burrs, paint, or other coatings from the cradle and the contact surfaces on
the rock drill.
2.
Remove the mounting bolts from the cradle.
3.
Position the rock drill with any shims on the cradle and install the bolts. Make sure
that the rock drill is firmly in place.
4.
Tighten the rock drill into place. Tighten the bolts (four pieces) alternately until a
torque of 200 Nm (20 kgf m) has been attained.
5.
Connect and install the hoses to the rock drill.
6.
Adjust slide rails and hoses according to the directions in this instruction manual.
7.3.1 Checking Rock Drill After Assembling After Four Hours
1.
Check and tighten all bolted joints.
2.
Check and adjust the tension of the ropes.
3.
Check all hoses for leaks.
4.
Tighten and adjust the tension of the hoses if necessary.
5.
Check and adjust the slide rail alignment on the feed beam.
