Atlas Copco FlexiROC T30 R - Check Bushing for Wear

FlexiROC T30 R 16 Track Frames
113 No: 3629357835.1.3629419915 en-US
Specification Metric Data Imperial U.S Data
New Chain 70 mm 2.76 in
Wear 25% 69.8 mm 2.75 in
Wear 50% 69.5 mm 2.74 in
Wear 75% 69.3 mm 2.73 in
Wear 100% 69 mm 2.72 in
Also see about this
2 Procedures for Checking Wear [}109]
16.3.8 Check Bushing for Wear
n

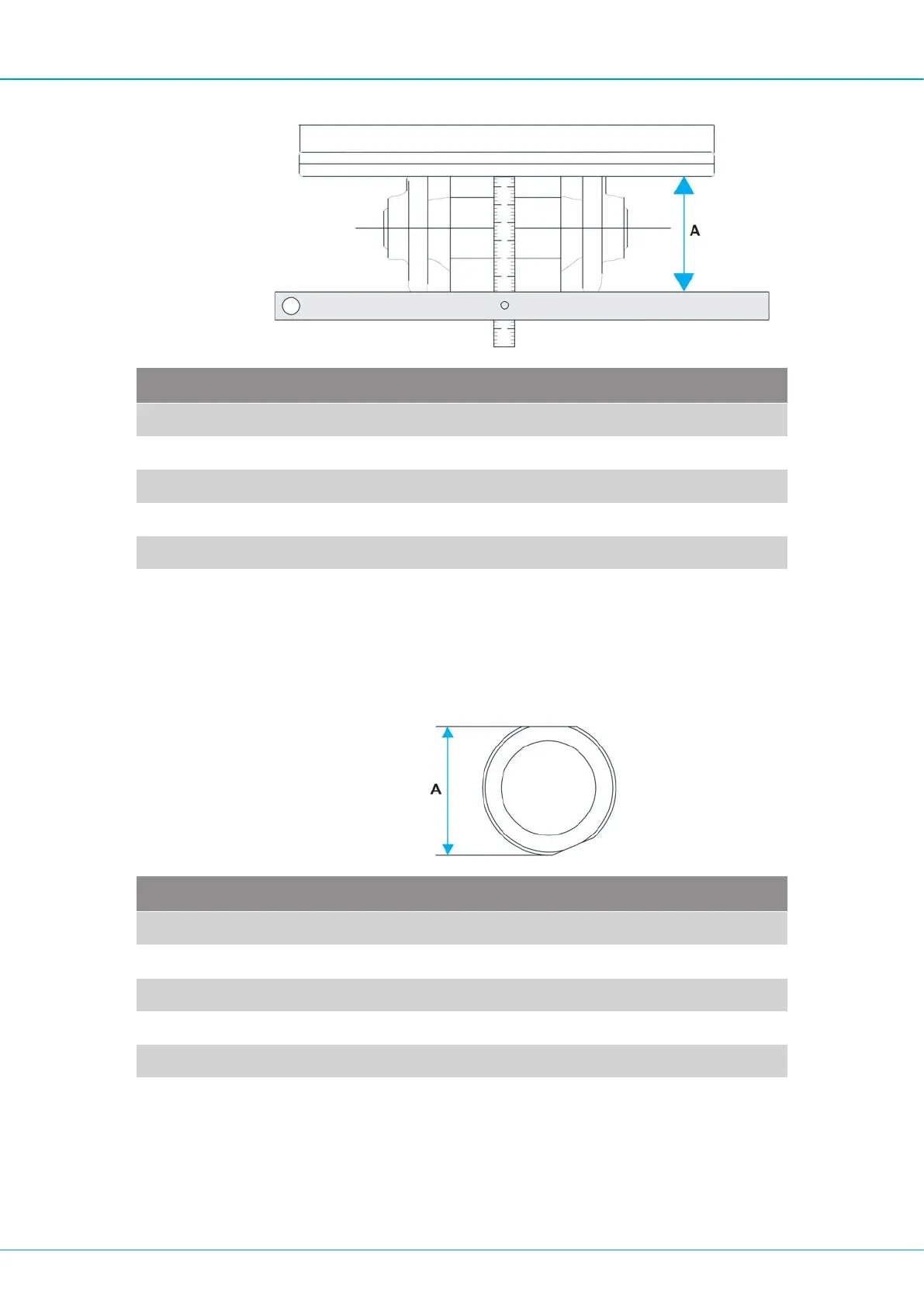

Check the wear by measuring the dimension (A) for the bushing.
Specification Metric Data Imperial U.S Data
New Bushing 37 mm 1.46 in
Wear 25% 36.9 mm 1.45 in
Wear 50% 36.8 mm 1.45 in
Wear 75% 36.7 mm 1.44 in
Wear 100% 36.6 mm 1.44 in
Also see about this
2 Procedures for Checking Wear [}109]
