FlexiROC T30 R 7 Feed Unit

38 No: 3629357835.1.3629419915 en-US

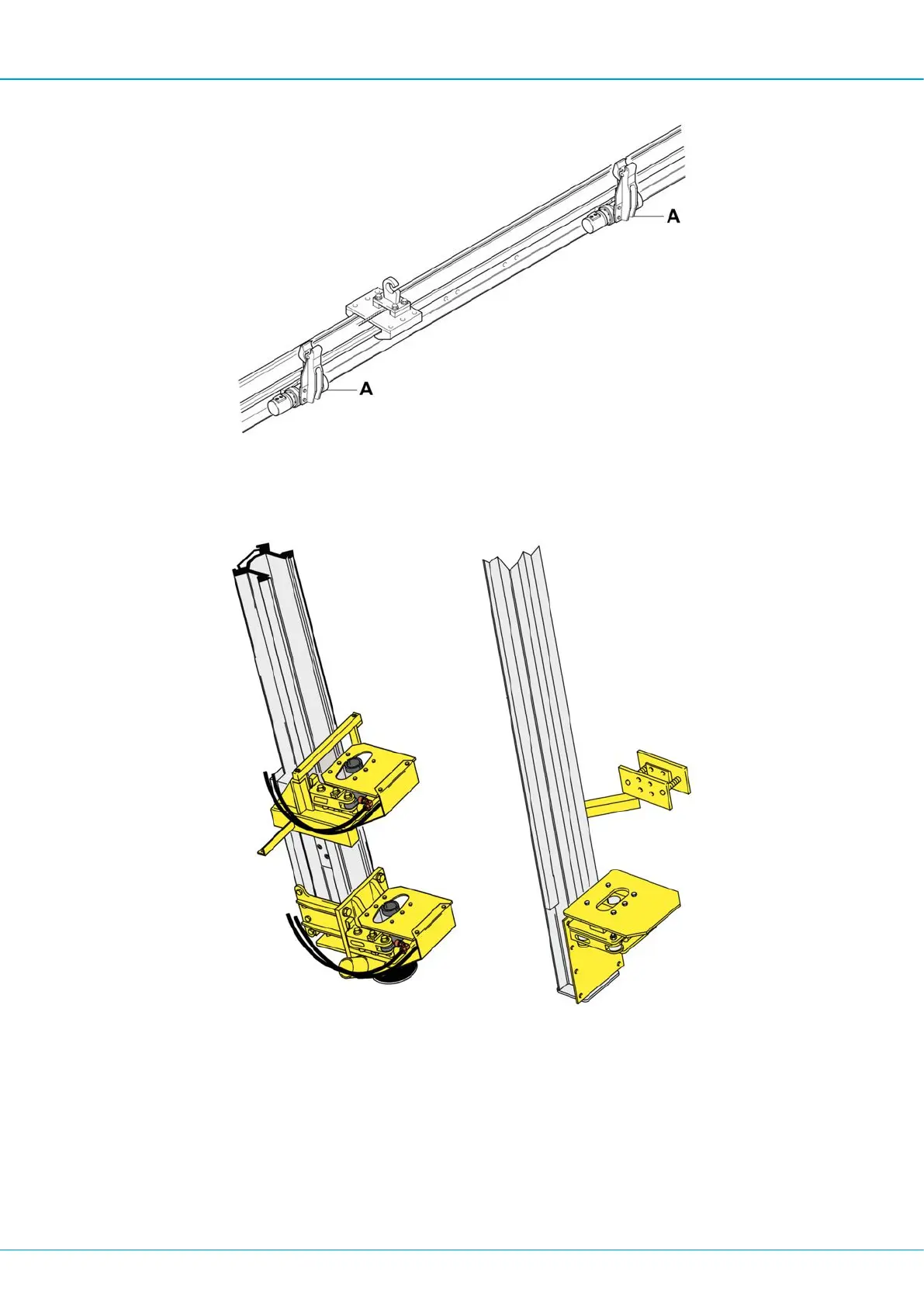

Pump lubricant into the grease nipples (A).

7.15 Tighten Bolted Joints

Tighten the bolted joints on the drill rod support.
