Atlas Copco FlexiROC T30 R Maintenance

FlexiROC T30 R 16 Track Frames
112 No: 3629357835.1.3629419915 en-US
Specification Metric Data Imperial U.S Data
Wear 25% 17.4 mm 0.69 in
Wear 50% 16.8 mm 0.66 in
Wear 75% 16.2 mm 0.64 in
Wear 100% 15.6 mm 0.61 in
Also see about this
2 Procedures for Checking Wear [}109]
16.3.6 Check Track Shoe for Wear
Precondition
n

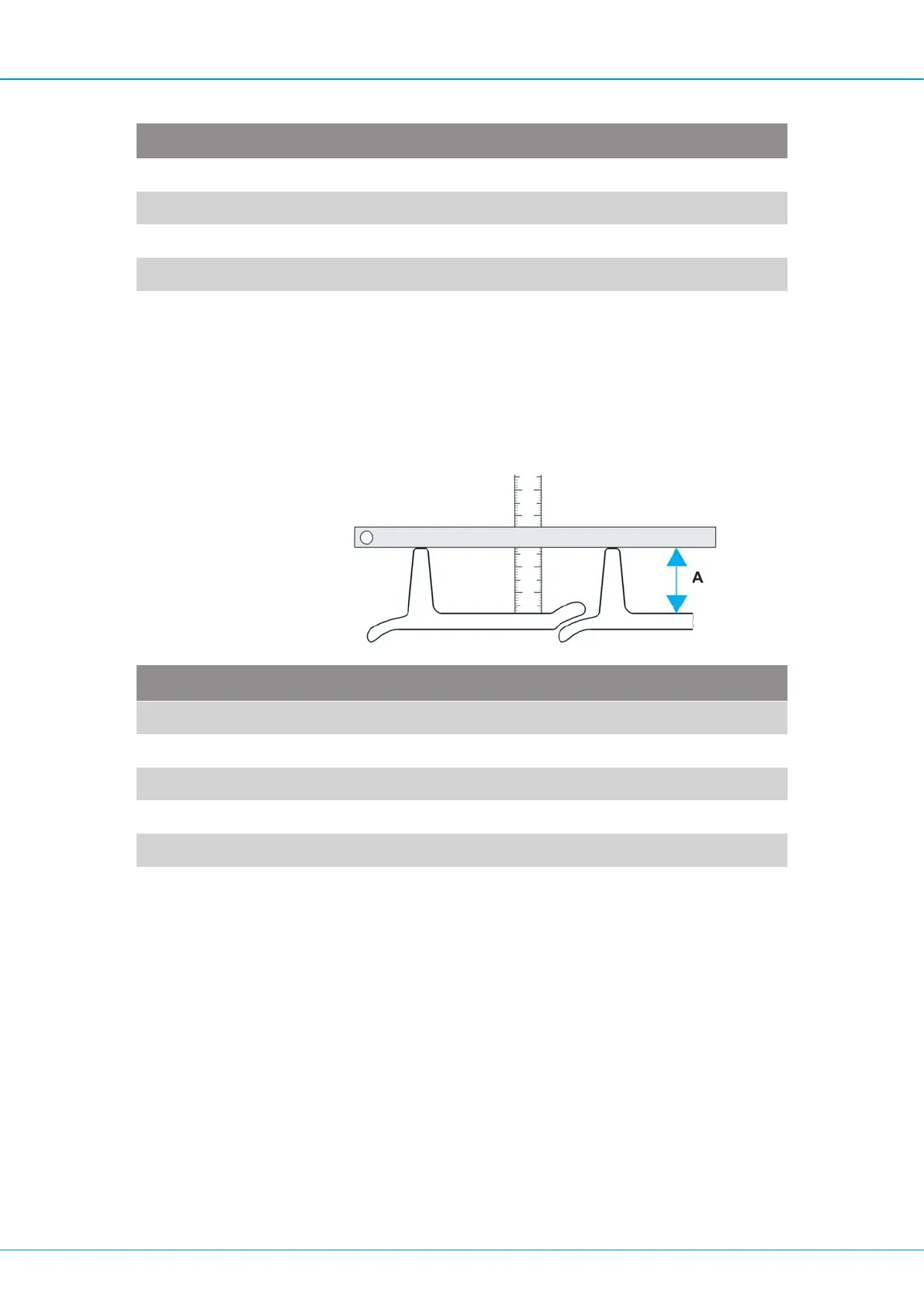

Check the track shoe wear by measuring the distance (A) between the top and bot-
tom of the track shoe.
Specification Metric Data Imperial U.S Data
New Track Shoe 42.5 mm 1.67 in
Wear 25% 41 mm 1.61 in
Wear 50% 39.5 mm 1.56 in
Wear 75% 38 mm 1.50 in
Wear 100% 36.5 mm 1.44 in
Also see about this
2 Procedures for Checking Wear [}109]
16.3.7 Check Track Link Depth for Wear
n
Check the wear by measuring the dimension (A) for the chain.
