FlexiROC T30 R 7 Feed Unit
40 No: 3629357835.1.3629419915 en-US
7.17 Check Condition of Feed
n

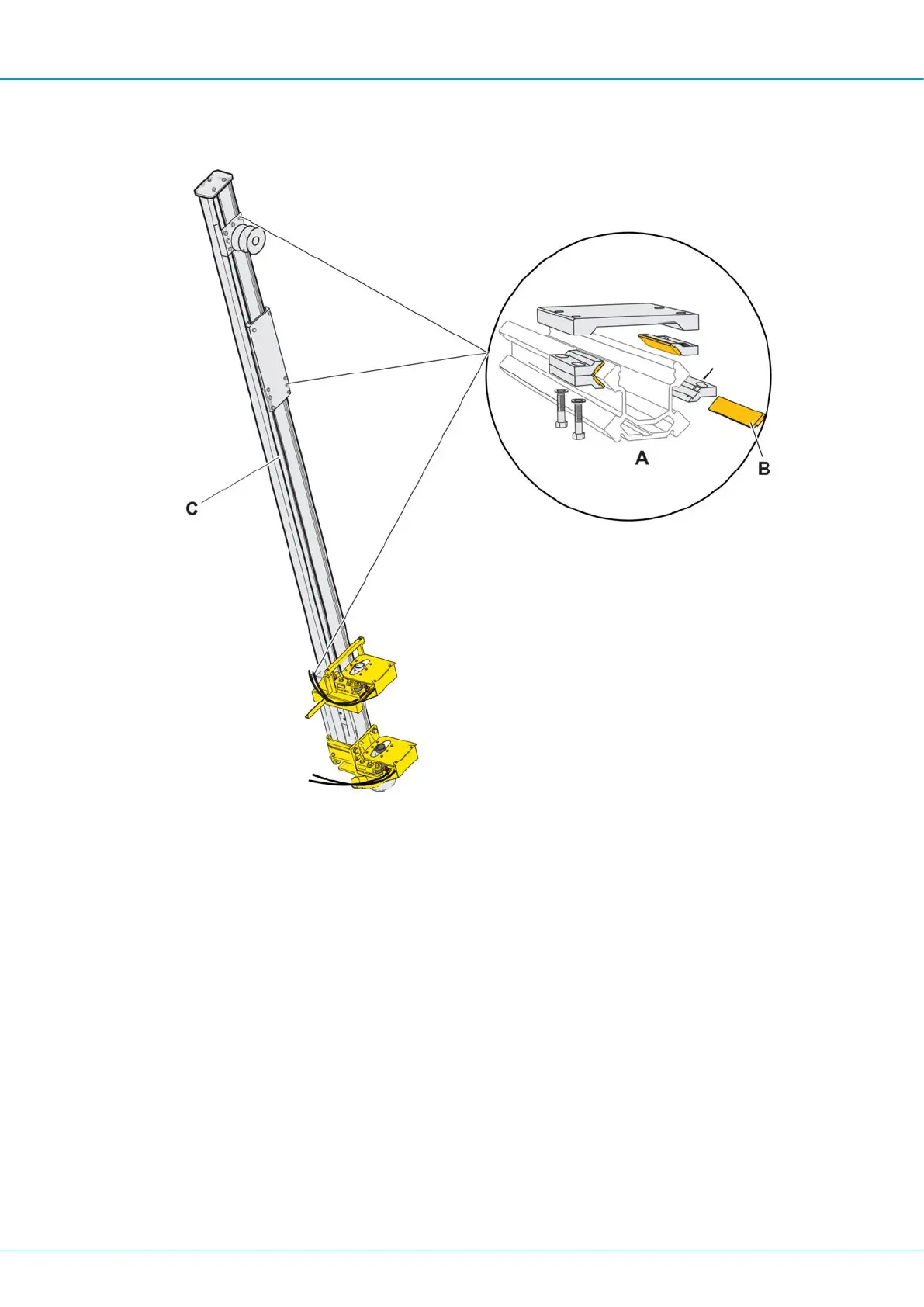

Check clearance, attachment, and tightening torque 185 Nm (136 lbf ft) on the slide
rails (A). Maximum clearance 2–4 mm (0.08-0.16 inches).
n
Check wear on the slide pieces (B). Minimum thickness 4 mm.
n
Check attachment and damage on the feed cylinder (C).
