3.5 Transport
The instrument must be transported only by qualified expert
personnel. For transport, do not lift the instrument at the
front or side doors.
NOTE - Lift points:
The instrument must be lifted only using
the lift points shown in Fig. 1.
3.6 Space requirements
Install the instrument only onto a sufficiently stable, non-
combustible floor and align it horizontally.
• Weight of the instrument: approx 280 kg
NOTE - Ceiling load-bearing capacity:
If several instruments are to be installed in
an operating room, observe the static
load-bearing capacity of the ceiling.
To ensure the accessibility of the instrument for repair, ser-
vice, and maintenance work, keep sufficient distances
around the instrument (min 1 m on each side, see Fig. 2):
• Instrument dimensions:
900 x 780 x 1800 mm (W x D x H)
CAUTION - Instrument overheating!
The air exchange of the instrument is
achieved via air inlet and air outlet open-
ings at the instrument ceiling and at the
side vent openings.
If the air exchange is blocked, the con-
stant conduction of tests will be impaired
because the safety instruments will shut
the instrument off. Also, the repeated
shut-on/shut-off resulting thereof will
shorten the life of the involved instrument
components.

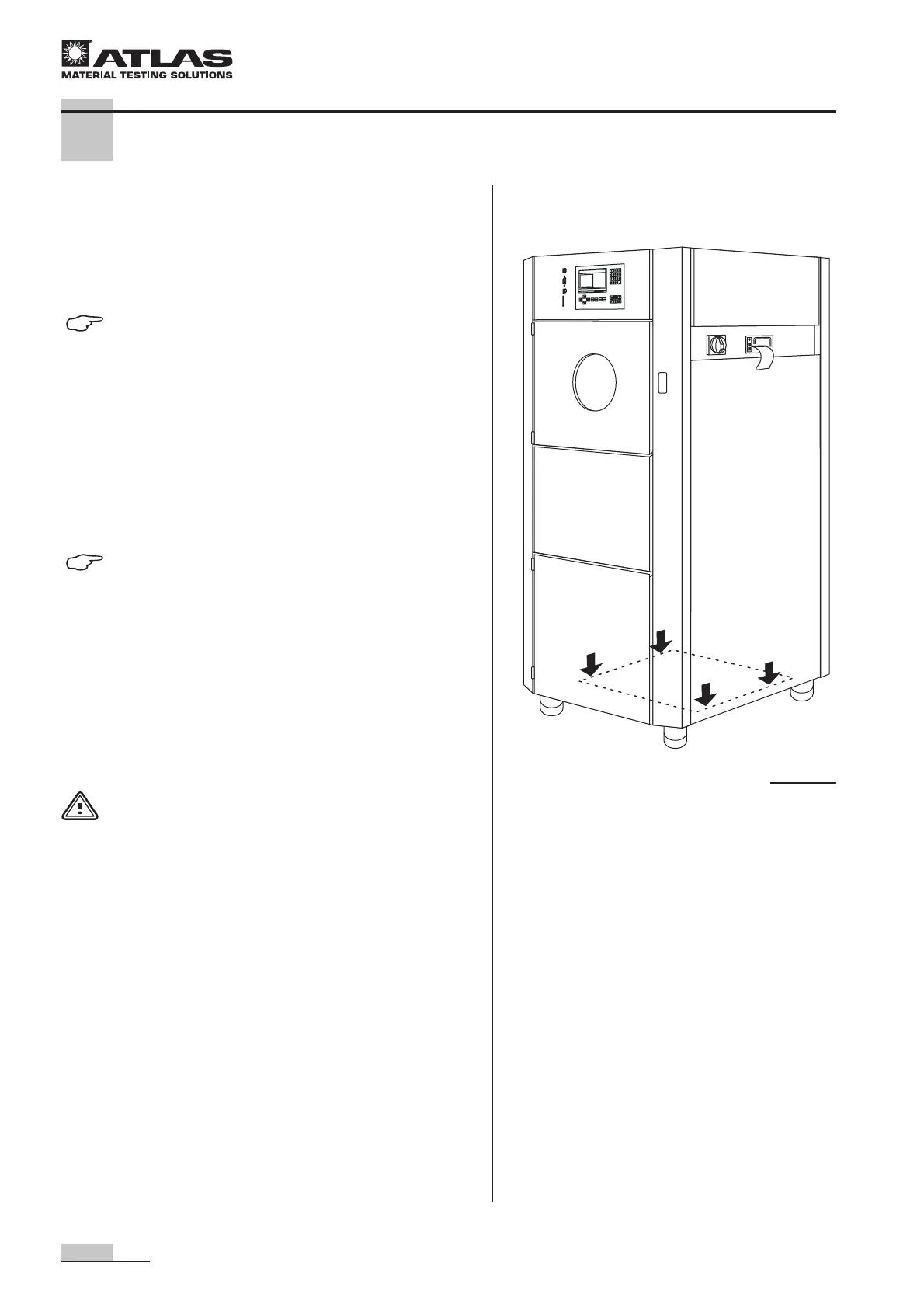

Fig. 1
