Operating Instructions Xenotest
®
150 S+
7
Operation
7.1
Menu structure of the instrument control

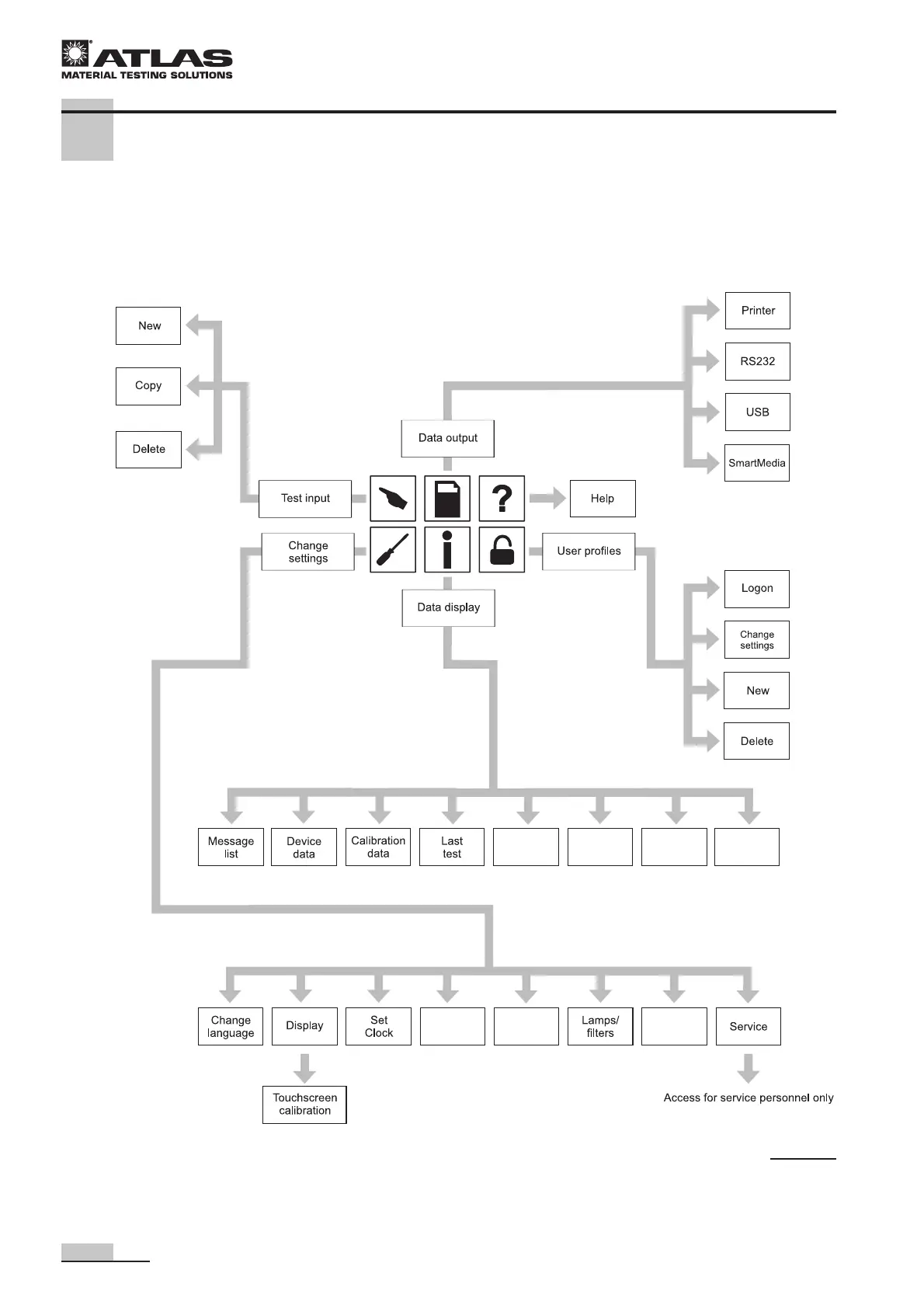

Fig. 30:
Overview of the menu structure of the program modules and of the pertaining
submenus.
Fig. 30
43
