4.3 View of the test chamber

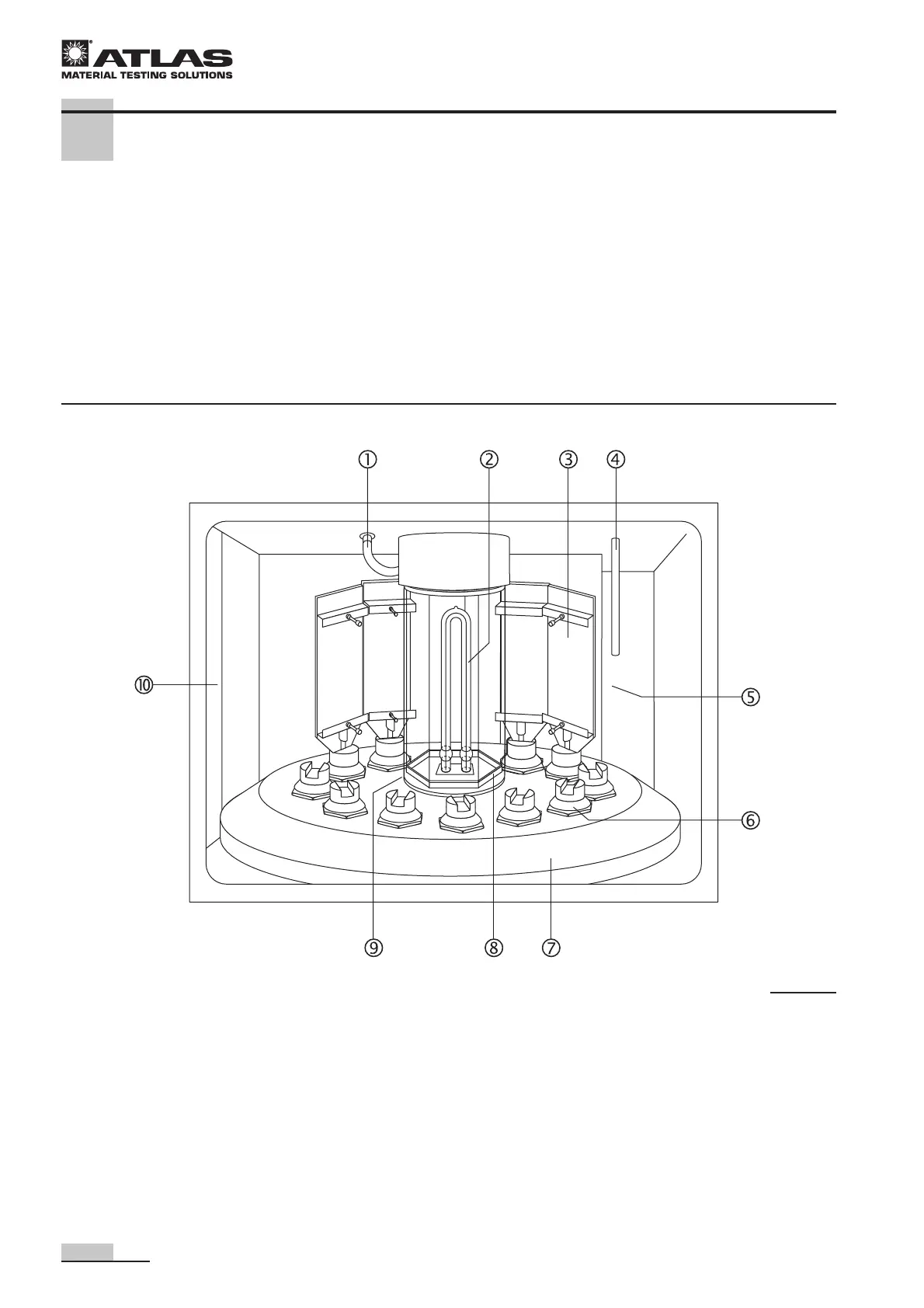

Functional units in the test chamber, Fig. 5:
1 Misting wand for misting samples
2 Xenon lamp for irradiating material samples
3 Sample holder for holding samples
4 Integral sensor for measuring test chamber tempe-
rature and relative humidity within test chamber
5 Air duct for air supply into test chamber
6 Sample holder retainer
7 Sample carousel for rotating samples around
xenon lamp
8 Filter cartridge for creating specific light
9 Exterior cylinder
A Exhaust air opening for removing the heated test
chamber air
