6.3.1 Removing the xenon lamp

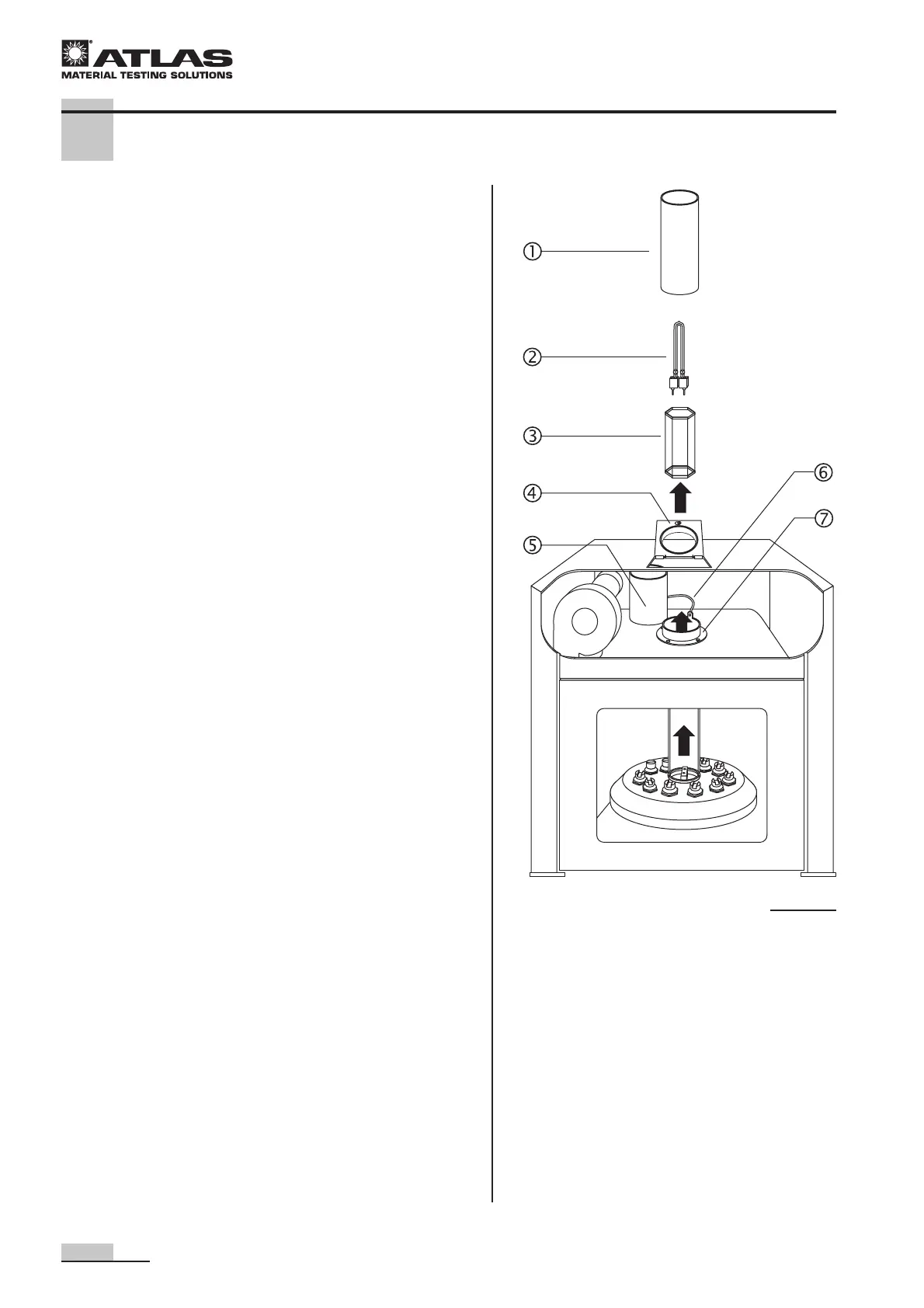

1. Fig. 16: Remove the connector 1 for the exhaust
duct or technical ventilation.
2. Flip the exhaust cover with the connecting piece 4
up.
3. Lift the spacer tube 5 off the flange tube 7 and put it
aside. The spacer tube is merely pushed onto the
flange tube, but is connected to it by the ground wire 6.
4. Pull the filter lantern 3 up and out of the top of the
exhaust duct.
5. Carefully grasp the used xenon lamp 2 at the upper
arc and pull it up and out of the lamp socket.
6 Start-up
Fig. 16
