PREPARATION
Power requirements
29

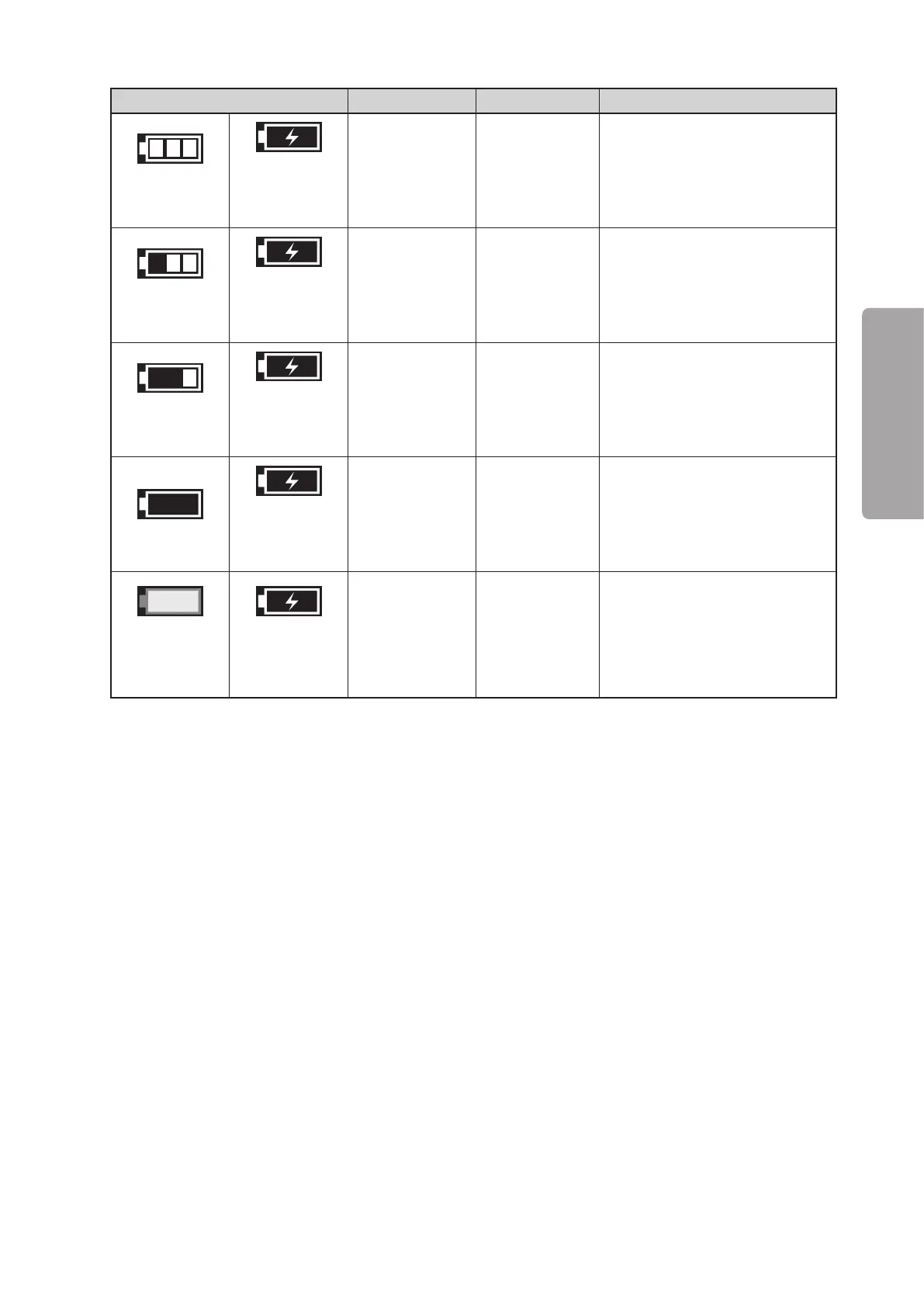

Indicator Indication Name Charging status of battery
A white frame
with 3 lit cells
A white frame
with a charg-
ing symbol
Indicators are lit
alternately
Remaining
battery level 3
(charging)
The battery is charging.
The battery level is somewhat
low.
A white frame
with 2 lit cells
A white frame
with a charg-
ing symbol
Indicators are lit
alternately
Remaining
battery level 2
(charging)
The battery is charging.
The battery level is considerably
low.
A white frame
with 1 lit cell
A white frame
with a charg-
ing symbol
Indicators are lit
alternately
Remaining
battery level 1
(charging)
The battery is charging.
The battery level is very low.
A white frame
A white frame
with a charg-
ing symbol
Indicators are lit
alternately
Remaining
battery level 0
(charging)
The battery is charging.
Battery has about 25% charge re-
maining.
A red frame
with a yellow
lit cell
A white frame
with a charg-
ing symbol
Indicators are lit
alternately
Low battery
(charging)
The battery is charging.
Battery has no remaining
charge. A low battery alarm does
not occur because the battery is
charging.
