INSTALLATION
710-14888-00C EMX4i User Manual 29

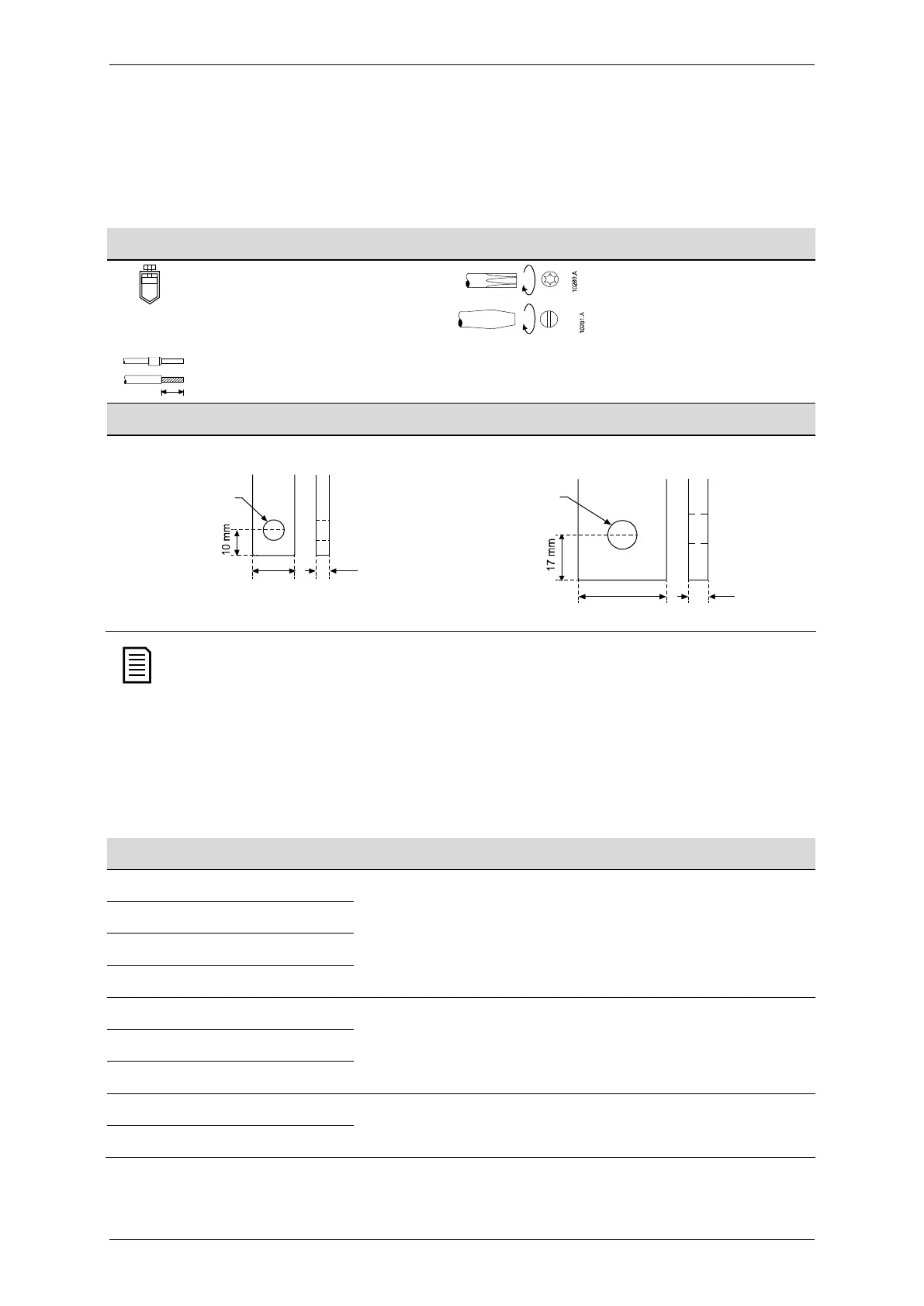

The power input and output terminals for EMX4 are at the bottom of the unit.
• Models EMX4i-0024B~EMX4i-0135B use cage clamps. Use only copper
stranded or solid conductors, rated for 75 ºC or higher.
• Models EMX4i-0184B~EMX4i-0580B use busbars. Use copper or
aluminium conductors, stranded or solid, rated for 60 ºC/75 ºC.
EMX4i-0024B~EMX4i-0135B
05966.E
Cable size:
6-70 mm
2
(AWG 10-2/0)
Torque: 4 Nm (2.9 ft-lb)
Torx T20 x 150
Flat 7 mm x 150
112
90 .A
14 mm (0.55 inch)
EMX4i-0184B~EMX4i-0250B
EMX4i-0352B~EMX4i-0580B
19 Nm (14.0 ft-lb)
66 Nm (49.0 ft-lb)
6 mm
20 mm
9 mm
(M8)
17045.A
6 mm
34 mm
13 mm
(M12)
17047.A
NOTE
If the installation requires large diameter cables, it is possible to complete
each termination with two smaller cables, one on each side of the busbar.
UL Compliant Installation
For models EMX4i-0184B to EMX4i-0580B to be UL compliant, you must use the
recommended pressure terminal/connector.
Model
Recommended lugs part No.
EMX4i-0184B
EMX4i-0200B OPHD 185-10
EMX4i-0229B
EMX4i-0250B
EMX4i-0352B
EMX4i-0397B OPHD 150-12
EMX4i-0410B
EMX4i-0550B
OPHD 240-12
EMX4i-0580B
