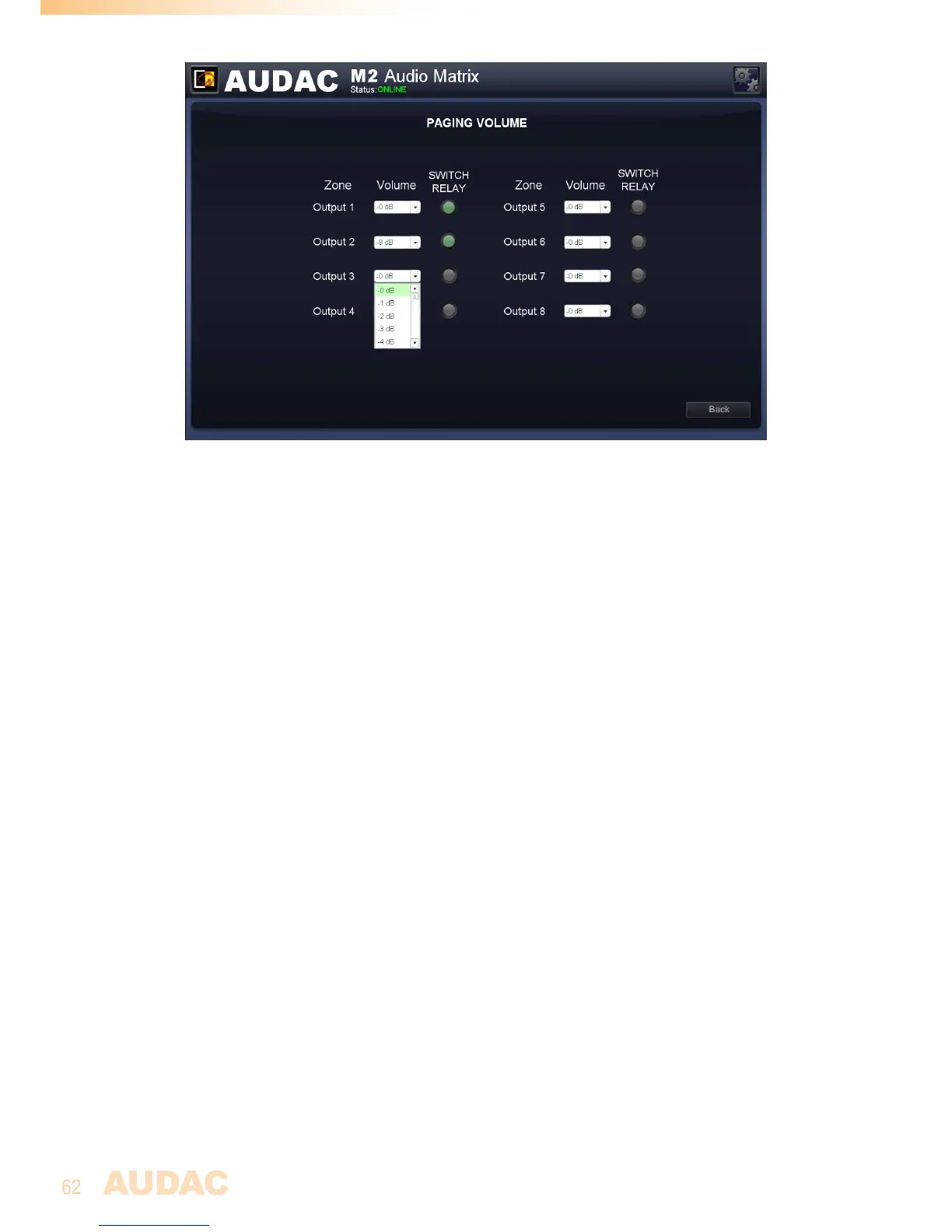

M2 Paging Volume
APM configuration
ThepagingsettingsarestoredinsidetheAPM’sinternalmemory.Forconfiguration,
theAPMshouldbeconnectedtooneofthePIports(PI1toPI8)oftheM2,and
theconfigurationshouldbedoneusingthewebbaseduserinterface.Thepaging
configurationsettingscanbefoundinthe‘Setup’menuunder‘Peripheralconfiguration’
andthenclick‘Paging’.
ThesettingfortheconfigurationoftheARU’sareshownontheleftsideofthewindow,
whilethesettingfortheconfigurationoftheAPM’sareshownontherightsideofthe
window.Followtheprocedurebelowtomakeyourpagingsystemworkproperly.
1)Selecttheaddresswhichyouwanttoassigntoyourpagingconsole.
Selecttheaddressusingthedropdownlist,andclickthe“SetAddress”button.Now,the
Push-To-TalkbuttonsonallconnectedAPM’swillstarttoblink.Afterpushingthe“PTT”
(Pushtotalk)button,theaddresswillbeassignedtotheselectedAPM.
(For more information regarding the APM address, see the ‘Priority’ header described
above)
Afterthisbuttonhasbeenpressed,theM2willdetectthepagingconsoleandthe
configurationsettingsforthepagingconsolewillbedisplayed.
Ontheweb-basedinterface,besidesthe‘Change’and‘Newconfiguration’buttons,two
dropdownlistswillbeshownwherebythevolumefortheChimeandMicrophonecanbe
setindividually.ThisallowsyoutosettheratiobetweenthevolumeoftheChimeandthe
voicemessage.Forexample,insomecircumstancesitcanbedesirabletohavealouder
volumeofthechimetocatchtheattentionoftheaudience.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
