M2 Paging console address assignment
2)SelectthePriority,thenumberoflayersandEnable/Disablechime.

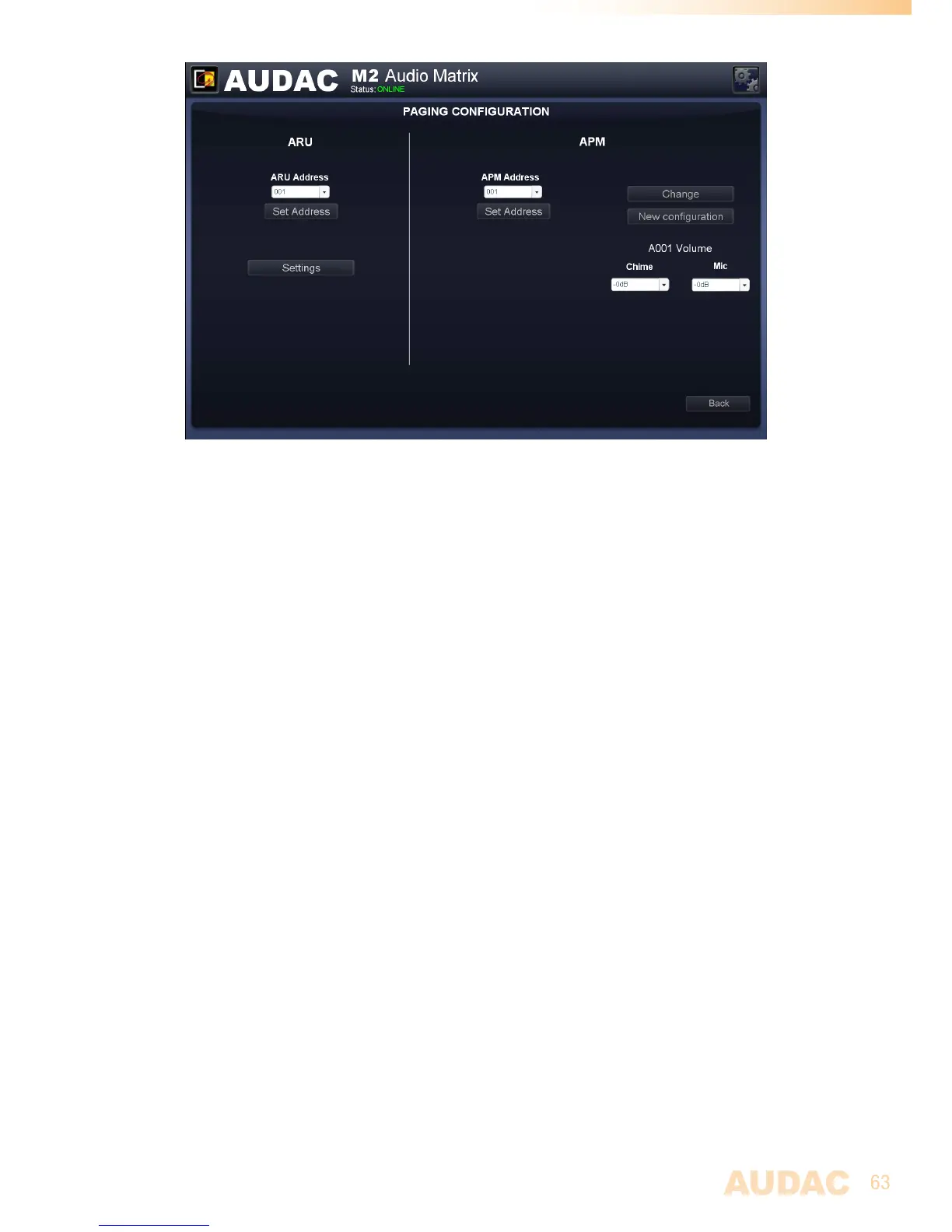

Whenapagingconfigurationshouldbemadetoanewinstallation,clickthe‘New
configuration’button.IncaseachangeshouldbemadetoanexistingAPMinstallation,
clickthe‘Change’button.Whenclickingthe‘Newconfiguration’button,alldefault
settingswillbeloaded,whilewhenclickingthe‘Change’button,allexisitingsettingsfrom
theAPMwillbeloaded,andchangescanbemadetotheexistingsettings.
The‘Generalconfiguration’windowshowsdifferentdropdownlistsonwhichsettings
canbemade.The‘ConnectionInformation’dropdownlistindicatestheaddressof
thedevicewherethepagingconsoleisconnectedto.Incaseonlyonedeviceisused
intheapplication,address‘M001’shouldalwaysbeselectedinthisfield.Incase
multipledevicesarelinkedusingthefiberinterconnectionmodules,theaddressforthe
correspondingdeviceshouldbeshownhere.
Inthe‘Port’dropdownlist,thenumberofthecorrespondingPIportonwhichthepaging
consolehasbeendetectedwillbeshownhere.
Inthe‘Priority’dropdownlist,theprioritylevelfortheconnectedpagingconsolecanbe
set.Asdescribedbefore,thelowertheaddressorprioritynumber,thehigherthepriority.
Prioritynumber‘1’willalwayshavehighestprioritywhileincreasingnumberswillhave
decreasingpriority.
IncaseanAPM108orAPM116isconnected,theconfigurationofthebuttonscanbedone
indifferentlayers.Thenumberoflayerscanbeselectedbyusingthe‘Layers’dropdown
list.
Usingthe‘PTTChime’checkbox,theChimewhichprecedestheannouncedmessagecan
beEnabledorDisabled.Incasethe‘PTTChime’checkboxischecked,themessagewill
beplayedafterplayingthechime.Incasethischeckboxisn’tchecked,thespeakers’s
announcementwillimmediatelybehearduponpressingthePush-To-Talkbutton.
