Play message:
Usingtheplaymessagefunction,messagesstoredintheAPM’smemory,suchas
emergencyorcommercialannouncementscanbeannounced.Thestoredmessagesare
showninthe‘Message’dropdownlistfromwhichthedesiredmessagecanbeselected.
Thepriorityofthemessageisbasedontheprioritynumberwhichcanbesetinthe
‘Priority’dropdownlist,andisnotrelatedtotheAPMaddress.Thisway,high-priority
emergencymessagescanbeplayedwithalow-priorityAPM.
Thelowertheprioritynumberis,thehigherthepriorityoftherelatedmessage.

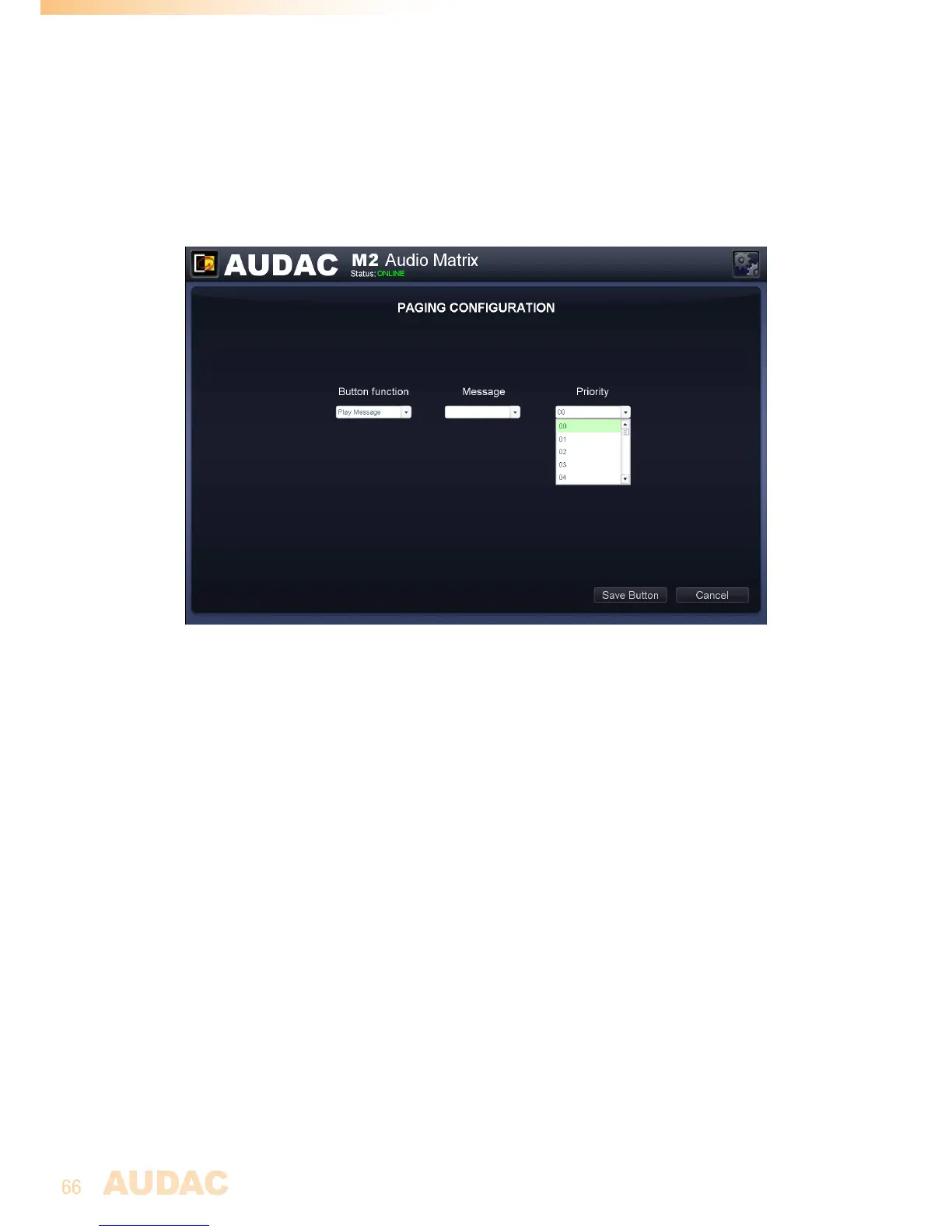

M2 Paging Play Message selection
Pulse / Toggle Relay:
Usingthe‘PulseRelay’and‘ToggleRelay’functions,theinternalrelaysoftheM2and/or
externalconnectedrelayunits(ARU)canbecontrolled.Thetogglerelayfunctionwillmake
thecurrentrelayswapstate.Whenthecurrentrelaystateisopen,itwillchangetoclosed
aftertoggle.Whenthecurrentrelaystateisclosed,itwillchangetoopenaftertoggle.
Thecontrollablerelaysshouldbeaddedtothe‘SelectedRelays’listbox.Multiplerelays
canbesimultaneouslycontrolledbyaddingthemtothislistbox.
Therightsideofthewindowcontainstwodropdownlistsfromwhichthecontrolledrelays
canbeselected.Theaddressofthedevicecontainingtherelayshouldbeselectedinthe
firstlistbox,whilethesecondlistboxindicatesthenumberoftherelaytobecontrolled.
IncasetheinternalM2outputrelaysshouldbecontrolled,thecorrespondingM2address
(startingwith‘M’)shouldbeselected.Incasetherelaysfromanexternalconnectedrelay
unit(ARU)shouldbecontrolled,theaddressoftheARUunit(startingwith‘S’)shouldbe
selected.Thesecondlistboxshouldbeusedtoassignwhichspecificrelayofthedevice
shouldbecontrolled.
Aftertheaddressassignmentfortherelayhasbeendone,clickthe‘Add’buttonandthe
selectedrelaywillappearinthelistbox.
Repeatthisactionforeveryrelaywhichshouldbesimultaneouslycontrolled.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
