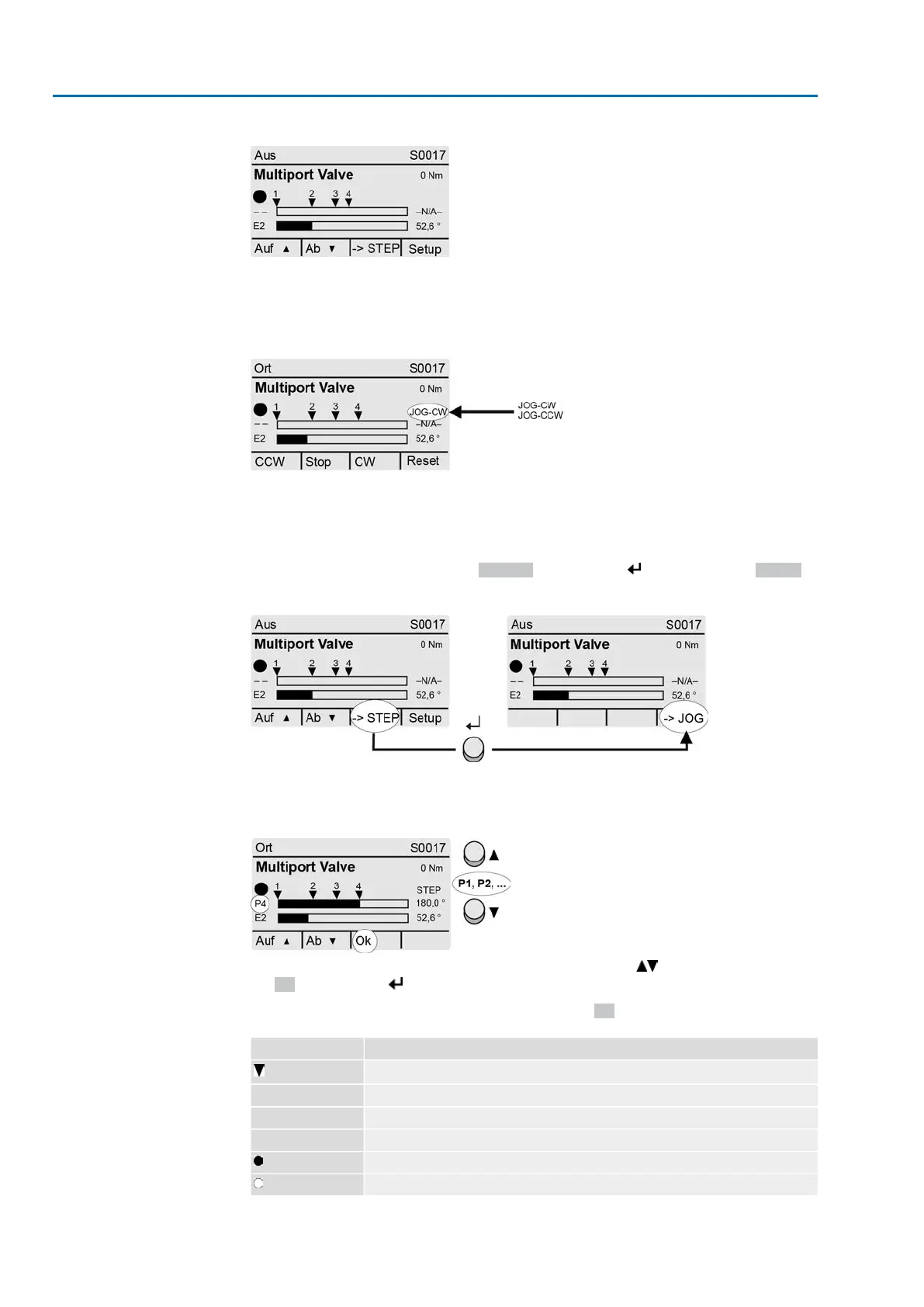

Figure 48: Status indication of multiport valve (selector switch in position OFF)
Operation in clockwise or counterclockwise direction:
When changing the selector switch to position Local control (LOCAL), the display
changes:
Figure 49: Status indication of multiport valve (selector switch in position LOCAL)
As a consequence, the valve can be operated into clockwise or counterclockwise
direction (display shows CW or CCW)
Direct operation to a position:
When selector switch is in position 0 (OFF), the function Direct operation to a position
via push buttons is activated via ->STEP (push button ) (display shows ->JOG).
Figure 50: Status indication of multiport valve (selector switch in position OFF)
When changing the selector switch to position Local control (LOCAL), the display
changes for selection of the desired position:
Figure 51: Status indication of multiport valve (selector switch in position LOCAL)
Select the desired position (P1, P2, ...) via push buttons and confirm selection
via Ok (push button ).
The operation is issued as soon as push button Ok is pressed.
Symbol
Set positions (of valve ports)
(P1, P2, ...) selected position (1, 2, ...)P
No position has been selected. / N/A
Actual position valueE2
Homeport (zero point) set
No homeport (zero point) has been set
To interrupt an operation (triggered operation command):
110
Actuator controls
Product variants AC 01.2/ACExC 01.2 Profinet
