AUMA AC 01.2 User Manual

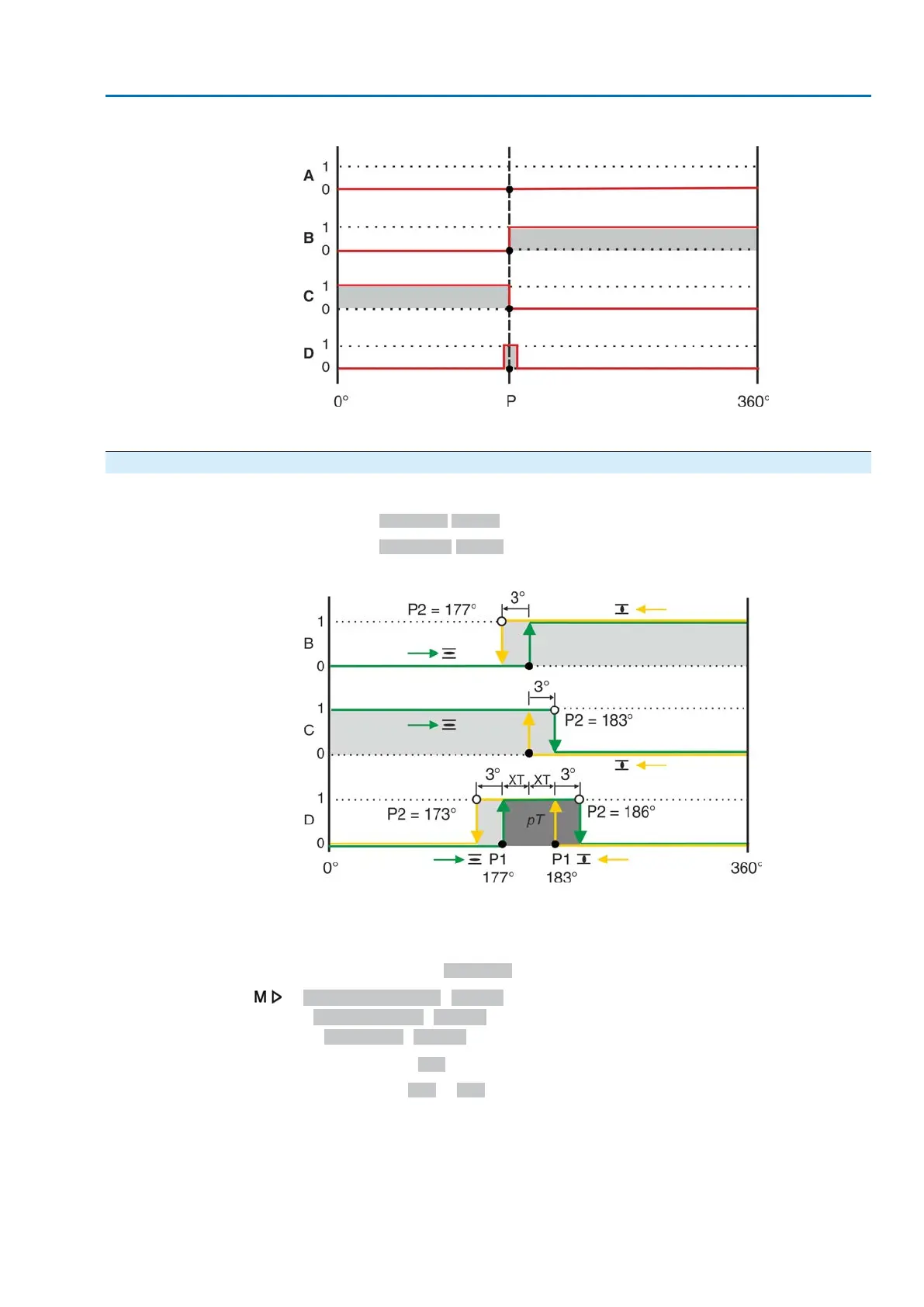

Figure 52: Signal behaviour of positions
Information
The set signal behaviour is valid for all positions.
12.1.12. Hysteresis for signalling intermediate positions: set
The hysteresis determines the tripping point.
Example
Parameter Position 4 M1153 is set to 180° (50 % of the travel).
Parameter Hysteresis M1148 is set to 3.0°.
Figure 53: Switching behaviour for signalling behaviours B, C, D and hysteresis 3.0°.
P1
Switch-on point (
●
)
P2
Switch-off point (○)
pT Pulse duration = 2 times XT + hysteresis
Required user level: AUMA (6).
Customer settings M0041
Multiport valve M1140
Hysteresis M1148
Default values: 0.5° for all 16 intermediate positions
Setting range:0.0° to 5.0° (degree)
113
Actuator controls
AC 01.2/ACExC 01.2 Profinet Product variants
