Backlight
The display is illuminated in white during normal operation. It is illuminated in
red in case of a fault.
The screen illumination is brighter when operating a push button. If no push
button is operated for 60 seconds, the display will become dim again.
3.3.1. Menu layout and navigation
Groups
The indications on the display are divided into 3 groups:

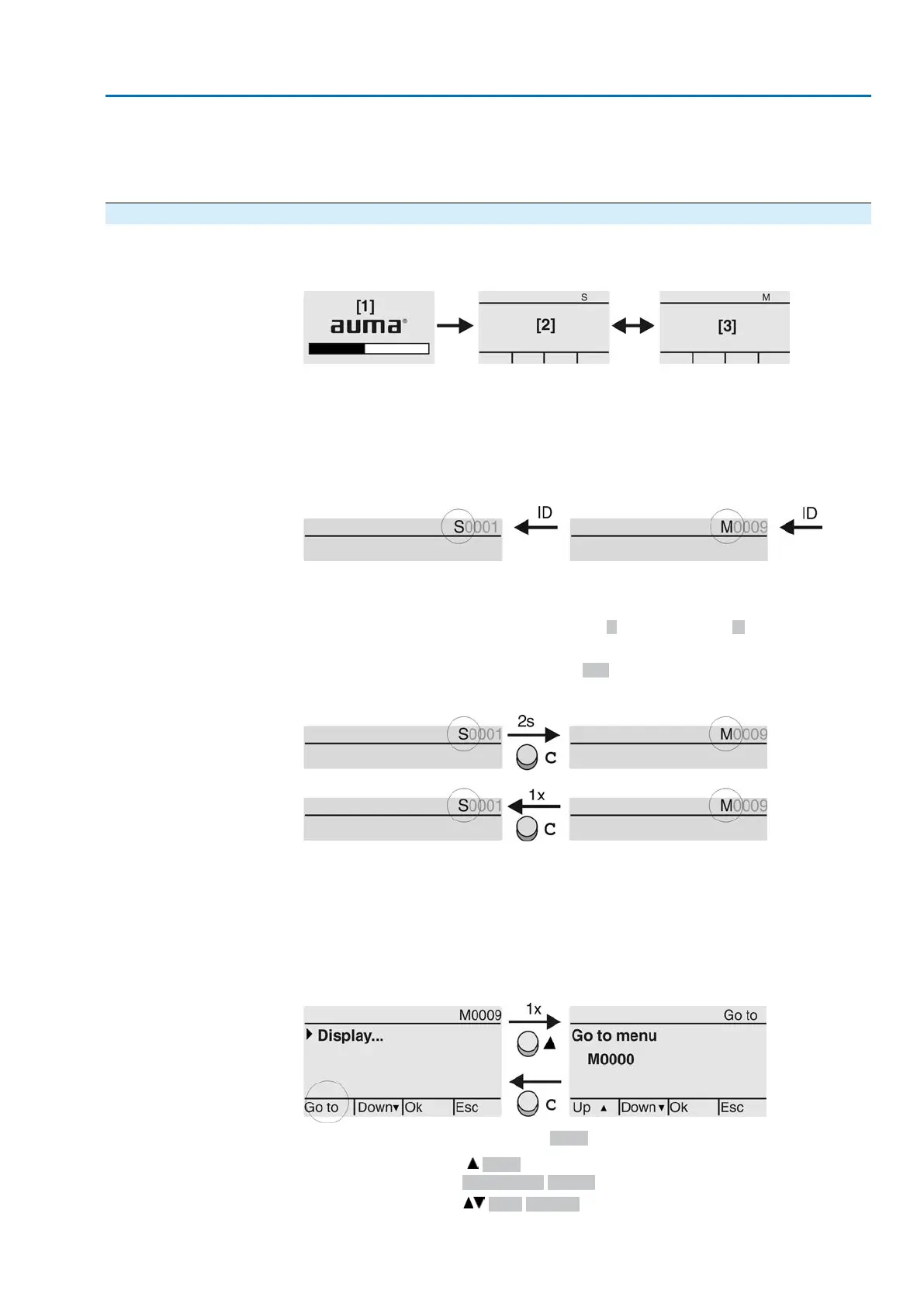

Figure 3: Groups
[1] Start menu
[2] Status menu
[3] Main menu
ID
Status menu and main menu are marked with an ID.
Figure 4: Marking with ID
S
ID starts with S = status menu
M
ID starts with M = main menu
Group selection
It is possible to select between status menu S and main menu M:
For this, set selector switch to 0 (OFF), hold down push button C for approx. 2
seconds until a screen containing the ID M... appears.
Figure 5: Select menu groups
You return to the status menu if:
the push buttons on the local controls have not been operated within 10 minutes
or by briefly pressing C
Direct display via ID
When entering the ID within the main menu, screens can be displayed directly (without
clicking through).
Figure 6: Direct display (example)
Display indicates in the bottom row: Go to
1.
Press push button Go to.
Display indicates: Go to menu M0000
2.
Use push buttons Up Down to select figures 0 to 9.
13
Actuator controls
AC 01.2/ACExC 01.2 Profinet Operation
