Characteristics M0313
Interval position-time M0805
Default value: 10 [s]
Setting values: 1 ... 3600 [s]
15.3.3. Temperature-time characteristic
Properties
Up to four temperature-time characteristics can be recorded unless the devices are
fitted with suitable sensors.
Conditions
●
For recording the temperature within the control unit:
MWG (magnetic limit and torque transmitter)
●
For recording the temperature within the motor:
additionally temperature sensor (PT 100) in the motor
●
For recording the temperature within the gear housing:
additionally temperature sensor (PT 100) in the gearing
Application
Evaluation of the temperature-time characteristics allows to gain knowledge about
the service conditions (ambient temperatures) of the actuator.
Display temperature-time characteristic
Asset Management M1231
Characteristics M0313
Temperature-time M0714
Up to four characteristics are shown in the display.
CONTROLS TEMPERATURE = temperature within the control unit
MWG TEMPERATURE = MWG temperature
MOTOR TEMPERATURE = temperature within the motor
GEAR TEMPERATURE = within the gear housing
Use push buttons Up ▲Down ▼ to change between available characteristics.

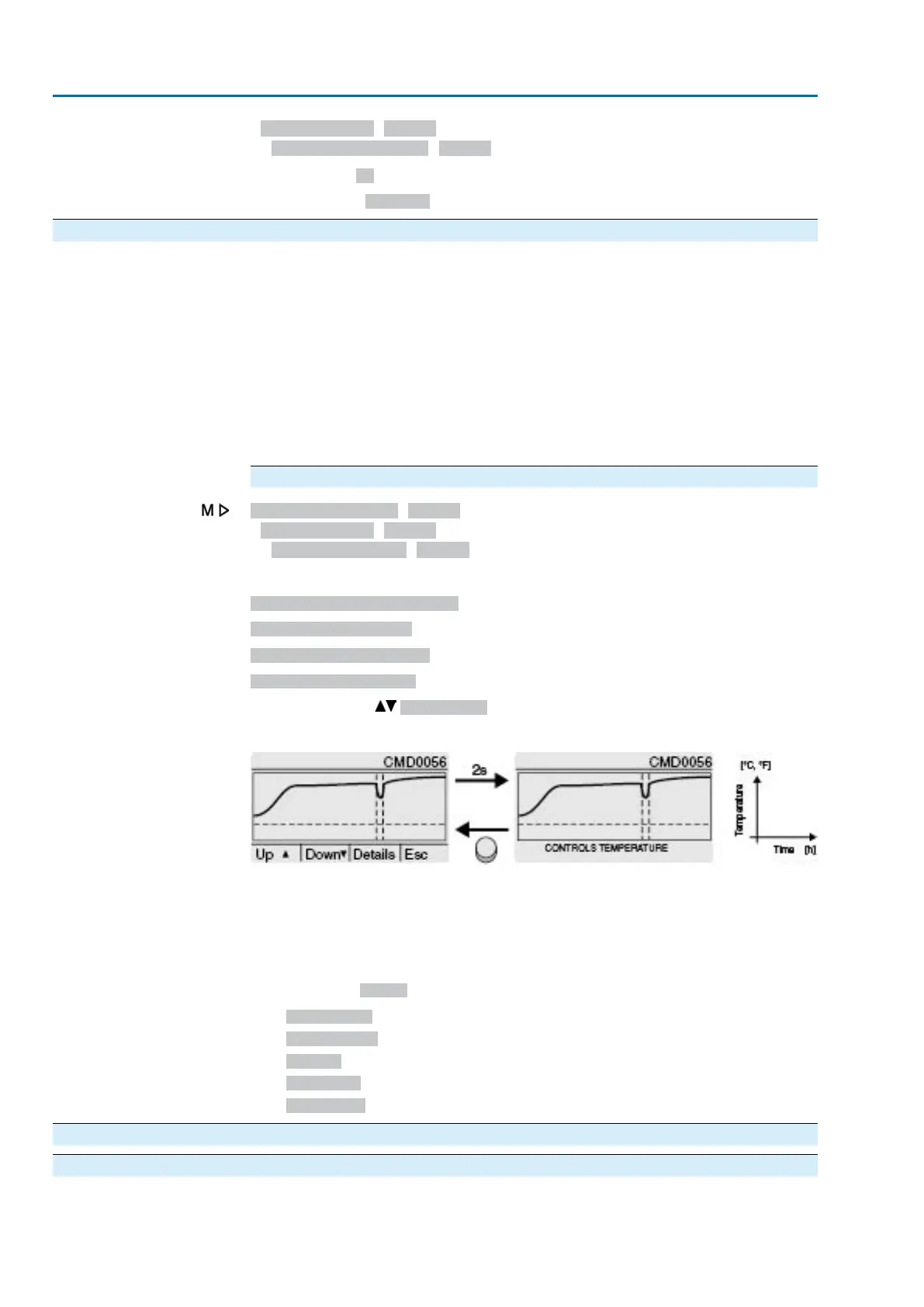

Figure 59: Example of temperature-time (within the control unit)
- - - 0° line
¦
Recording interrupted e.g. due to power failure
The actuator controls display shows temperature evolution during one week. AUMA
CDT software reads out the evolution during an entire year.
The following further information is saved with the characteristic (can be requested
via push button Details)
●
Saving date: Time of last temperature measurement
●
Starting date: Time of first temperature measurement
●
Scaling: Y-axis (temperature)
●
Min. value: Minimum measured value
●
Max. value: Maximum measured value
15.4. Histograms
15.4.1. Motor running time-position (histogram)
Conditions
●
Actuators of the type range SA 07.2 – SA 16.2/SAR 07.2 – SAR 16.2
130
Actuator controls
Asset Management AC 01.2/ACExC 01.2 Profinet
